555 Electric Bender
Parts List
Key Part No. Description Qty.
503 0374.0 Control box (includes 1,2,4,5,6 ................................ 1
10,12,19 and 20)
1 503 5411.6 Control module .........................................................1
*2 503 4140.5 Power module unit ................................................... 1
4 918 6386.4 Circuit breaker ..........................................................1
5 918 6387.2 Cord grip, Pyle Crouse Hinds #CGB-295 ................1
6 503 2407.1 Cord, power type So 12/3 with Plug ........................1
7 918 5209.9 Conduit, Sealtite, 14-3/4" long, ................................1
Anaconda #UA, 1/2" gray or black
8 918 5875.5 Connector, Appleton #ST-50, .................................. 1
Sealtite 1/2 straight
When ordering parts give
Serial No. of bender
Key Part No. Description Qty.
9 503 6370.0 Pendant switch unit ..................................................1
9A 918 6449.6 Switch, center OFF .................................................. 1
9B 503 1902.7 Handle, right half ......................................................1
9C 905 3441.7 Screw, #6 - 20 x .625 pan head, self-tapping .........3
9D 503 1901.9 Handle, left half ........................................................1
9E 503 6369.7 Cord ..........................................................................1
9F 503 5487.6 Decal, face plate ......................................................1
10 905 4272.0 Screw, #8 - 32 UNC x 5/8" long, .............................. 6
binding head machine
12 905 2531.0 Screw #10 - 32 UNF x 3/8" round head .................. 5
thread cutting
14 918 5884.4 Cord grip ...................................................................1
15 918 5876.3 1/2 Connector, Appleton #ST-9050 .........................1
19 503 3352.6 Control box shell without electronics or cover ........ 1
20 503 3601.0 Control box cover (not shown) ................................ 1
*NOTE: For replacement of power module unit on benders preceding S/N PL-20406-L, specify 503 3351.8 Power Module Replacement Unit.
Parts List

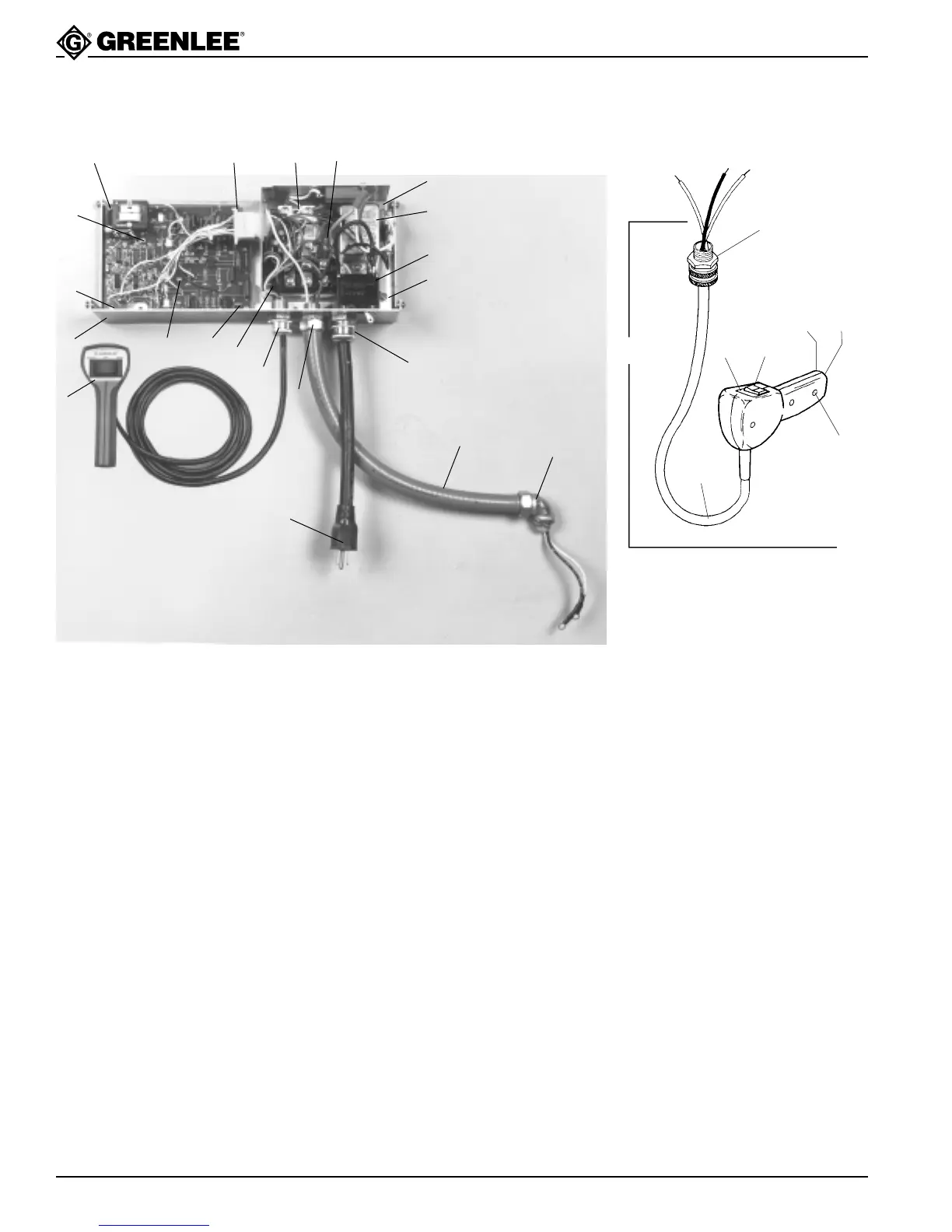

Solid-State Electrical Control Box (503 0374.0)
Solid State Electrical Control Box with
revised Pendant Switch Unit 503 6370.0.
(This switch unit used on benders starting
with S/N PL-32216-PGJ. Use this switch
unit complete to repair units starting with
S/N PL 8001 to PL-32215-PGJ.)
9
14
9F
9A
9D
9B
9C
9E
Note: This control used on all benders
starting with S/N PL 32215-PGJ.
9
6
15
12
12
12
12 12
7
5
4
2
8
14
19
10
10
10 10
10
10
