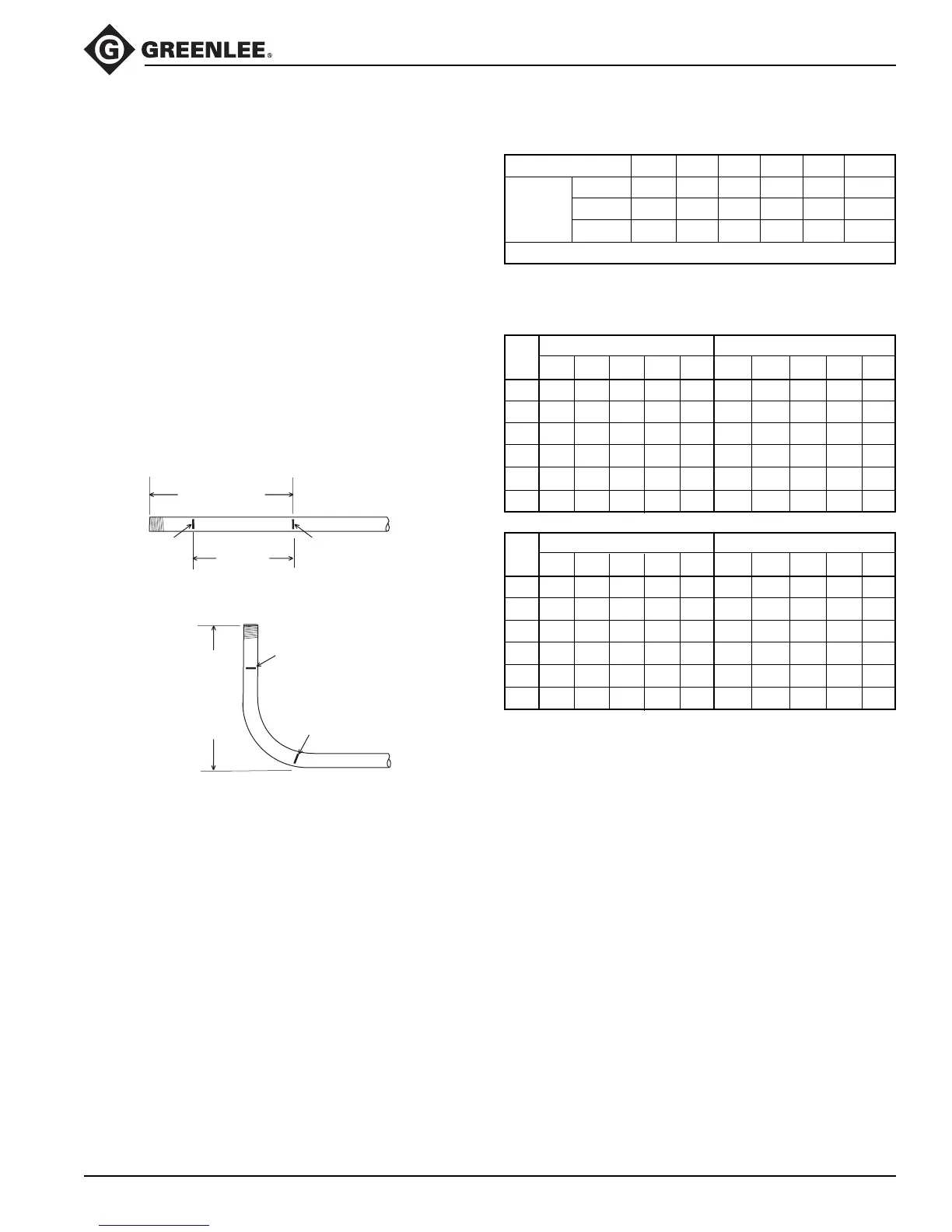

Greenlee / A Textron Company 13 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
555C Electric Bender Classic
Deduct Table
Scale Reading Table
SIZE 1/2 3/4 1 1-1/4 1-1/2 2
RIGID/PVC 7-1/2 9 11 14 14-1/4 16-1/8
DEDUCT EMT 7 8-7/8 10-3/4 13-1/8 13-7/8 15-3/8
IMC 7-1/2 9 11 14 13-3/4 15-1/4
MINIMUM STUB LENGTH = DEDUCT PLUS 2 INCHES
Figures are approximate
RIGID EMT
15° 30° 45° 60° 90° 15° 30° 45° 60° 90°
1/2 18-3/4 35 50 66-1/4 96-1/4 16-1/4 32-1/2 47-1/2 63-3/4 95
3/4 17-1/2 32-1/2 47-1/2 63-3/4 95 17-1/2 33-3/4 48-3/4 63-3/4 95
1 17-1/2 33-3/4 48-3/4 65 95 17-1/2 32-1/2 48-3/4 65 95
1-1/4 18-3/4 33-3/4 48-3/4 63-3/4 95 17-1/2 33-3/4 48-3/4 65 95
1-1/2 18-3/4 33-3/4 48-3/4 65 95 16-1/4 31-1/4 46-1/4 61-1/4 92-1/2
2 20 35 48-3/4 63-3/4 96-1/4 17-1/2 33-3/4 48-3/4 63-3/4 95
SIZE
IMC PVC-Coated
15° 30° 45° 60° 90° 15° 30° 45° 60° 90°
1/2 20 36-1/4 51-1/4 67-1/2 98-3/4 17-1/2 33-3/4 48-3/4 65 95
3/4 20 36-1/4 51-1/4 67-1/2 97-1/2 17-1/2 33-3/4 48-3/4 63-3/4 95
1 21-1/4 36-1/4 51-1/4 66-1/4 97-1/2 17-1/2 32-1/2 47-1/2 63-3/4 95
1-1/4 18-3/4 33-3/4 50 65 96-1/4 18-3/4 33-3/4 50 65 95
1-1/2 17-1/2 33-3/4 48-3/4 63-3/4 95 18-3/4 33-3/4 48-3/4 65 95
2 20 35 50 65 96-1/4 20 35 48-3/4 63-3/4 96-1/4
SIZE
Figures are approximate
Bending Instructions
90° STUBS
1. Measure the length of the required stub.
2. See the Minimum Stub Length formula on the
Deduct Table. The required stub must be equal to or
longer than the Minimum Stub Length.
3. Measure and mark the stub length on the conduit.
This is Mark 1. Subtract the Deduct from this mark
and make a new mark. This is Mark 2.
4. Align Mark 2 with the front edge of the hook and
bend the conduit.
Notes:
When the operator presses “UNLOAD”, the conduit may
spring back a few degrees. Compensate by overbending
as shown in the Scale Reading Table.
The rigid shoe can make a 180
°
bend in one shot.
All other shoes bend to 90
°
maximum.
STUB LENGTH
DEDUCT
MARK 2
MARK 2
MARK 1
MARK 1
STUB LENGTH
