555C Electric Bender Classic
Electronic Control Assembly — Part No. 50068890

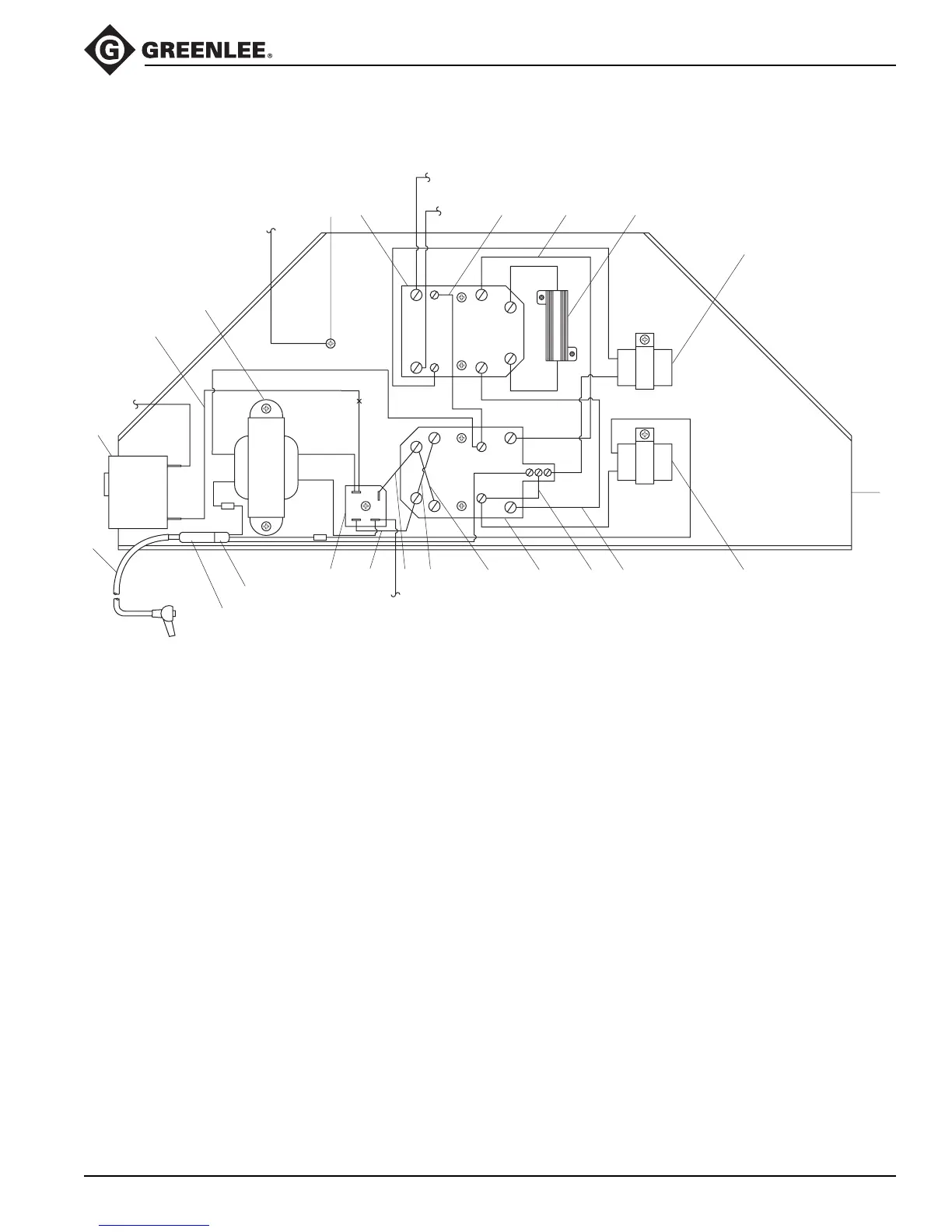

Schematic
Key Reference Part No. Description Qty
201 TD1 50069152 Timer assembly, 150 ms ON Delay .......................... 1
202 TD2 50069071 Timer assembly, 150 ms ON Delay .......................... 1
203 K1 91869668 Relay, power, DPDT (with switch) ............................ 1
204 K2 91869676 Relay, power, DPDT ................................................. 1
205 T1 50069080 Transformer assembly .............................................. 1
206 D1 91859972 Bridge rectifier ........................................................... 1
207 50068954 Bracket, electrical mounting ..................................... 1
208 50068962 Wire harness, 14 AWG ............................................. 2
209 50060341 Wire harness, 12 AWG (RED) .................................. 1
210 50060350 Wire harness, 12 AWG (BLK)................................... 1
211 50069160 Wire unit, BLK Rectifier ............................................ 1
212 50068989 Wire harness, 12 AWG (RED) .................................. 1
213 50068997 Wire harness, 12 AWG (BLK)................................... 1
214 50060481 Wire harness, 12 AWG (RED) .................................. 1
215 50060490 Wire harness, 12 AWG (BLK)................................... 1
216 50060511 Resistor unit with leads ............................................. 1
65 90543297 Screw, #8–32 x .37 ground....................................... 1
72 90537246 Washer, internal tooth lock ....................................... 1
81 50120620 Adapter with Molex Plug ........................................... 1
Control Assembly
211
202208214 203 213206
62
81
210
207
201
RED
RED
RED
BLK
BLK
BLK
WHT
BLK
BLK
BLK
GRN
GRN
COMNONC
GRN
–HV
+HV
AC
AC
LINE
LOAD
White from
Power Cord (61)
Molex Plug
to Connect Pendant
to Control Assembly
Black from
Power Cord
(61)
Green from
Power Cord (61)
72
65
White from
Motor (25)
Black from
Motor (25)
215209
216208204 212
205
41
