555C Electric Bender Classic
Bending Shoes and Roller Supports (cont’d)

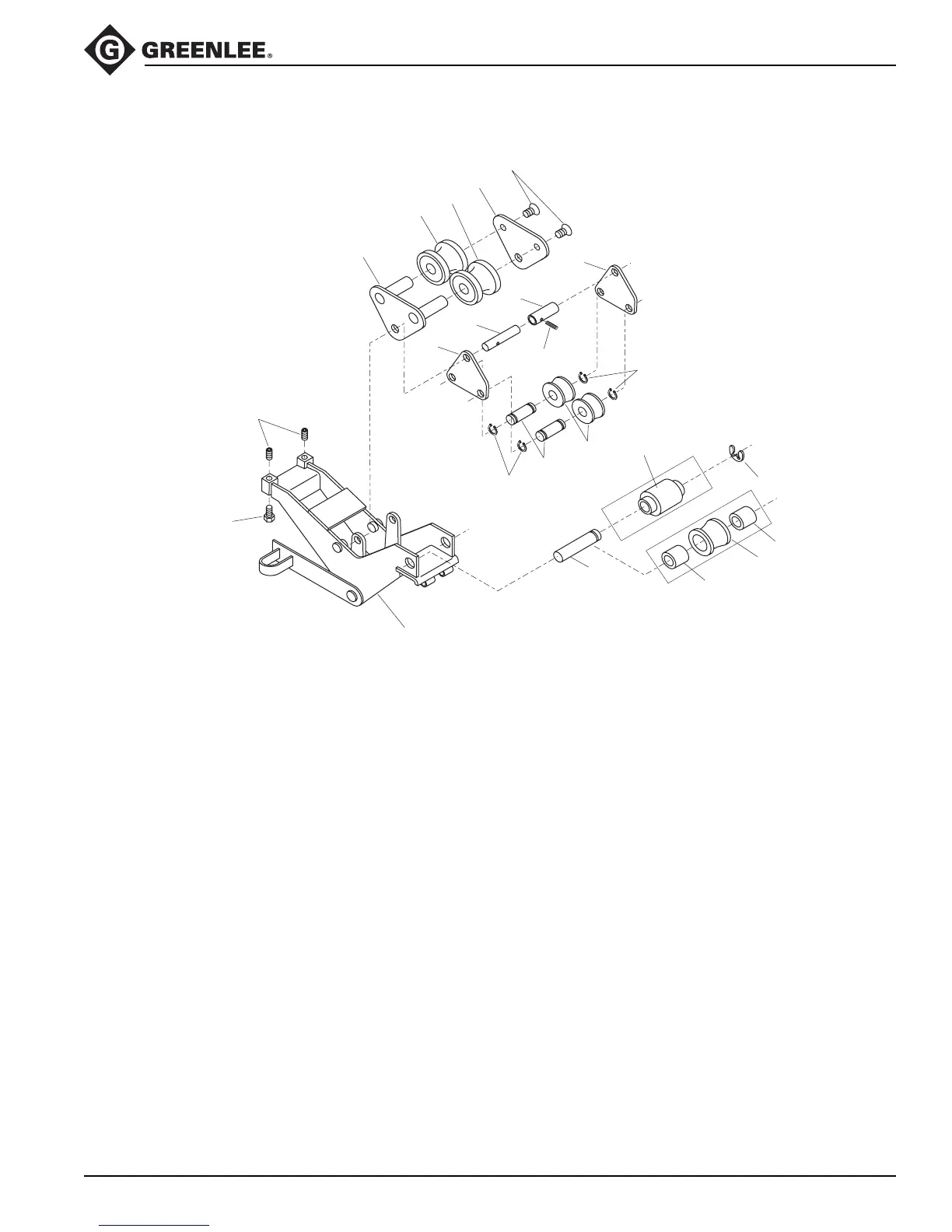

EMT Roller Support Unit
Key Part No. Description Qty
50235419 Support unit, 1-1/2" and 2" EMT roller
(includes all of the following) ............................. 1
1A 50279831 Roller unit, cushioned ....................................... 1
4 50235397 Frame unit ......................................................... 1
5 50235109 Roller, 1-1/2" EMT ............................................ 2
6 50235117 Pin, roller support .............................................. 1
7 50239325 Pin, 1-1/2" EMT roller ........................................ 2
8 50235176 Pin, roller pivot .................................................. 1
10 50235249 Plate, 1-1/2" EMT pivot ..................................... 2
11 50237934 Spacer ............................................................... 1
12 90515285 Ring, retaining ................................................... 4
13 90524640 Ring, Tru-Arc #X5133-98
external series “E” retaining .............................. 1
14 90514912 Rollpin, #59, -040-187-1250 ............................. 1
15 90528484 Screw, 1/2–13 UNC x 3/4
cup point socket set .......................................... 2
16 90505425 Screw, 1/2–13 UNC x 1, hex head cap ............. 2
17 50349643 Support weldment, 2" roller ............................... 1
18 50349651 Plate, 2" inner roller support ............................. 1
19 50235192 Roller, 2" EMT front .......................................... 1
20 50237926 Roller, 2" EMT back .......................................... 1
21* 90533941 Screw, 7/16–14 UNC x 1, flat head ................... 2
IMC Roller Support Unit
Key Part No. Description Qty
50252739 Support unit, 1-1/2" and 2" IMC roller
(includes items 1 and 2) .................................... 1
1B 50283340 Roller ................................................................. 1
2 50283359 Spacer ............................................................... 2
4 50263250 Frame unit ......................................................... 1
5 50252747 Roller, 1-1/2" IMC ............................................. 2
6 50235117 Pin, roller support .............................................. 1
7 50239325 Pin, 1-1/2" IMC roller ......................................... 2
8 50235176 Pin, roller pivot .................................................. 1
10 50235249 Plate, 1-1/2" IMC pivot ...................................... 2
11 50237934 Spacer ............................................................... 1
12 90515285 Ring, retaining ................................................... 4
13 90524640 Ring, Tru-Arc #X5133-98
external series “E” retaining .............................. 1
14 90514912 Rollpin, #59, -040-187-1250 ............................. 1
15 90528484 Screw, 1/2–13 UNC x 3/4
cup point socket set .......................................... 2
16 90505425 Screw, 1/2–13 UNC x 1, hex head cap ............. 2
17 50349643 Support weldment, 2" roller ............................... 1
18 50349651 Plate, 2" inner roller support ............................. 1
19 50252798 Roller, 2" IMC .................................................... 2
21* 90533941 Screw, 7/16–14 UNC x 1, flat head ................... 2
EMT
IMC
18
19
17
10
8
11
10
14
5
1A
13
2
1B
6
4
16
15
2
12
20
21*
7
12
*Key No. 21 must be torqued to 54 to 61 Newton-meters (40 to 45 ft-lb).
