Greenlee 555C - Bending Shoe and Roller Support Details; Conduit-Specific Shoe Assemblies

Greenlee / A Textron Company 36 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
555C Electric Bender Classic

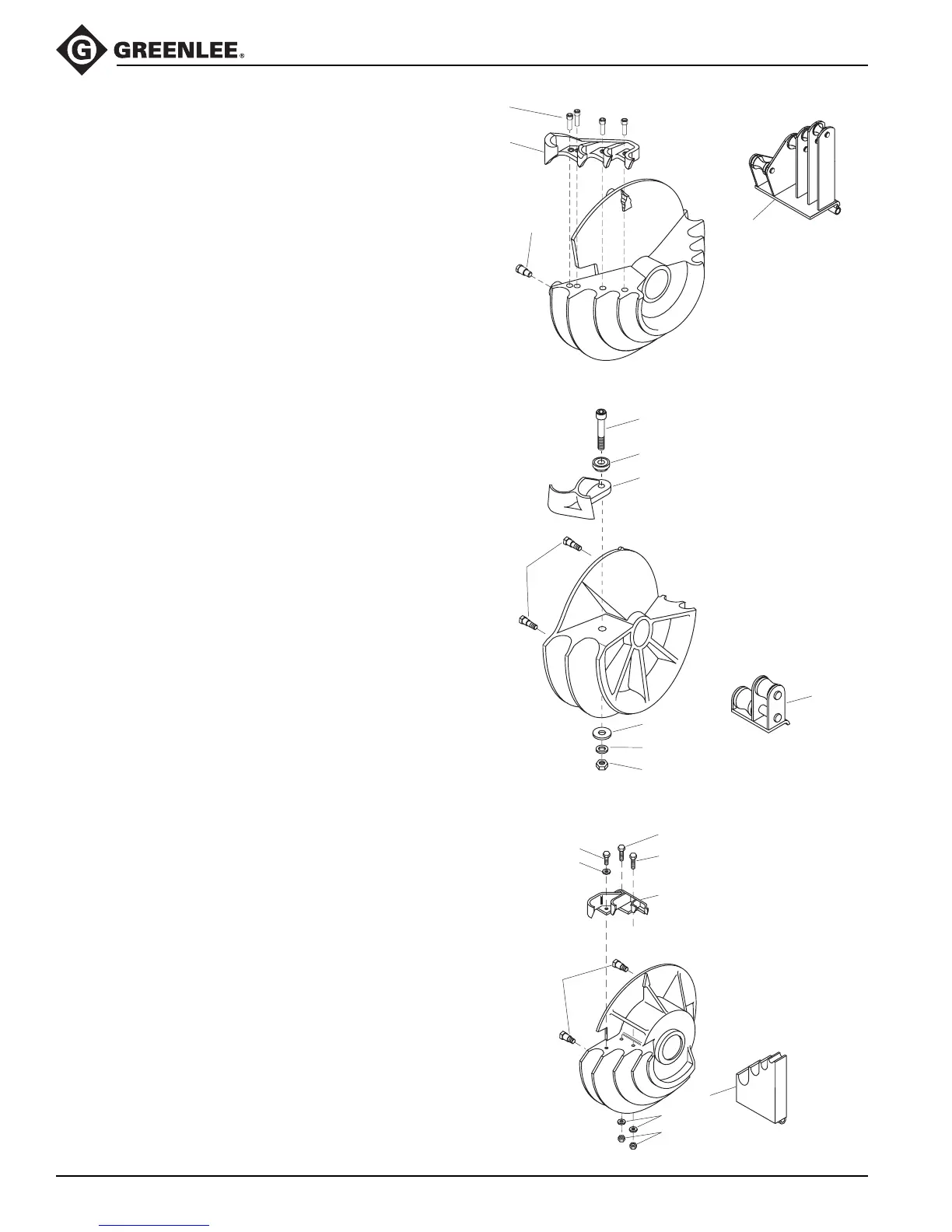

Bending Shoes and Roller Supports
Bending Shoe and Roller Support
1/2" to 1-1/4" IMC and Rigid Conduit
Key Part No. Description Qty
1 50009362 Roller support, 1/2" to 1-1/4" IMC and rigid ...... 1
50005715 Bending shoe assembly (includes items 2–4) ... 1
2 50005693 Hook .................................................................. 1
3 90510887 Screw, 3/8–16 UNC x 1-1/4" socket head cap .. 4
4 50234226 Stud, drive ......................................................... 3
Shoe not available separately.
Bending Shoe and Roller Support
1-1/2" to 2" Rigid Conduit
Key Part No. Description Qty
1 50179845 Roller support, 1-1/2" to 2" rigid conduit ........... 1
50179373 Bending shoe assembly,
1-1/2" to 2" rigid conduit (includes items 2–8) ..... 1
2 50179691 Pipe hook .......................................................... 1
3 50179748 Pivot .................................................................. 1
4 90526759 Washer, 5/8 flat ................................................. 1
5 90515692 Nut, 5/8–11 UNC hex ........................................ 1
6 90509056 Lock washer, 5/8 split ....................................... 1
7 90524268 Screw, 5/8–11 UNC x 4" socket head cap ........ 1
8 50234226 Stud, drive ......................................................... 4
Shoe not available separately.
Bending Shoe and Pipe Rest
1/2" to 1-1/4" EMT Conduit
Key Part No. Description Qty
1 50179861 Pipe rest assembly for
1/2" to 1-1/4" EMT conduit ................................ 1
50179446 Bending shoe assembly for
1/2" to 2-1/4" EMT conduit
(includes items 2–8) .......................................... 1
2 90505972 Screw, 3/8–16 UNC x 1" socket head cap ........ 1
3 90505069 Lock washer, 3/8 split ....................................... 3
4 50245554 Pipe hook .......................................................... 1
5 50234226 Stud, drive ......................................................... 4
6 90506391 Nut, 3/8–16 UNC hex, cad.-plated .................... 2
7 90505328 Screw, 3/8–16 UNC x 1-1/4 SAE grade 5
socket head cap ................................................ 1
8 90510887 Screw, 3/8–16 UNC x 1-1/4 socket head .......... 1
Shoe not available separately.
3
2
4
1
8
4
6
5
1
2
3
7
8
4
7
2
3
5
1
3
6
