555C Electric Bender Classic

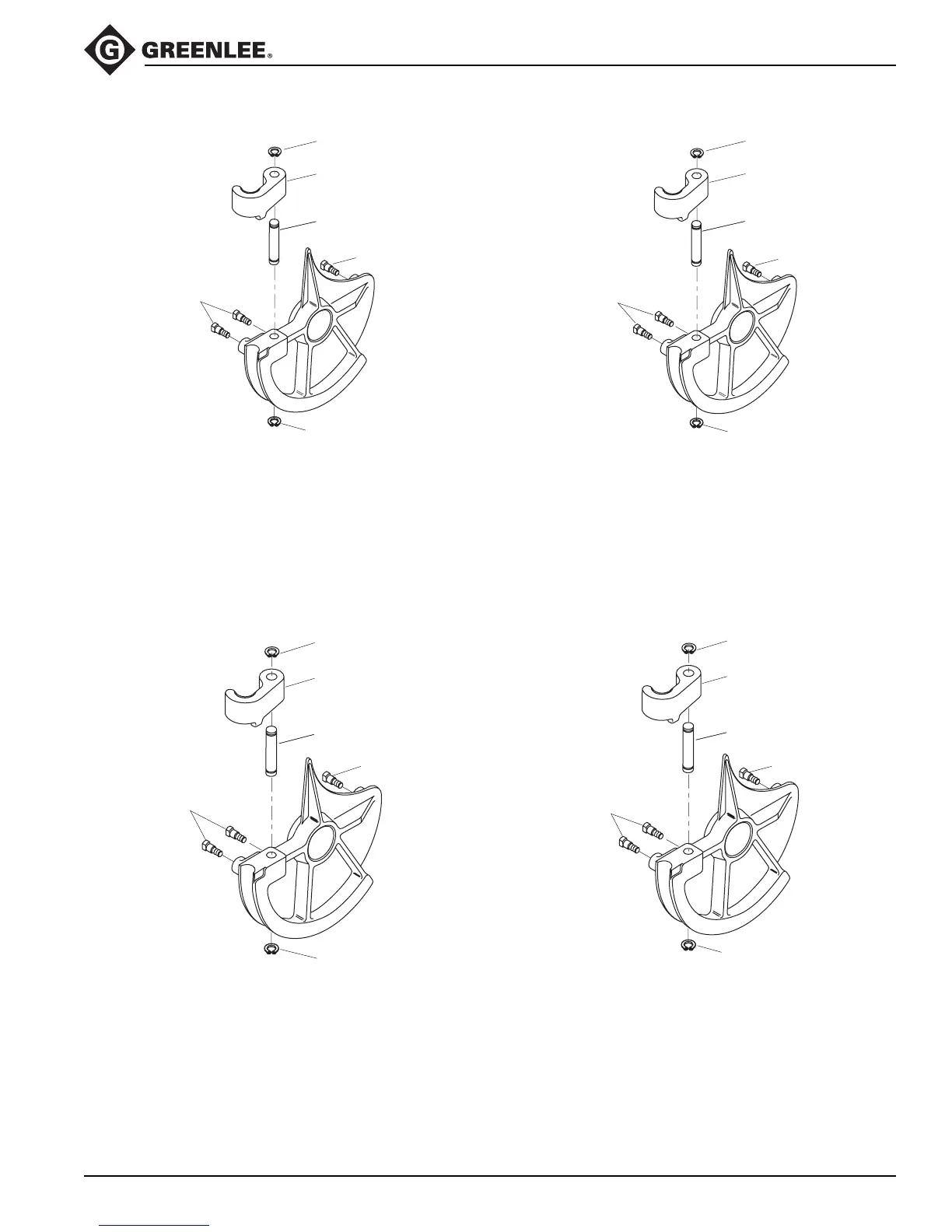

Bending Shoes and Roller Supports (cont’d)
Bending Shoe
1-1/2" IMC Conduit
Key Part No. Description Qty
50253631 Shoe unit, 1-1/2" IMC (includes items 1–4) ...... 1
1 50188119 Hook, 1-1/2" IMC .............................................. 1
2 50188372 Pin, 1-1/2" IMC .................................................. 1
3 50234226 Stud, drive ......................................................... 3
4 90515285 Ring, Tru-Arc retaining ...................................... 2
Bending Shoe
2" EMT Conduit
Key Part No. Description Qty
50235052 Shoe unit, 2" EMT conduit
(includes items 1–4) .......................................... 1
1 50188186 Hook, 2" EMT .................................................... 1
2 50188429 Pin, 2" EMT hook .............................................. 1
3 50234226 Stud, drive ......................................................... 3
4 90515293 Ring, Tru-Arc #5160-87, retaining ..................... 2
Bending Shoe
1-1/2" EMT Conduit
Key Part No. Description Qty
50234994 Shoe unit, 1-1/2" EMT (includes items 1–4) ..... 1
1 50188208 Hook, 1-1/2" EMT ............................................. 1
2 50188410 Pin, 1-1/2" EMT hook ........................................ 1
3 50234226 Stud, drive ......................................................... 3
4 90515293 Ring, Tru-Arc #5160-87 retaining ...................... 2
Bending Shoe
2" IMC Conduit
Key Part No. Description Qty
50252682 Shoe unit, 2" IMC
(includes items 1–4) .......................................... 1
1 50001957 Hook, 2" IMC ..................................................... 1
2 50188429 Pin, 2" IMC ........................................................ 1
3 50234226 Stud, drive ......................................................... 3
4 90515293 Ring, Tru-Arc retaining ...................................... 2
