555C Electric Bender Classic
Bending Shoes and Roller Supports (cont’d)

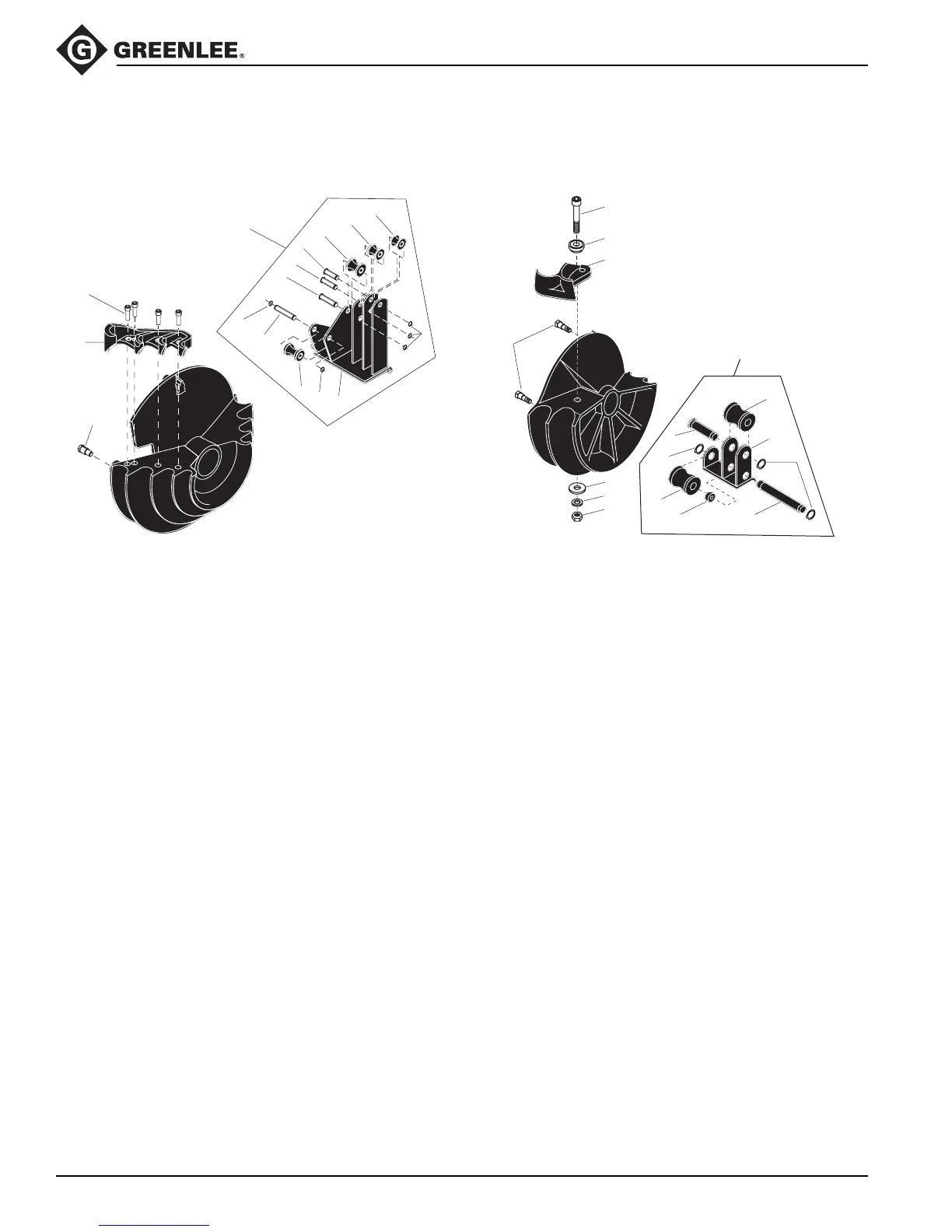

Bending Shoe and Roller Support
1/2" to 1-1/4" 40 Mil PVC-Coated Rigid Conduit
Key Part No. Description Qty
1 50009460 Roller support, 1/2" to 1-1/4"
PVC-coated rigid (includes items 5–14)............ 1
50005731 Bending shoe assembly,
1/2" to 1-1/4" PVC-coated rigid
(includes items 2–4) .......................................... 1
2 50005707 Hook .................................................................. 1
3 90510887 3/8–16 UNC x 1-1/4"
Socket head cap screw ..................................... 4
4 50234226 Stud, drive ......................................................... 3
5 50009451 Support weldment, roller ................................... 1
6 90513533 Retaining ring .................................................... 5
7 50009230 1/2" Roller axle .................................................. 1
8 50009249 3/4" Roller axle .................................................. 1
9 50009257 1" Roller axle ..................................................... 1
10 50009265 1-1/4" Roller axle .............................................. 1
11 50009273 1/2" Roller ......................................................... 1
12 50009281 3/4" Roller ......................................................... 1
13 50009290 1" Roller ............................................................ 1
14 50009303 1-1/4" Roller ...................................................... 1
3
2
4
14
5
10
6
6
6
9
8
7
13
12
11
1
8
4
6
5
2
3
7
1
13
15
10
11
14
12
9
11
Bending Shoe and Roller Support
1-1/2" to 2" 40 Mil PVC-Coated Rigid Conduit
Key Part No. Description Qty
1 50372823 Roller support, 1-1/2" to 2"
PVC-coated rigid (includes items 9–15)............ 1
50372815 Bending shoe assembly,
1-1/2" to 2" PVC (includes items 2–8) ............... 1
2 50024990 Hook .................................................................. 1
3 50179748 Pivot .................................................................. 1
4 90526759 5/8" Flat washer ................................................ 1
5 90515692 5/8–11 UNC Hex nut ......................................... 1
6 90509056 5/8" Lock washer .............................................. 1
7 90524268 5/8–11 UNC x 4" Socket head cap screw ......... 1
8 50234226 Stud, drive ......................................................... 4
9 50376624 1-1/2" Shaft ....................................................... 1
10 50376616 2" Shaft ............................................................. 1
11 90515285 Retaining ring .................................................... 3
12 50372840 1-1/2" Roller ...................................................... 1
13 50372831 2" Roller ............................................................ 1
14 50376640 Support weldment ............................................. 1
15 50320254 Spacer ............................................................... 1
