Greenlee / A Textron Company 33 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
555C Electric Bender Classic

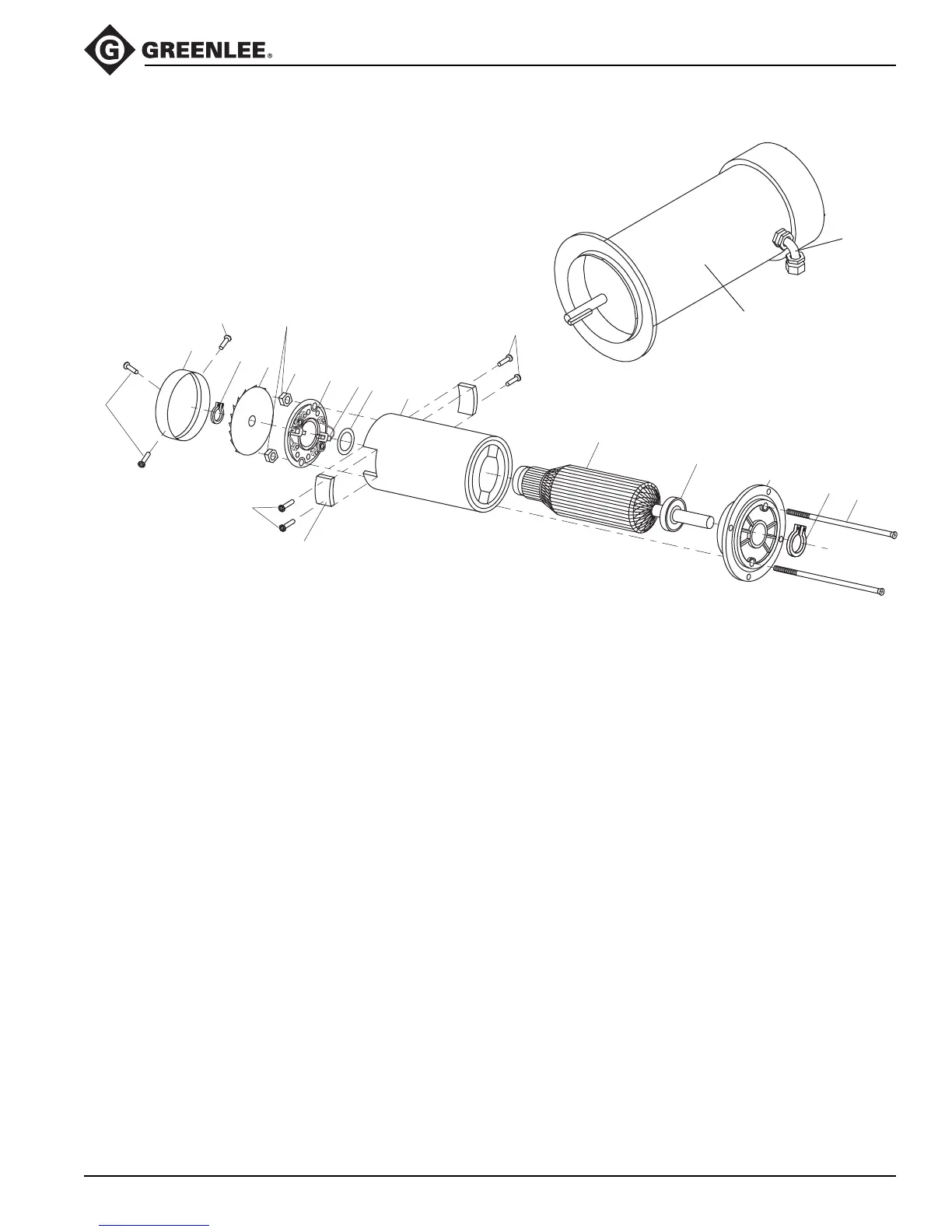

Exploded View and Parts List — 115 Volt Motor
102
109
110
111
114
113
112
103
104
105
107
108
116
117
106
Torque to
9 Newton-meters
(80 in-lb)
117
117
117
115
101
Pacific Scientific
Key Part No. Description Qty
101 91869730 Motor (SRF-3648-5532-7-56C) ......................................................... 1
* 91864178 Motor, 115 Volt (standard) (SRF-3745-4676-2-56C)......................... 1
102 91864712 Fan cover .......................................................................................... 1
103 90550714 Retaining ring .................................................................................... 1
104 91864321 Fan .................................................................................................... 1
105 91864283 End bell nut ....................................................................................... 2
106 91864194 Bell, rear end ..................................................................................... 1
107 91864208 Brush ................................................................................................. 2
108 91864224 Thrust washer.................................................................................... 1
109 91869757 Shell and magnet assembly .............................................................. 1
* 91864275 Shell and magnet assembly, 115V .................................................... 1
110 91869749 Armature............................................................................................ 1
* 91864259 Armature, 115V ................................................................................. 1
111 91864216 Bearing kit ......................................................................................... 2
112 91864186 Bell, front end .................................................................................... 1
113 91864240 Retaining ring .................................................................................... 1
114 91864267 Tie bolt, 115V .................................................................................... 2
115 91858763 90° Connector ................................................................................... 1
116 91864305 Brush cover ....................................................................................... 2
117 91864313 Cover screw ...................................................................................... 7
*Note: Alternate motor
Check motor part number before ordering magnet shell or armature.
