Greenlee 854 - Offset Bending Techniques; Offset Bend Procedures

854 Quad Bender
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
13
Offsets
1. Measure the height and length of the
obstruction. Select the angle to be used.
2. Refer to the X Table for the X dimension,
and refer to the Offset Table for the center-
to-center distance.
Note: If the center-to-center distance is
not shown, calculate it by using the multi-
pliers shown in the Offset Table.

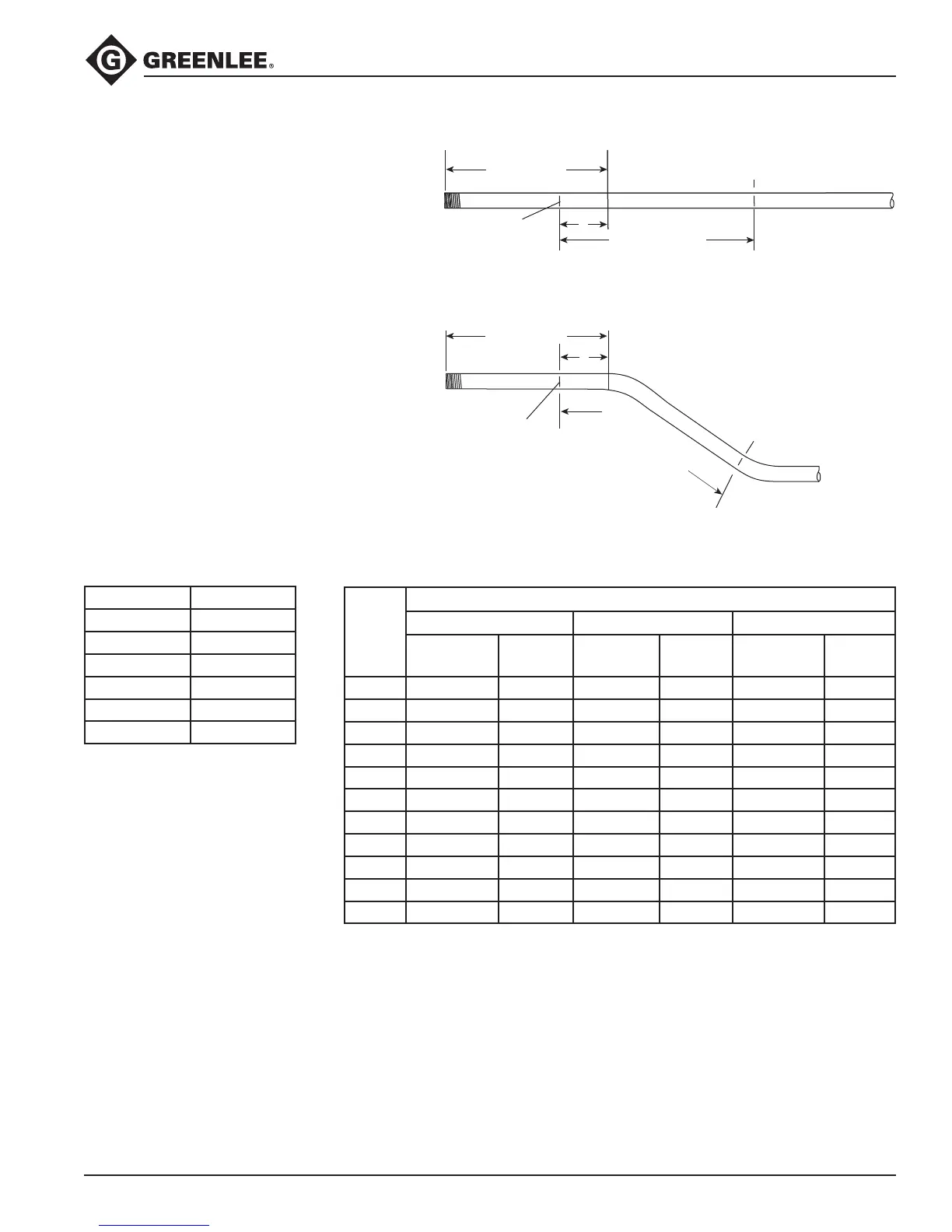

3. Mark the conduit as shown.
4. Insert the conduit into the bender. Align
Bending Mark 1 with the front edge of the
hook and bend the conduit.
5. Without removing the conduit from the
bender, align Bending Mark 2 with the front
edge of the hook and rotate the conduit
180°. Make the second bend.
Bending Instructions (cont’d)
C
E
N
T
E
R
T
O
C
E
N
T
E
R
BENDING
MARK 1
BENDING
MARK 1
BENDING
MARK 2
BENDING
MARK 2
START OF BEND
START OF BEND
CENTER TO CENTER
X
X
Conduit Size X
1/2" 2-1/2
3/4" 3-1/16
1" 3-1/16
1-1/4" 4
1-1/2" 4-3/4
2" 4-3/4
Offset
Finished Angle
15° 30° 45°
Maximum
Conduit Size
Center-
to-Center
Maximum
Conduit Size
Center-
to-center
Maximum
Conduit Size
Center-
to-Center
2 3/4 7-3/4
4 1-1/2 15-7/16 3/4 7-15/16
6 2 23-3/16 1 11-15/16 1/2 8-5/16
8 2 30-7/8 1-1/2 15-15/16 1 11-1/16
10 2 38-5/8 2 19-15/16 1-1/4 13-13/16
12 2 46-3/8 2 23-15/16 1-1/2 16-5/8
14 2 54-1/16 2 27-15/16 2 19-7/16
16 2 61-13/16 2 31-15/16 2 22-1/4
18 2 69-9/16 2 35-15/16 2 25-1/16
20 2 77-1/4 2 39-15/16 2 27-15/16
22 2 85 2 43-15/16 2 30-3/4
X Table Offset Table
