Greenlee 854 - Machine Identification and Specifications

854 Quad Bender
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
Identification
Specifications
Height .....................................................................................................1200 mm (47")
Width .....................................................................................................724 mm (28.5")
Depth .....................................................................................................902 mm (35.5")
Mass/Weight (bender without shoes or roller supports) .........................231 kg (510 lb)
Power Supply ............................................... 120 VAC, 20 amp GFCI-protected circuit
Operating Conditions
Temperature (required) .............................................. 0 °C to 49 °C (32 °F to 120 °F)
Relative Humidity ........................................................................................0 to 98%
Capacity ........................................................ 1/2" to 2" conduit and schedule 40 pipe

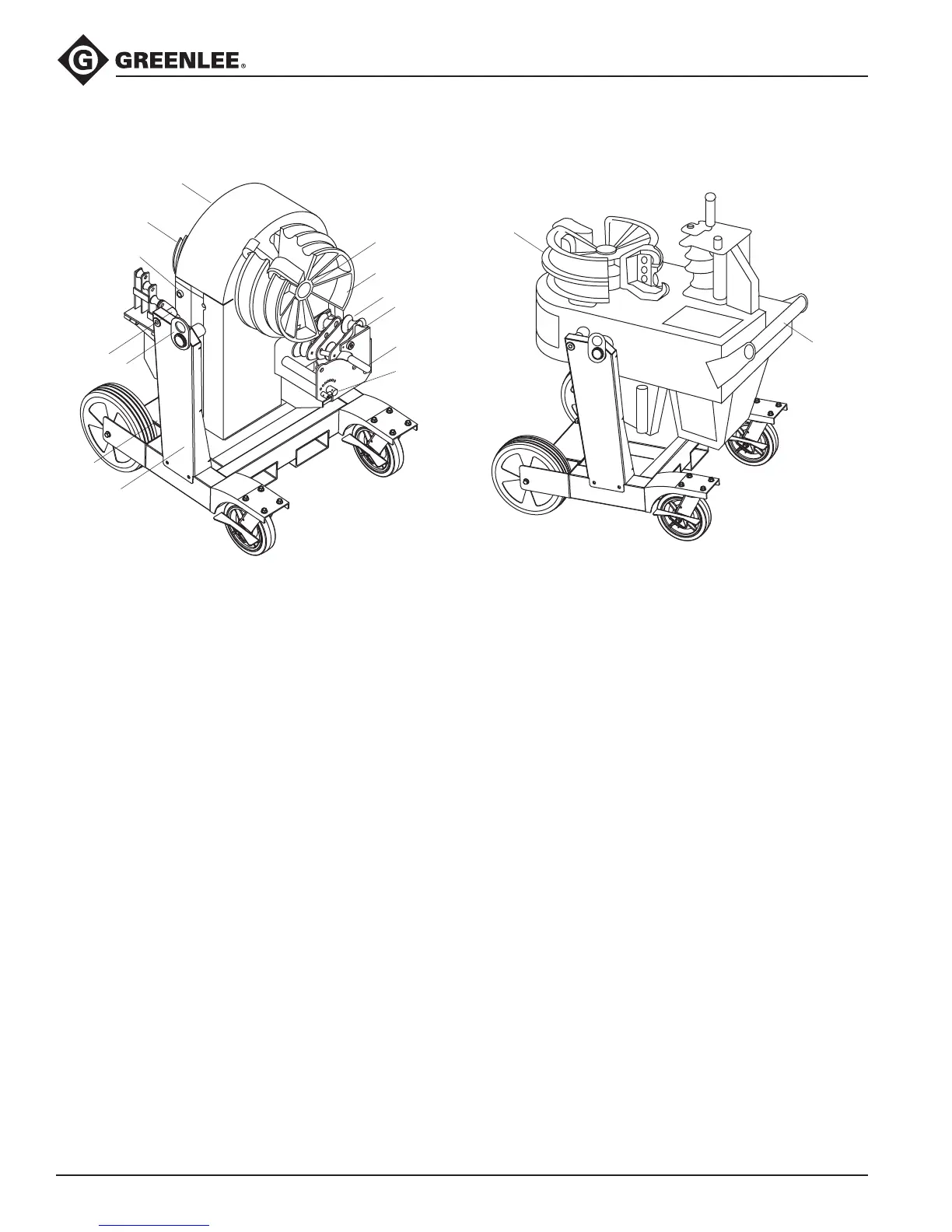

854 Conduit Bender
1. Bender Power Head
2. 1/2" to 1-1/4" Bending Shoe
3. On/Off Switch and Circuit Breaker
4. Bender Head Pivot Lock Knob
5. Lifting Eyes
6. Lockable Storage Area
7. Support Frame
8. Support Roller Squeeze Adjustment
9. Support Roller Engagement Handle
10. Roller Support Retention Cam
11. 1-1/2" to 2" Roller Support System
12. 1-1/2" to 2" Bending Shoe
13. Shoe Retaining Lock Ring
14. Transport Handle
