Greenlee Quick Draw Series - Identification and Specifications; Tool Identification; Quick Draw Flex Specifications; Quick Draw Specifications

Greenlee Tools, Inc.
6
Quick Draw
®
Hydraulic Knockout Drivers
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
1
2
3

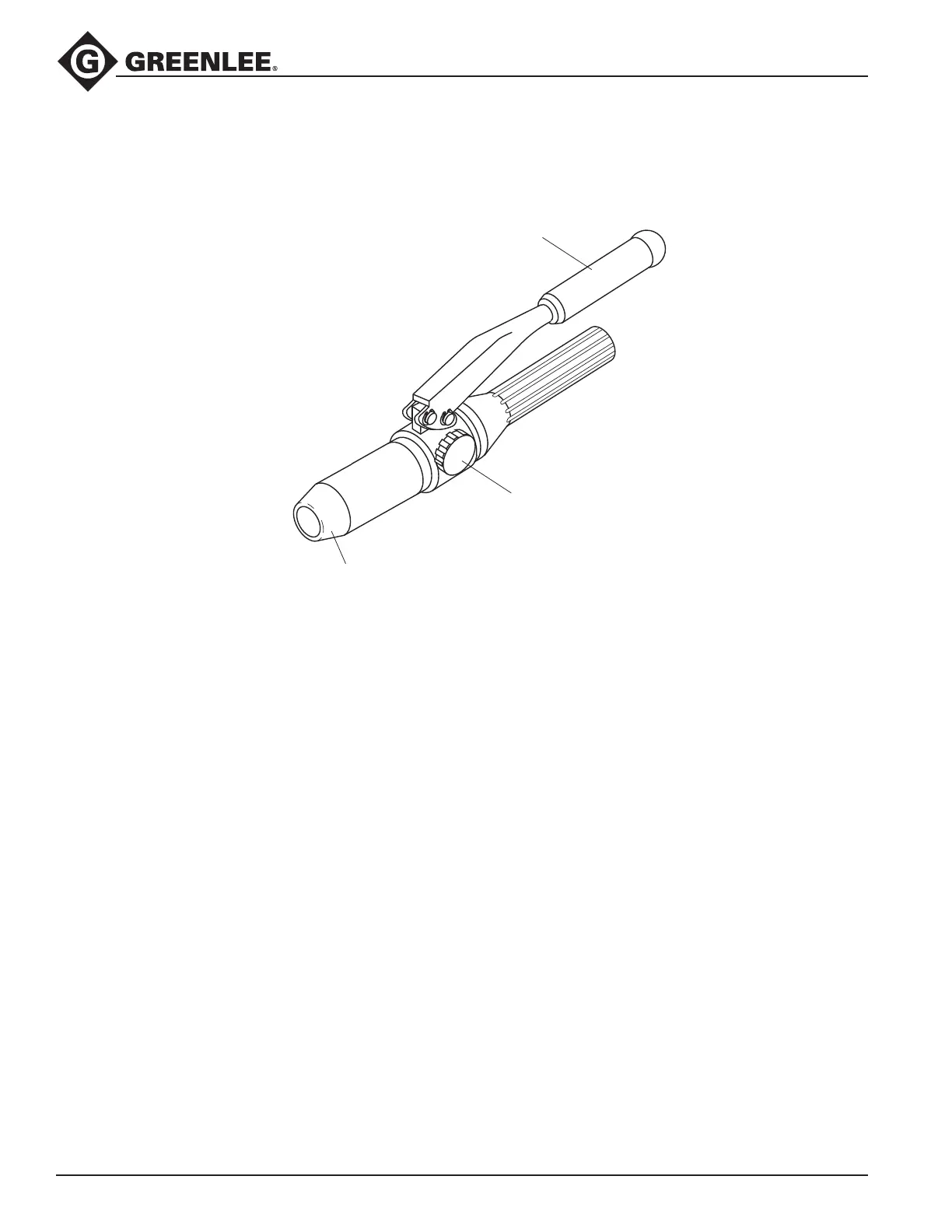

Identification and Illustration
1. Pump lever
2. Release valve knob
3. Ram
Specifications
Quick Draw Flex
Length
Without Drawstud .......................................................................................................................406 mm (16.00")
Width (with handle extended) ...........................................................................................................260 mm (10.25")
Mass/Weight ......................................................................................................................................2.60 kg (5.75 lb)
Quick Draw
Length
Without Drawstud .....................................................................................................................321 mm (12.625")
Width (with handle extended) ...........................................................................................................260 mm (10.25")
Mass/Weight ........................................................................................................................................2.49 kg (5.5 lb)
Quick Draw 90
Overall Length ................................................................................................................................. 324 mm (12.75")
Mass/Weight ........................................................................................................................................3.4 kg (7.4 lb)
Miscellaneous
Overall Temperature ................................................................................................. –12 ˚C to 43 ˚C (10 ˚F to 110 ˚F)
Operating Position ............................................................................................................................. No restrictions
Quick Draw
®
shown
