GreenMech CHIPMASTER 220 - Diesel Engine Maintenance

CM220 Chipper 6. MAINTENANCE 6-2
©GreenMechLtd 6-2 08/17
DIESEL ENGINE MAINTENANCE REFER TO ENGINE MANUAL
Tyre pressure 6bar (87 lb/in
2
)
Recommended lubricants Specification
Hydraulic Oil ISO 32
Grease Complex grease EP2 (high temperature)
Engine SAE 15W-40 APICD
6.1 Lubrication Points (see 6.16)
Grease except where stated
6.1.1 Drawbar 2 nipples
6.1.2 Top Feed roller pivot 1 nipple
6.1.3 Top Feed roller bearing 1 nipple
6.1.4 Chipper Flywheel bearings 1 nipple inside chipper chamber
6.1.5 Chipper Flywheel labyrinth seal 1 nipple inside chipper chamber
6.1.6 Infeed chute hinges Oil
6.1.7 Control bar valve mechanism Clean and grease
6.1.8 Clutch lever 1 nipple
6.1.9 Bottom feed roller bearing 1 nipple
Note. Do not overgrease bearings as damage to seals may occur
Note: Use high temperature grease on chipper flywheel bearings

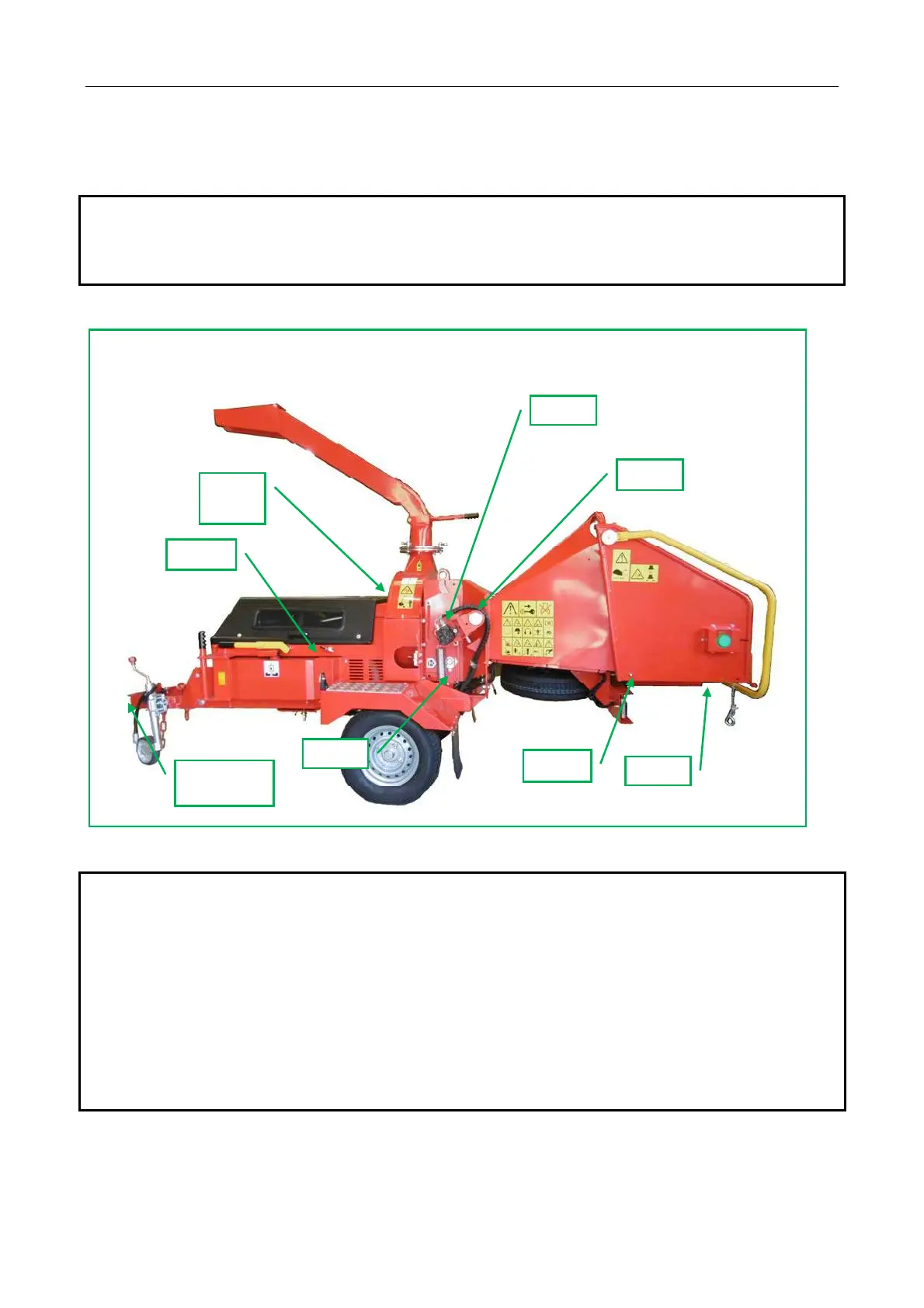

Fig 6.1 Lubrication Points
6.1.1
Not shown
6.1.2
6.1.3
6.1.4
6.1.5
6.1.8
6.1.6
6.1.7
6.1.9
