GETTING STARTED
CAMERA TRAY

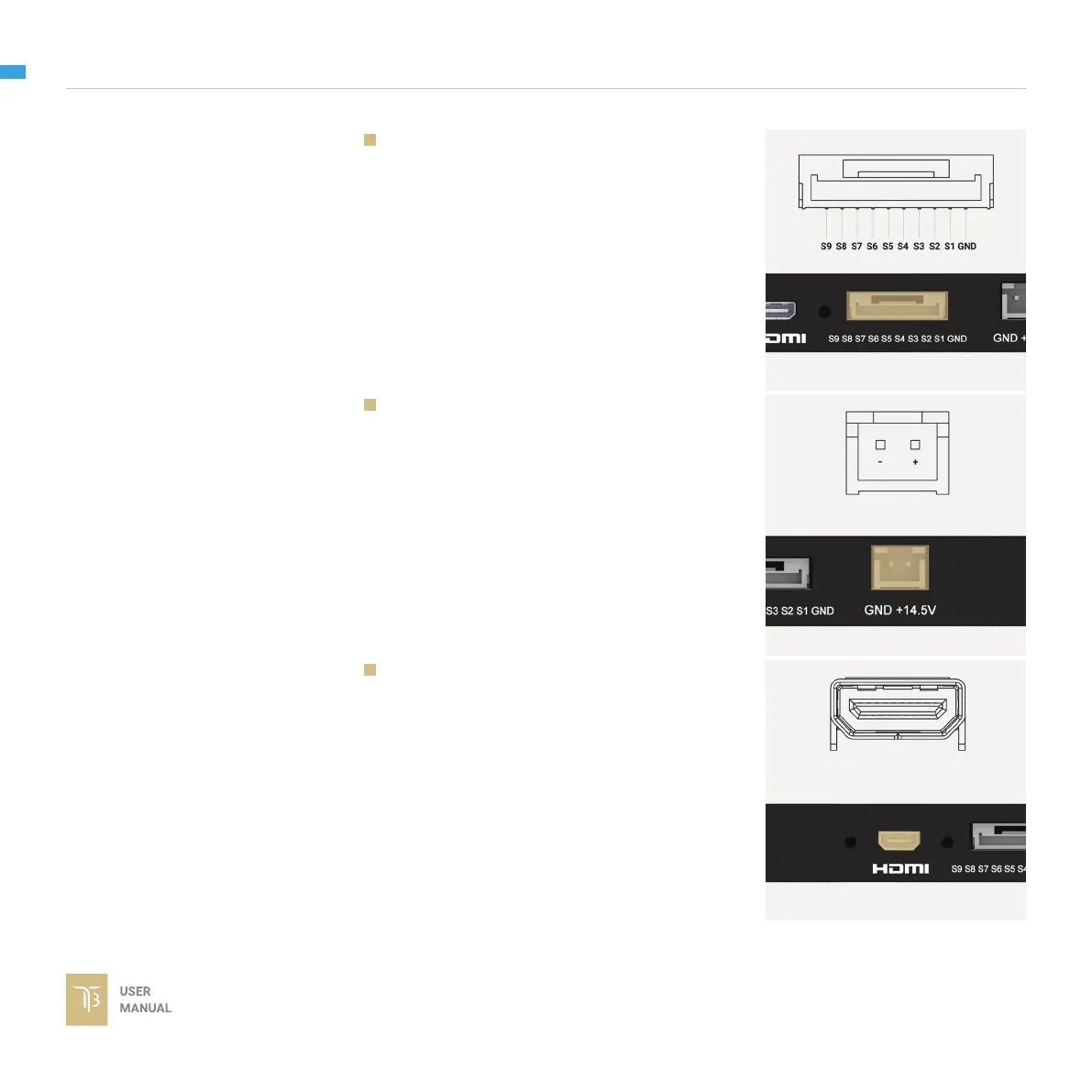

CONNECTOR & PINOUT
AUX: There are S1, S2, S3,...,S8,S9
optional signal (0.25A max) for users to
connect to other devices such as AV signal
or camera trigger...This port is internally
connected to AUX port on the Hyper Quick
Release.
Connector type: JST SM10B-ZESS-TB
PWT: 14.5V 2A output for camera and
accessories.
Connector type: JST S2B-XH-A(LF)
HDMI: HDMI video input from the camera.
Connector type: Micro HDMI
