GETTING STARTED
GREMSY T7 I/O
CONNECTORS
HYPER QUICK RELEASE

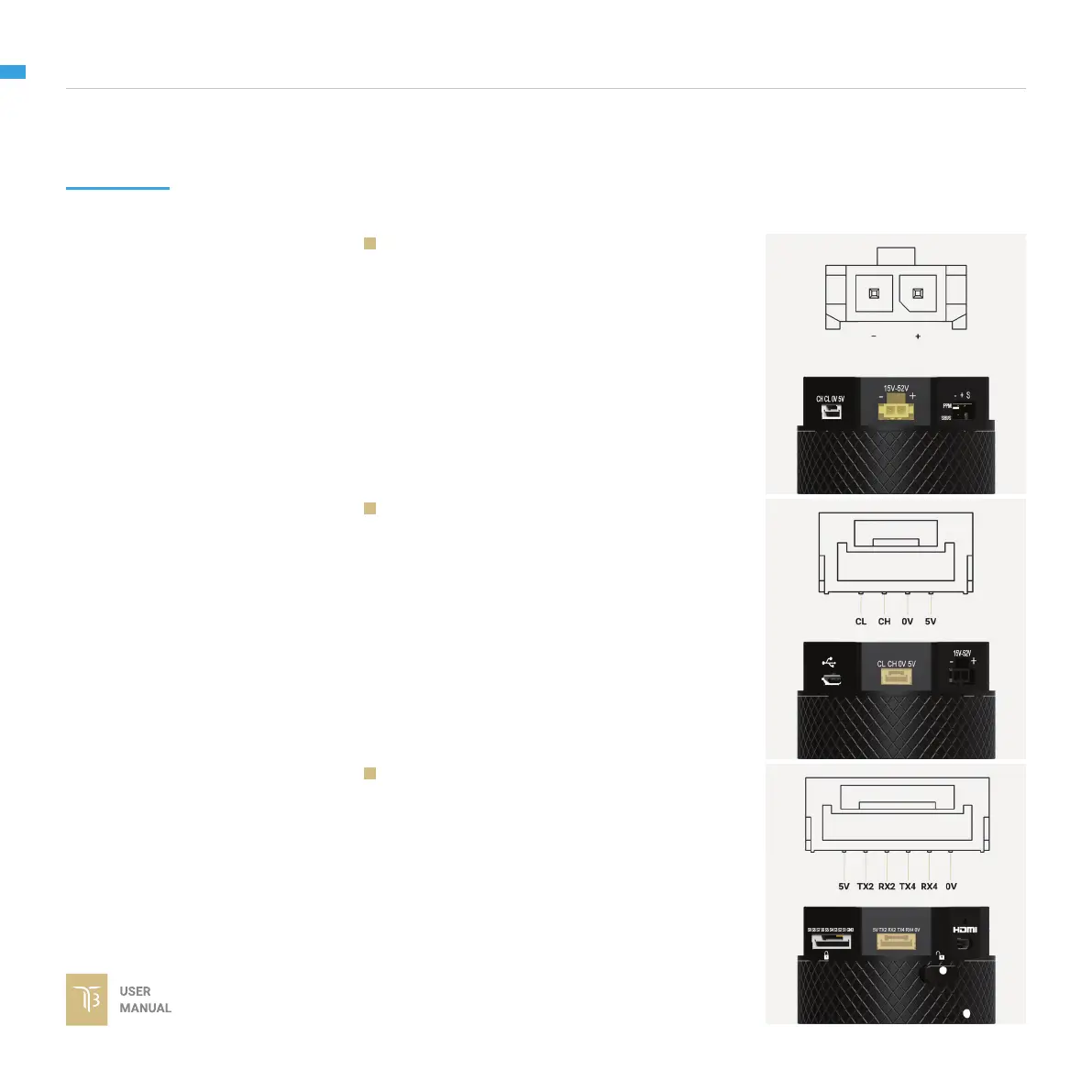

CONNECTORS & PINOUTS
POWER: to get power directly from
external batteries of the drone or other
power supply. Voltage input range from 15V
to 52V and is down converted to a stable
14.5V by the internal circuit to provide power
to gimbal and accessories.
Connector type: Molex Microt 3.0 2 pin
CAN: to interface with CAN bus on DJI
Flight controller or another module that uses
CAN bus.
Connector type: JST SM04B-ZESS-TB
COM2/COM4: to interface with Pixhawk
via Mavlink protocol or other modules that
use serial protocol (UART).
Connector type: JST SM06B-ZESS-TB
