25. Changing the arm cover
Removal:

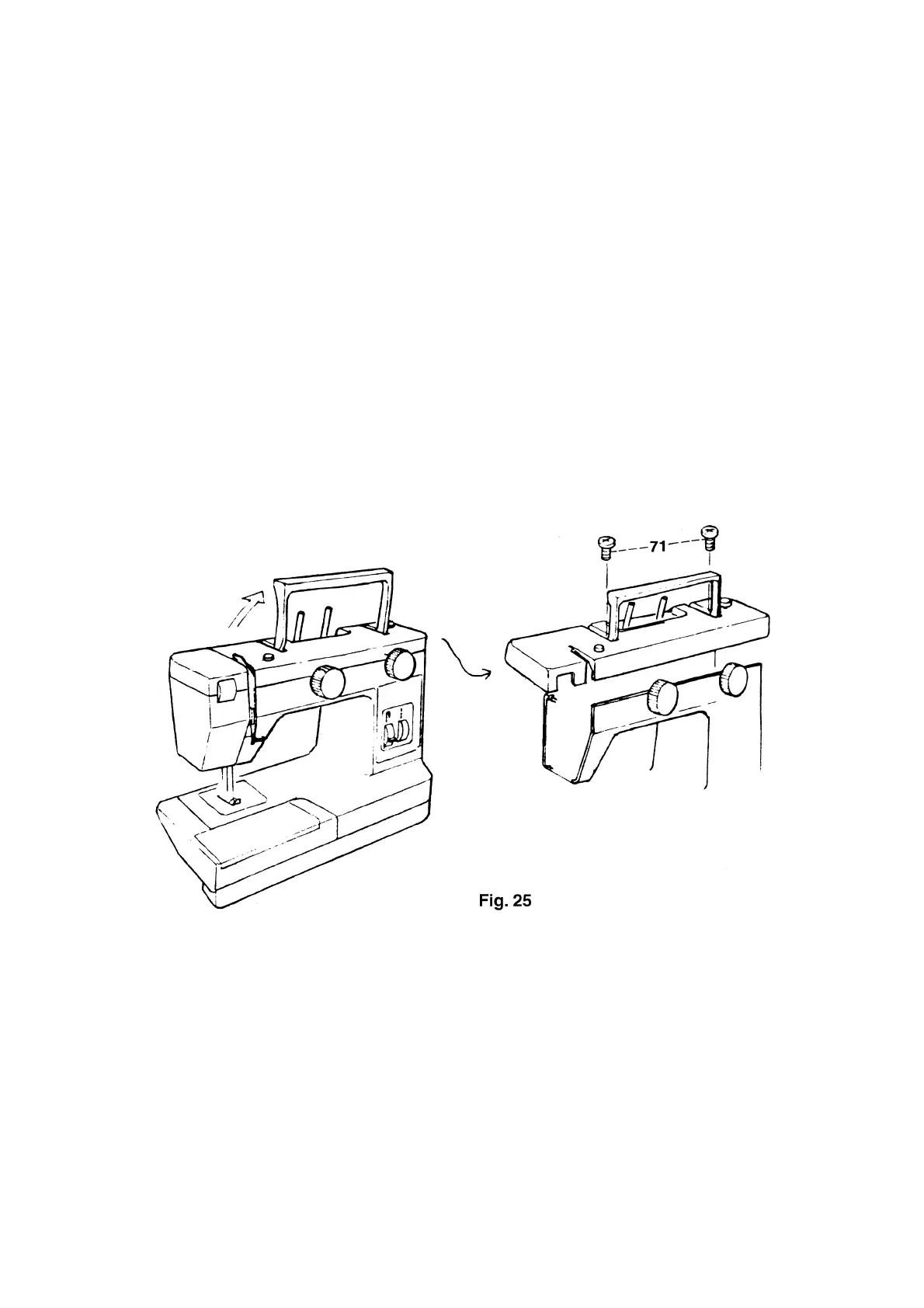

● Fold up the carrying handle (fig. 25).
● Turn out both screws 71.
● Remove arm cover by lifting it upwards.
Refitting:
● With the carrying handle in upright position, fit arm cover to the machine checking the position of the
thread tensioners and making sure that the arm cover closes without play.
● Insert and tighten both screws 71.
