-19 -
G0453/G0454 (Mfg. Since 3/08)

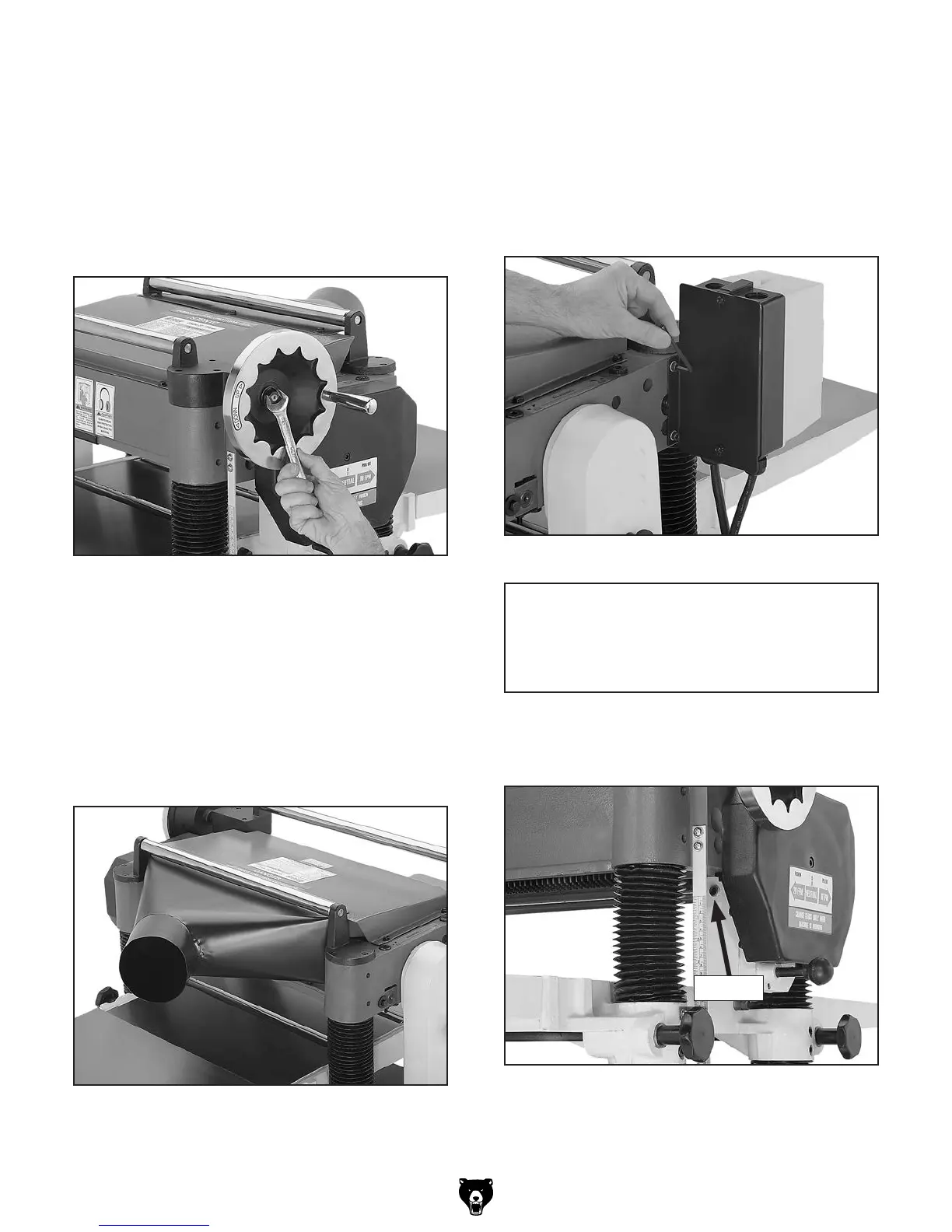

Figure 9. Installing the table height handwheel.
Figure 10. Dust hood attached.
4. Place the bushing on the handwheel shaft.
5. Insert the key into the shaft keyway.
6. Screw the handle into the handwheel.
7. Place the handwheel on the shaft and secure
it with the M12-1.75 hex nut and 12mm flat
washer, as shown in Figure 9.
8. Model G0453: Attach the dust hood to the
top of the planer with the M6-1 x 10 hex bolts,
6mm flat washers, and M6-1 hex nuts as
shown in Figure 10, then attach the bottom of
the dust hood to the planer with the M8-1.25
x 20 cap screws.
Note: You will need to reach into the dust
hood to get access for fastening the nuts.
Model G0454: Attach the dust hood with the
provided M6-1 x 12 flange bolts.
9. Remove the two cap screws already installed
on the left-hand side of the head casting.
10. Attach the switch bracket with the two cap
screws, as shown in Figure 11.
Figure 11. Attaching magnetic switch.
11. Remove the gearbox fill plug (see Figure
12).
Figure 12. Gearbox fill plug.
Fill Plug
NOTICE
Before starting your machine, you must
make sure the gearbox has the proper
amount of oil to avoid machine damage.
To Next Page
