12. Using the short end of a clean hex wrench,
dip it inside the fill hole and remove it.
—If the end of the hex wrench is coated
with oil, then the gearbox oil level is okay.
Replace the fill plug and skip to the next
section.
—If the end of the hex wrench is not coated
with oil, then you need to add more oil.
Refer to Page 32 for instructions on how
to do this.

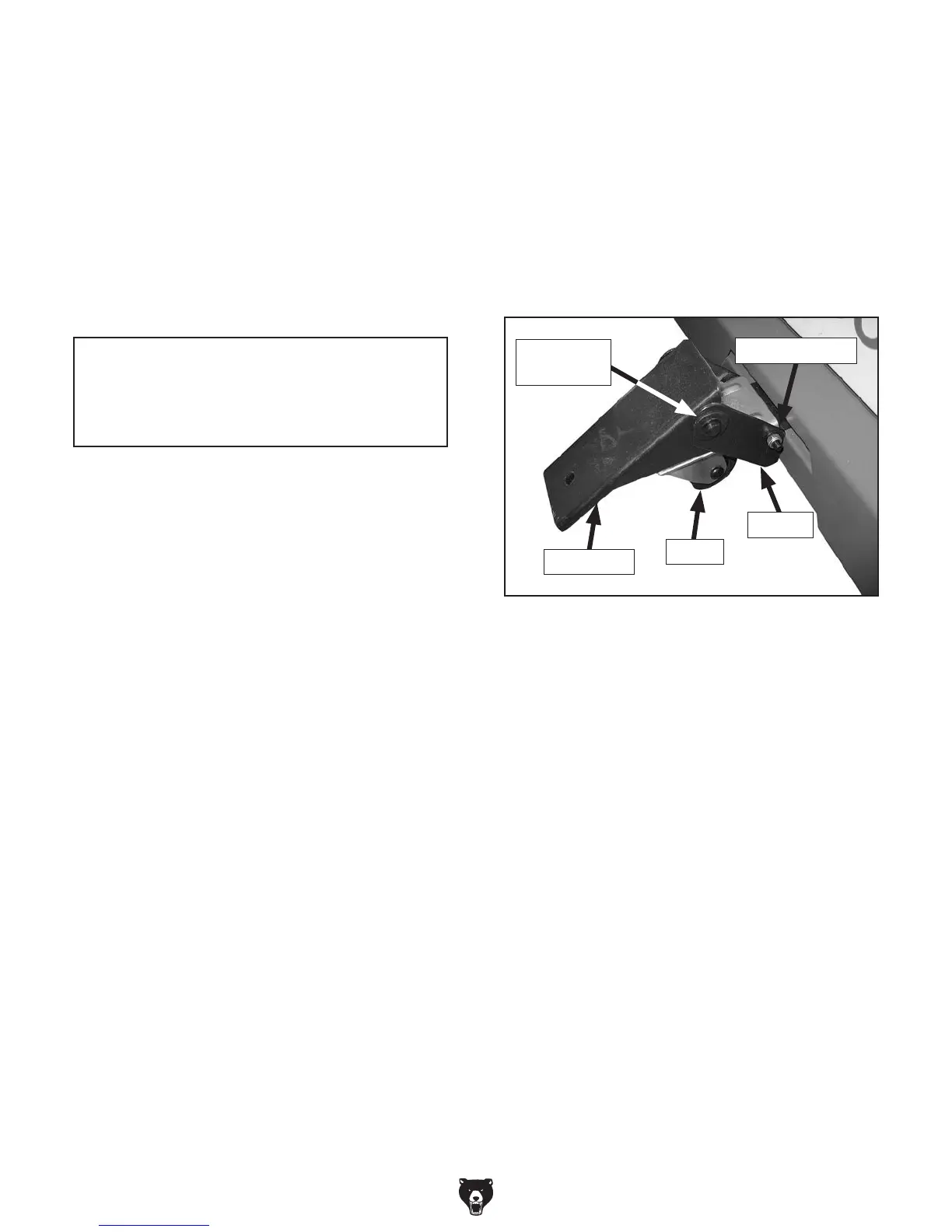

Figure 13. Foot pedal and caster installed.
Hex Bolt & Nut
Bracket
Foot Pedal
Caster
Pin, E-Clip
& Washers
15. Insert the hex bolt into the hole in the back
side of the caster assembly, and tighten the
bolt just enough for it to be snug without ham-
pering the pivot action of the caster.
16. Install the foot pedal to the caster and secure
together by inserting the pin between the two
parts.
17. Lock the caster and pedal in place with the
E-clip and washers, as shown in Figure 13.
NOTICE
Replace the gearbox oil after the first 20
hours of operation. This is a normal break-
in procedure.
13. Remove the pin and hex bolt that are already
mounted in the foot pedal bracket.
14. Align the caster assembly with the mounting
holes in the foot pedal bracket.
To Next Page
