G0462 Wood Lathe (Mfd. Since 11/14)
Installing/Removing
Faceplate
The faceplate is used when you need to remove
material from the face of the workpiece, such as
during hollowing operations. The faceplate can be
installed only if the spur center is removed from
the spindle.
To install the faceplate:
1. DISCONNECT LATHE FROM POWER!
2. If the spur center is installed, remove it (refer
to Page 22 for detailed instructions).
3. Make sure the internal threads of the face-
plate and the threads of the spindle are free
of any debris, then wipe the threads with a
lightly oiled rag to aid in the installation and
removal.
4. Thread the faceplate onto the spindle clock-
wise.

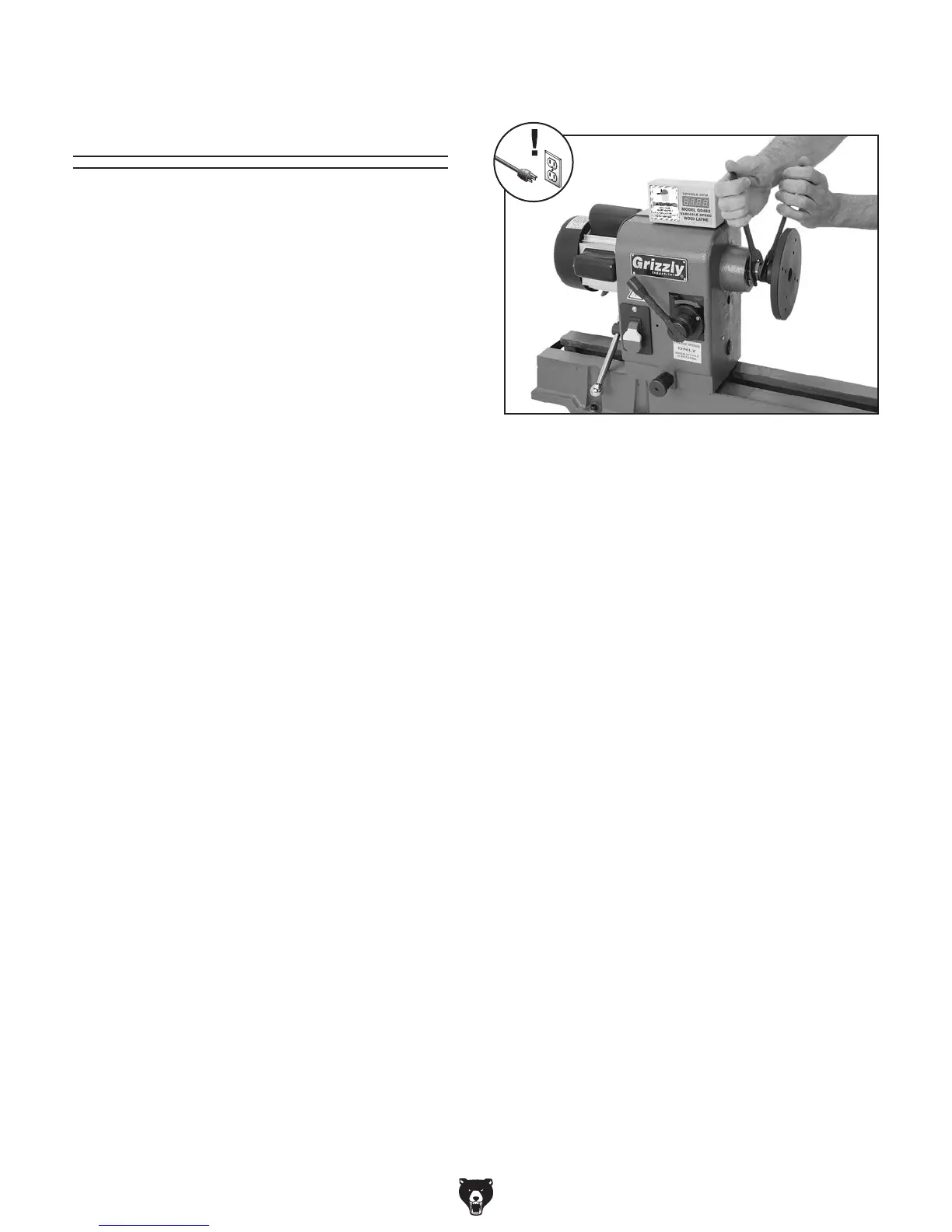

Figure 25. Tightening the faceplate onto the
spindle.
To remove the faceplate, perform Steps 3–4 in
reverse.
For detailed instructions on mounting a workpiece
to the faceplate, refer to Faceplate Turning on
Page 29.
5. Use the two included 32mm flat wrenches to
tighten the faceplate, as shown in Figure 25.
