G0462 Wood Lathe (Mfg. Since 3/10)
-39-
READ ELECTRICAL SAFETY
ON PAGE 38!

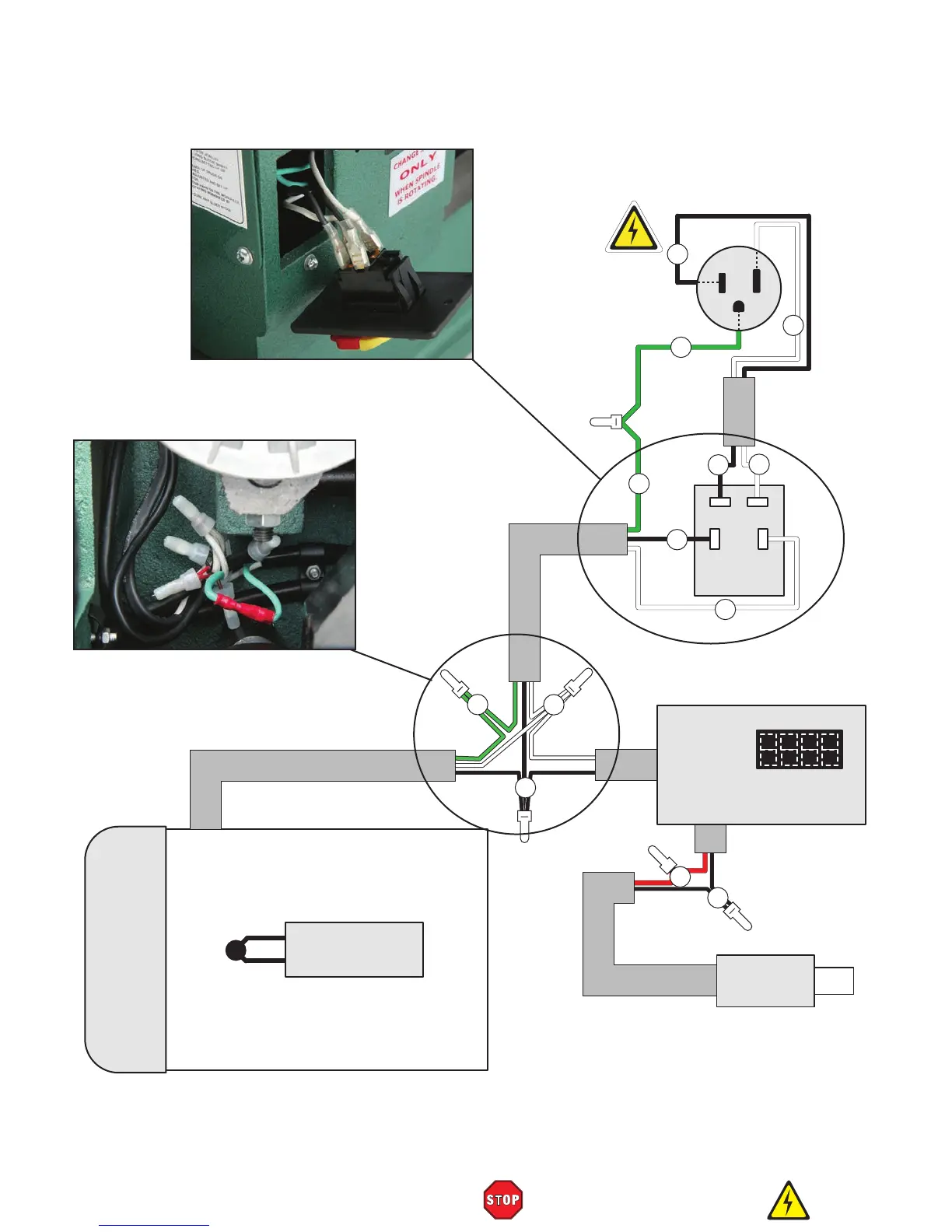

Electrical Components & Wiring Diagram
Neutral
Hot
Ground
110 VAC
NEMA 5-15 Plug
(As Recommended)
Paddle
Switch
Spindle Speed Sensor
Motor
Bk
Bk
Bk
Wt
Wt
Wt
Gn
Gn
Rd
Start Capacitor
100MFD 250VAC
Wt
Gn
Digital Readout
Bk
Bk
Figure 53. Motor wiring.
Figure 52. Paddle switch wiring.
