Model G0505 (Mfg. since 4/04)
-13-
Assembly
To assemble your planer:
1. Align the flat portion inside the crank bore with
the flat portion on the elevation leadscrew, as
shown in Figure 10, then place the crank
onto the leadscrew.
2. Thread the M6-1 x 20 cap screw and lock
washer through the crank and into the
leadscrew to secure the crank. DO NOT
overtighten.
Accidental contact with the cutterhead dur-
ing operation could cause serious personal
injury. The chip deflector MUST be securely
in place when the planer is connected to
power!
3. Use the elevation crank to lower the
cutterhead so that you can access the top of
the cutterhead assembly from the rear.
4. Remove the two wing nuts, position the chip
deflector with the foam cushion against the
motor housing, then re-install the wing nuts
to secure the chip deflector, as shown in
Figure 11. DO NOT over-tighten the wing
nuts.
Note: The chip deflector directs wood chips
away from the cutterhead during operation,
and it covers the cutterhead and outfeed roller
for operator safety.

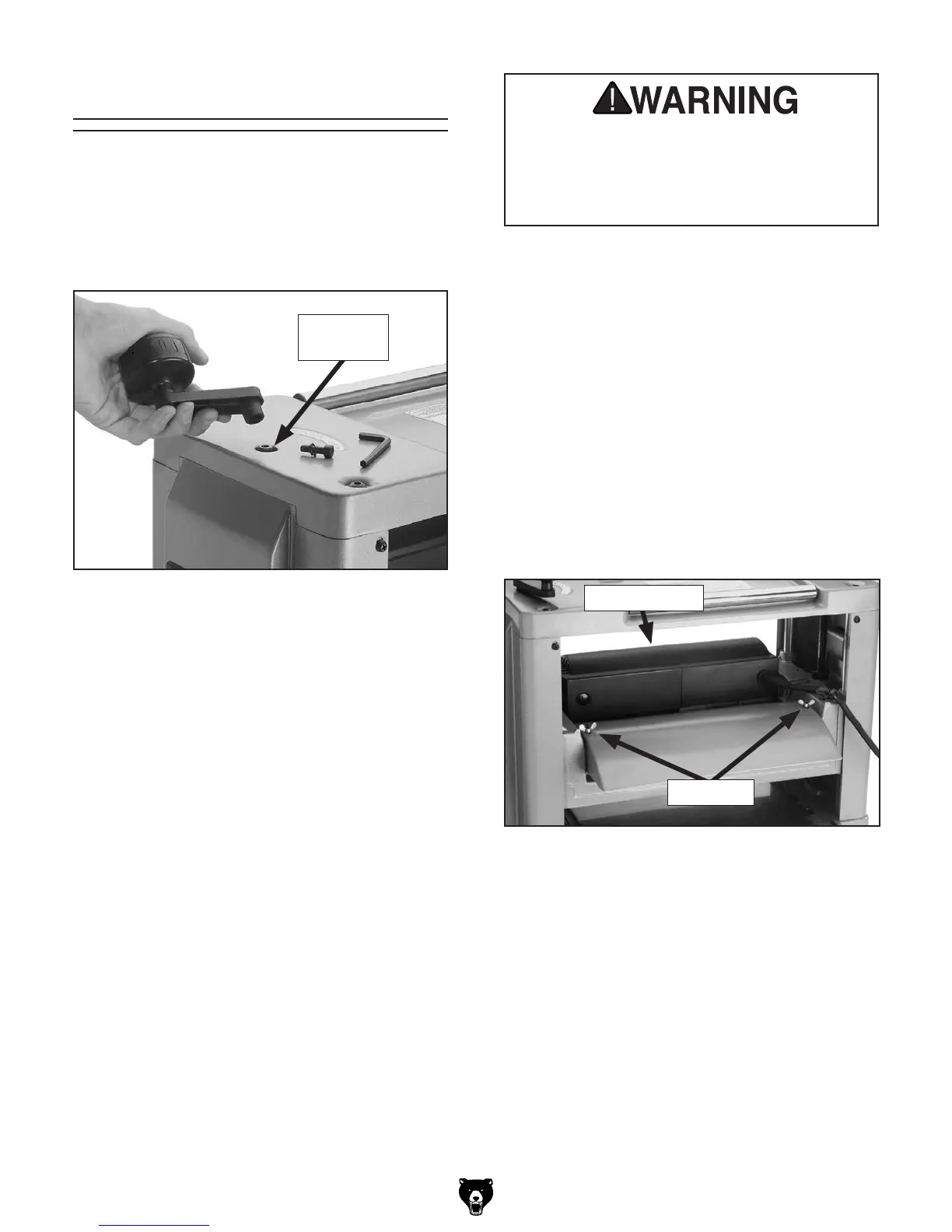

Figure 11. Chip deflector properly installed.
Motor Housing
Wing Nuts
Figure 10. Attaching the elevation crank.
Elevation
Leadscrew
To Next Page
