Grizzly G0505 User Manual

-34-
Model G0505 (Mfg. since 4/04)

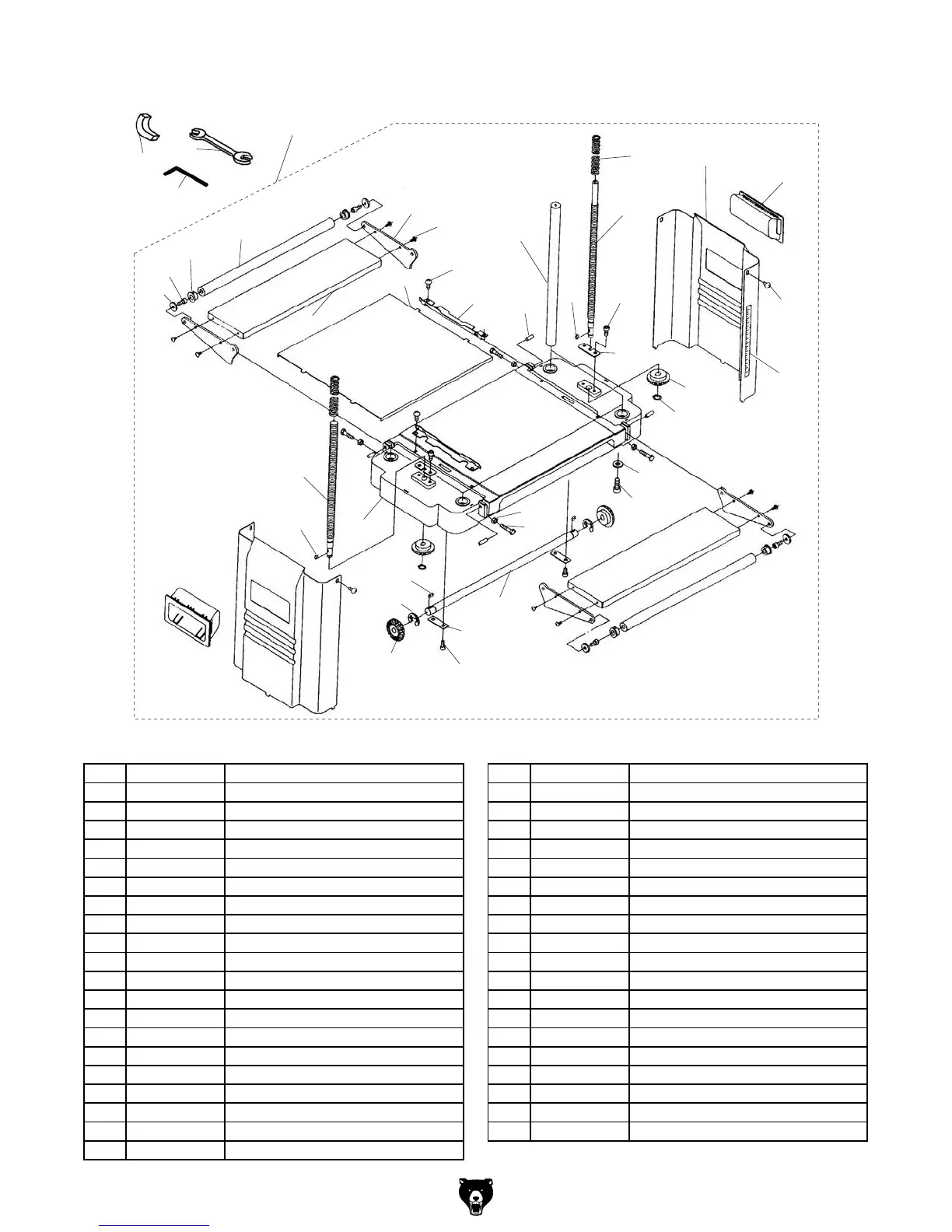

Base Breakdown
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
229
230
231
232
233
234
234A
235
236
237
238
239
228
REF PART # DESCRIPTION REF PART # DESCRIPTION
200 P0505200 BASE ASSEMBLY 221 P0505221 MAIN TABLE
201 P0505201 LEFT LEADSCREW M8-1.25 X 60 222 P0505222 PHLP HD SCR M5-.8 x 8
202 P0505202 KEY 4 X 4 X 8 223 P0505223 GUIDE PLATE
203 P0505203 BEVEL GEAR 224 P0505224 COLUMN
204 P0505204 E-CLIP 8MM 225 P0505225 KEY 4 X 4 X 8
205 P0505205 KEY 4 X 4 X 8 226 P0505226 RIGHT LEADSCREW M10-1.5 X 60
206 P0505206 CAP SCREW M6-1 X 10 227 P0505227 CAP SCREW M6-1 X 10
207 P0505207 FIXING PIECE 228 P0505228 FIXING PIECE
208 P0505208 TRANSMISSION SHAFT 229 P0505229 BEVEL GEAR
209 P0505209 EXTENSION WING BRACKET 230 P0505230 EXT RETAINING RING 10MM
210 P0505210 FLAT WASHER 6MM 231 P0505231 SIDE PANEL
211 P0505211 CAP SCREW M6-1 X 10 232 P0505232 PHLP HD SCR M5-.8 x 6
212 P0505212 EXTENSION WING ROLLER 14-5/16"L 233 P0505233 ROLLER BUSHING
213 P0505213 DEPTH SCALE LABEL 234 P0505234 LEADSCREW SPRING V1.12.02
214 P0505214 HEX BOLT M6-1 X 25 234A P0505234A LEADSCREW SPRING V2.04.04
215 P0505215 HEX NUT M6-1 235 P0505235 CARRYING HANDLE
216 P0505216 EXTENSION WING 236 P0505236 PHLP HD SCR M4-.7 X 8
217 P0505217 BASE 237 P0505237 RUBBER FOOT
218 P0505218 FLAT WASHER 5/16 238 P0505238 HEX WRENCH 5MM
219 P0505219 CAP SCREW M8-1.25 X 20 239 P0505239 DOUBLE-END WRENCH 8 X 8MM
220 P0505220 ROLL PIN 6 X 20
