Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

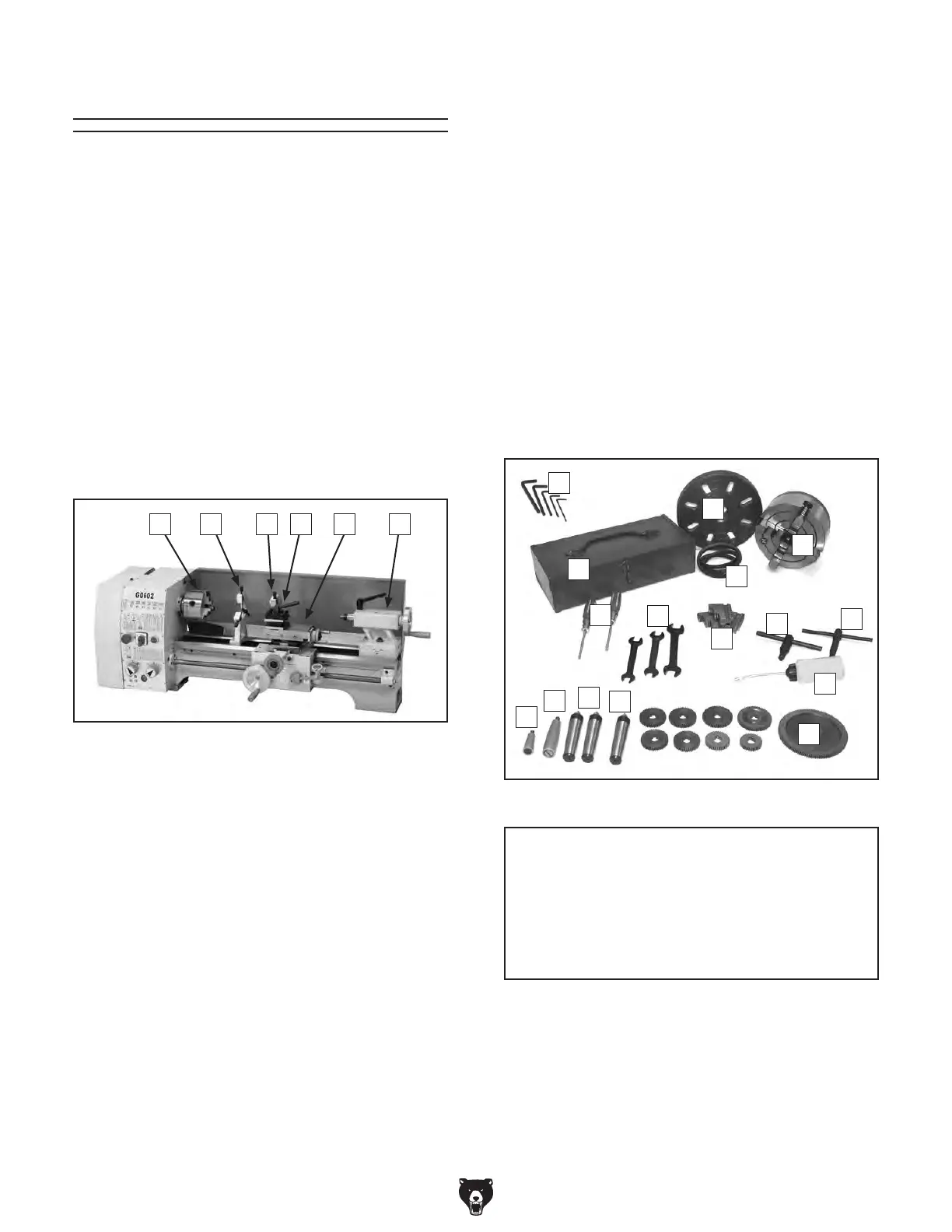

Installed Components (Figure 10) Qty.
A. 5" Three-Jaw Chuck ................................... 1
B. Steady Rest ................................................ 1
C. Follow Rest ................................................. 1
D. 4-Way Tool Post ......................................... 1
E. Compound Rest ......................................... 1
F. Tailstock ...................................................... 1
Figure 11. Packaged components.
I
J
K
L
M
N
O
P
Q
R
S
U
V
W
H
T
Figure 10. Installed components.
D EA B C F
Packaged Components (Figure 11) Qty.
G. Chip Pan (Not Shown) ................................ 1
H. Hex Wrench Set (2.5, 3, 4, 5, 6 mm) .....1 Ea
I. Toolbox ....................................................... 1
J. 8" Faceplate ............................................... 1
K. 6
1
⁄2" 4-Jaw Independent Chuck .................. 1
L. Low Range Belt 27
1
⁄2" (G0602) .................. 1
High Range Belt 33" (Installed, G0602) ..... 1
V-Belt 33" (Installed, G0752) ...................... 1
M. #2 Phillips and Standard Screwdriver ...1 Ea
N. Wrench Set (8/10, 12/14, 19/17mm) .......1 Ea
O. 3-Jaw Chuck Internal Jaw Set .................... 1
P. 3-Jaw Chuck Key ....................................... 1
Q 4-Jaw Chuck Key ....................................... 1
R. Oil Bottle for Oil .......................................... 1
S. Cross Slide Handwheel Handle ................. 1
T. Carriage Handwheel Handle ...................... 1
U. Dead Centers MT#3 .................................. 2
V. Dead Center MT#4 ..................................... 1
W. Change Gear Set ....................................... 1
— Change Gear (27-tooth, Installed) ......... 1
— Change Gear (36-tooth) ......................... 1
— Change Gear (40-tooth) ......................... 1
— Change Gear (44-tooth) ......................... 1
— Change Gear (45-tooth) ......................... 1
— Change Gear (46-tooth) ......................... 1
— Change Gear (48-tooth) ......................... 1
— Change Gear (52-tooth) ......................... 1
— Change Gear (56-tooth, Installed) ......... 1
— Change Gear (60-tooth) ......................... 1
— Plastic Drive Gear (60-tooth, Installed) . . 1
— Change Gear (104-tooth, Installed) ....... 1
— Change Gear (120-tooth) ....................... 1
— Change Gear (127-tooth, Installed) ........ 1
X. Frequency Drive Manual VFD-E (G0752, Not
Shown) ....................................................... 1
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
