Grizzly G0602Z User Manual

-82-
Model G0602/G0752 (Mfd. Since 03/17)

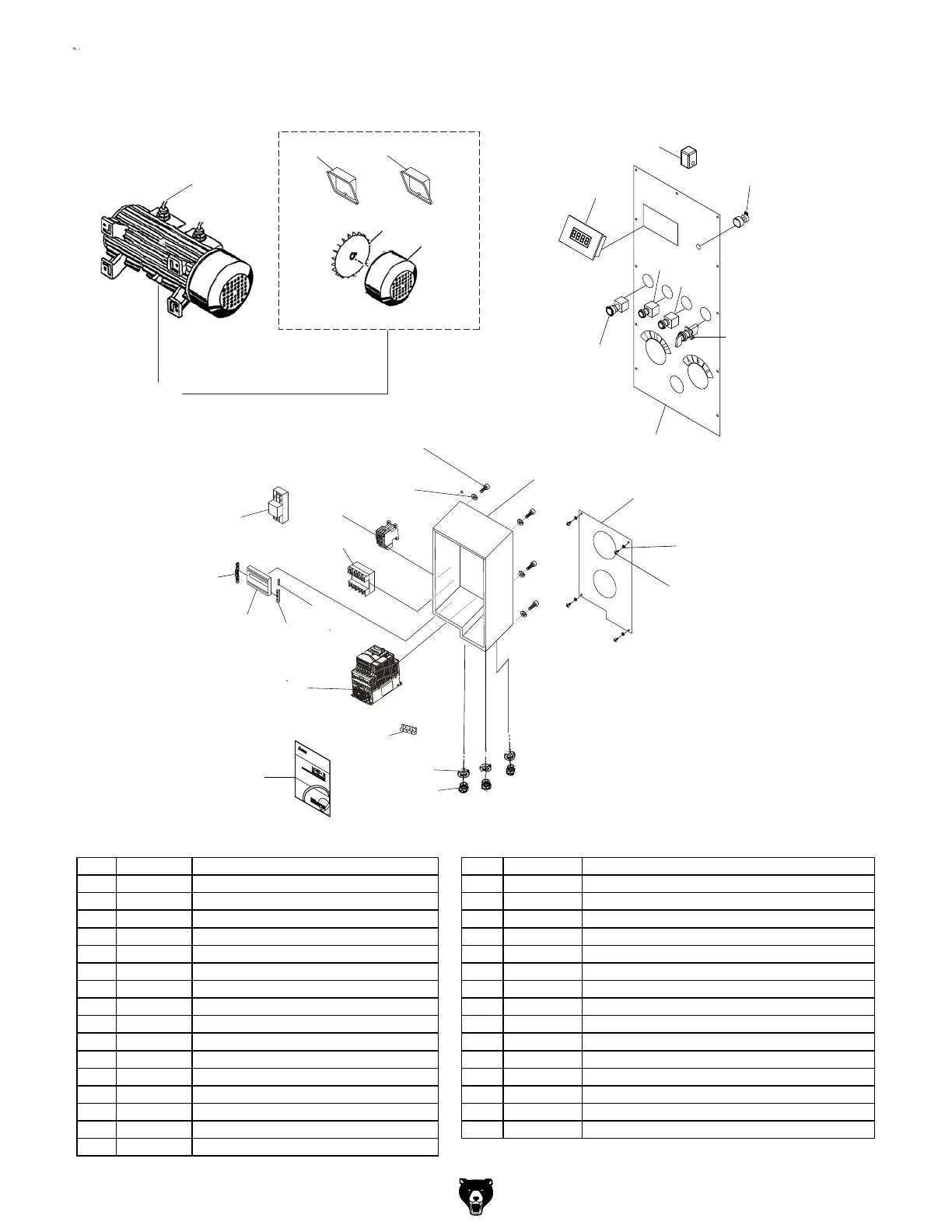

G0752 Motor & Electrical
611
611-1
611-2
611-3
611-4
611-6
602
601
604
603
607
617
618
619
630
631
632
633
620
634
621
608
610
612
622
623
624
627
628V2
629
626
625
4
6
KAI
DYF08A
5
1
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0752601 ELECTRICAL CABINET 620 P0752620 INVERTER (VFD) DELTA VFD007E11A
602 P0752602 CAP SCREW M6-1 X 25 621 P0752621 VFD-E USER MANUAL
603 P0752603 LOCK WASHER 6MM 622 P0752622 E-STOP BUTTON MINGER LA125H-BE101C-102C
604 P0752604 ELECTRICAL CABINET COVER 623 P0752623 ON PUSH BUTTON MINGER LA125H-BE102C
607 P0752607 STRAIN RELIEF NUT 624 P0752624 SPINDLE DIRECTION SWITCH LA125H-BE102C
608 P0752608 STRAIN RELIEF M25-1.5 625 P0752625 G0752 CONTROL PANEL
610 P0752610 PHLP HD SCR M4-.7 X 6 625 P0752625 G0752 CONTROL PANEL
611 P0752611 MOTOR 1HP 220V 3-PH 626 P0752626 OFF PUSH BUTTON MINGER LA125H-BE101C
611-1 P0752611-1 MOTOR FAN 627 P0752627 RPM DISPLAY UNIT
611-2 P0752611-2 MOTOR FAN COVER 628V2 P0752628V2 POTENTIOMETER WXD3-13 V2.03.17
611-3 P0752611-3 RIGHT MOTOR JUNCTION BOX COVER 629 P0752629 SPINDLE SPEED SENSOR
611-4 P0752611-4 LEFT MOTOR JUNCTION BOX COVER 630 P0752630 RELAY OMRON MY2N-J 220V
611-6 P0752611-6 POWER CORD 16G 3W 60" 5-15P 631 P0752631 FUSE 2A 250V
612 P0752612 FLAT WASHER 4MM 632 P0752632 FUSE HOLDER
617 P0752617 CONTACTOR SIEMENS 3TB41 22E 24V 633 P0752633 TERMINAL POST MOUNTING BRACKET
618 P0752618 TRANSFORMER BAEEC JBK5-40VA 634 P0752634 GROUNDING BAR
619 P0752619 TERMINAL POST
