Grizzly G0602Z User Manual

-76-
Model G0602/G0752 (Mfd. Since 03/17)

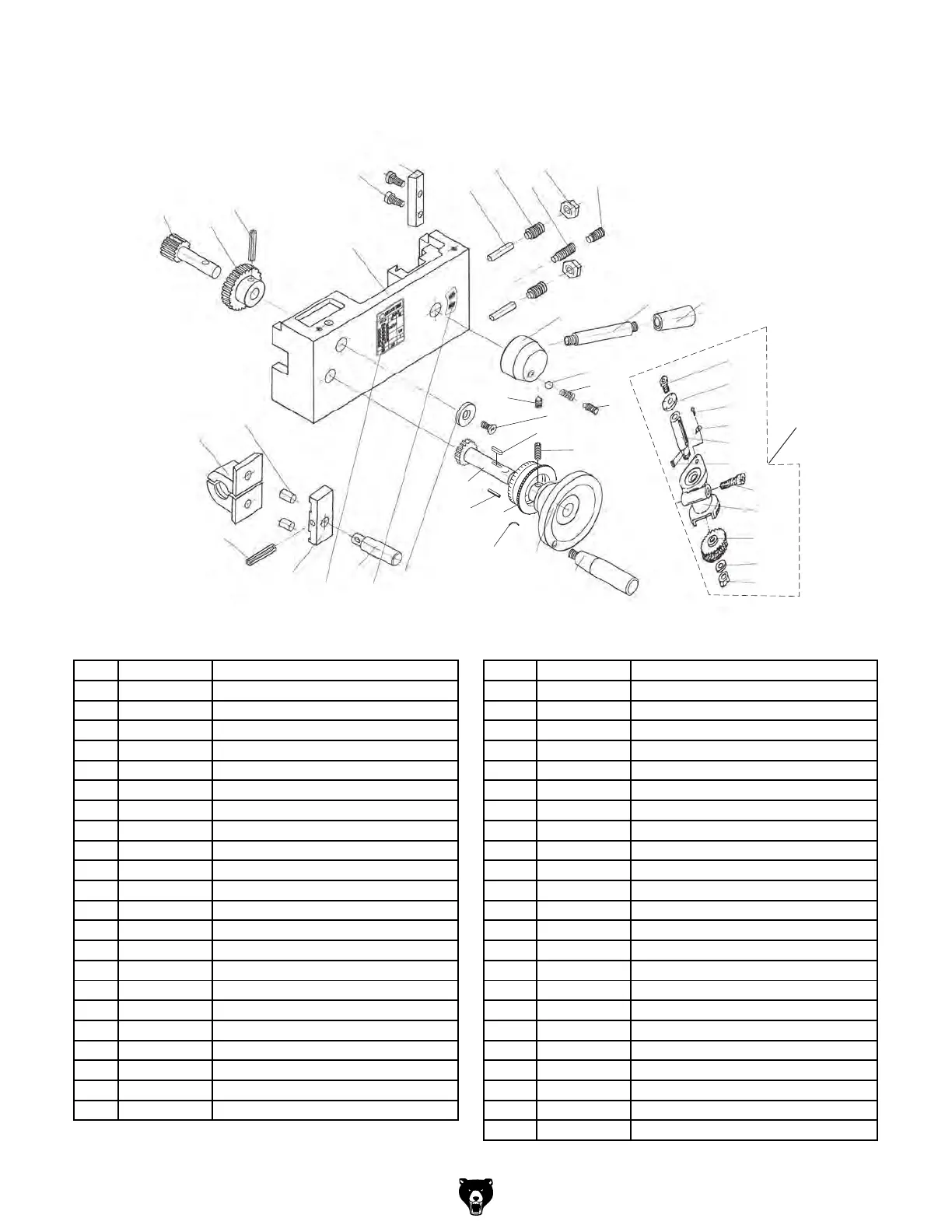

Apron
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133V2
134V2
135
137
138
139
140
141
142
126-1
146
143
144
145
136V2
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0602101 ROLL PIN 4 X 14 124 P0602124 KEY 3 X 3 X 10
102 P0602102 HALF-NUT 2-PC 125 P0602125 CAP SCREW M6-1 X 55
103 P0602103 DOWEL PIN 5 X 12 126 P0602126 THREAD DIAL BODY
104 P0602104 GEAR SHAFT 126-1 P0602126-1 THREAD DIAL ASSY
105 P0602105 GEAR 127 P0602127 SIDE GEAR 48T
106 P0602106 ROLL PIN 4 X 30 128 P0602128 FLAT WASHER 8MM
107 P0602107 APRON CASTING 129 P0602129 HEX NUT M8-1.25
108 P0602108 CAP SCREW M4-.7 X 12 130 P0602130 SET SCREW M6-1 X 6
109 P0602109 HALF-NUT GIB 131 P0602131 COMPRESSION SPRING
110 P0602110 DOWEL PIN 4 X 16 132 P0602132 CARRIAGE HANDWHEEL HANDLE
111 P0602111 SET SCREW M5-.8 X 16 133V2 P0602133V2 CARRIAGE HANDWHEEL
112 P0602112 SET SCREW M6-1 X 25 134V2 P0602134V2 SET SCREW M6-1 X 12
113 P0602113 HEX NUT M5-.8 135 P0602135 SET SCREW M6-1 X 12 CONE-PT
114 P0602114 SET SCREW M6-1 X 12 136V2 P0602136V2 GEAR SHAFT V2.03.17
115 P0602115 HALF-NUT LEVER HUB 137 P0602137 FLAT HD SCR M6-1 X 10
116 P0602116 HALF-NUT LEVER STUD 138 P0602138 FLAT WASHER 6MM
117 P0602117 HALF-NUT LEVER HANDLE 139 P0602139 HALF-NUT INDICATOR PLATE
118 P0602118 STEEL BALL 5MM 140 P0602140 LOCK CAM SHAFT
119 P0602119 CAP SCREW M6-1 X 6 141 P0602141 THREADED DIAL PLATE
120 P0602120 THREAD DIAL 142 P0602142 HALF-NUT BRACKET
121 P0602121 RIVET 2 X 5MM STEEL FLUTED 143 P0602143 PLATE SPRING
122 P0602122 POINTER 144 P0602144 GRADUATED DIAL
123 P0602123 SHAFT 145 P0602145 ROLL PIN 5 X 12
146 P0602146 KEY 3 X 3 X 12
