Model G0602Z/G0752Z (Mfd. Since 06/17)
-3-

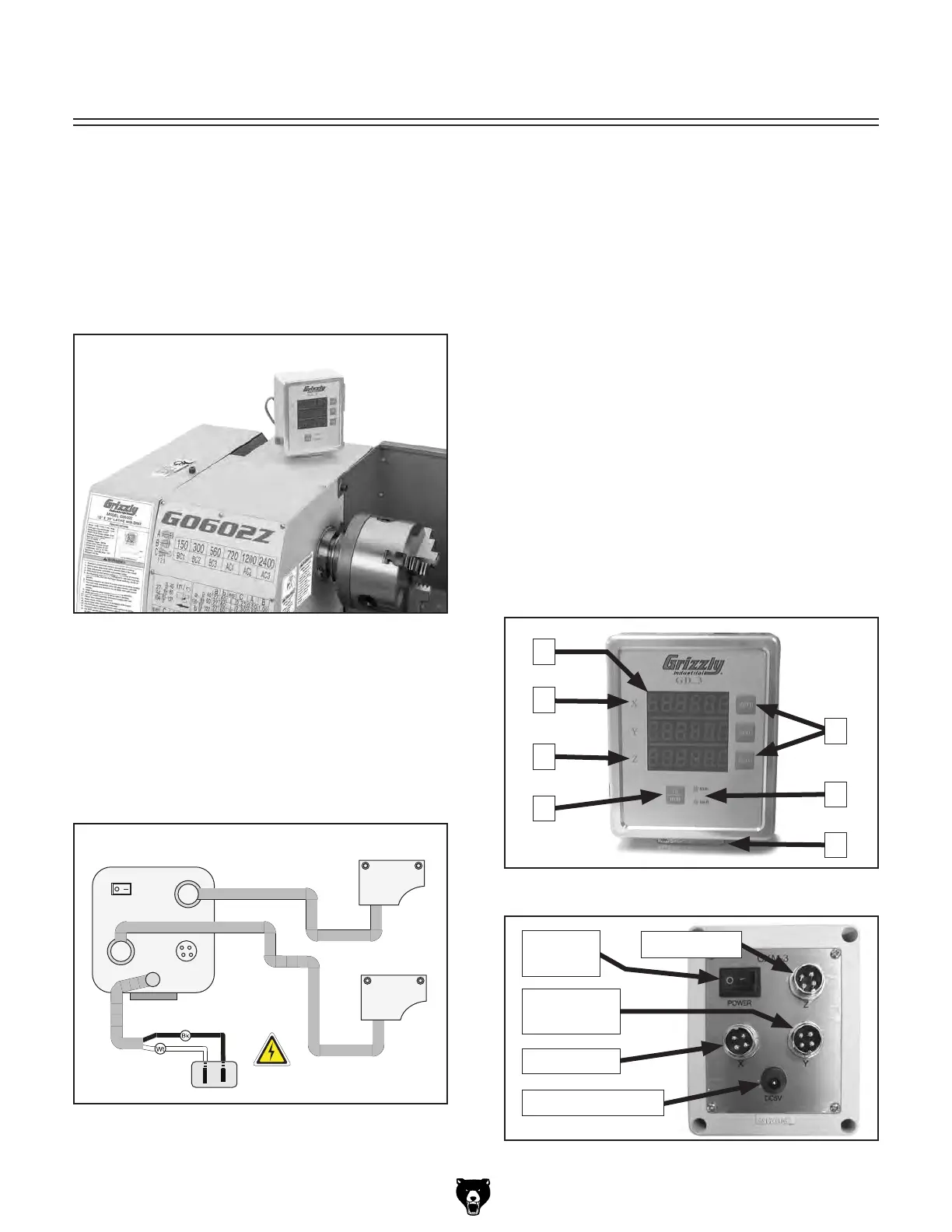

DRO Components
Model G0602Z/G0752Z features a magnetically
mounted DRO (see Figure 1) for X-axis (cross
slide) and Z-axis (carriage) travel.
Note: When placing the DRO, locate all cables so
they do not interfere with machine operation and
cannot be pinched by moving components.
The X-axis and Z-axis scales are attached to
the cross slide and bed (respectively). Shielded
cables run from each sensor to plugs on the back
of the DRO (see Figure 2). The DRO connects
to a regular 110V power supply with a dedicated
power cord using a NEMA 1-15 plug.
Digital Readout
A. DRO displays current position of X-axis and
Z-axis in hundredths of a millimeter or thou-
sandths of an inch. (Included Y-axis display
line is not used on G0602Z or G0752Z.)
B. "X" value displays total X-axis travel from
zero along cross slide.
C. "Z" value displays total Z-axis travel from
zero along lathe bed.
D. In/MM button allows users to toggle
measurement display in either inches or
millimeters.
E. ZERO buttons reset values at any point along
the axis to 0.00.
F. Green light indicates inches or millimeters.
G. Magnetic mount.
DRO
(Viewed from behind)
110 VAC
1-15 Plug
AW
NEUTRAL
HOT
Z-Axis Sensor
X-Axis Sensor
Z-Axis Port
Power
Cord
Port
POWER
Y-Axis Port
(Not Used)
X-Axis Port
CXM-3
Figure 2. DRO wiring.
Figure 3. DRO controls and display.
B
C
D
F
E
A
Using DRO
Figure 1. DRO magnetically mounted on lathe
headstock.
Figure 4. DRO cable connections (rear).
Z-Axis Port
DRO Power Cord
G
X-Axis Port
Y-Axis Port
(Not Used)
ON/OFF
Switch
