Grizzly G0755 User Manual

Model G0755 (Mfg. Since 1/13)
-23-
A. ON/OFF Light: Lights when unit is turned
ON.
B. Direction Lever: Controls direction of pow-
ered table travel.
C. Rapid Switch: When held down, moves
table rapidly in chosen direction.
D. Power Light: Lights when unit is connected
to power.
E. Speed Dial: Controls rate of power feed.
F. ON/OFF Switch
G. X-Axis Limit Stops: Adjustable along front
of table to restrict X-axis table movement,
particularly when using the power feed.
H. Limit Switch: Stops power feed when con-
tacted by a limit stop.

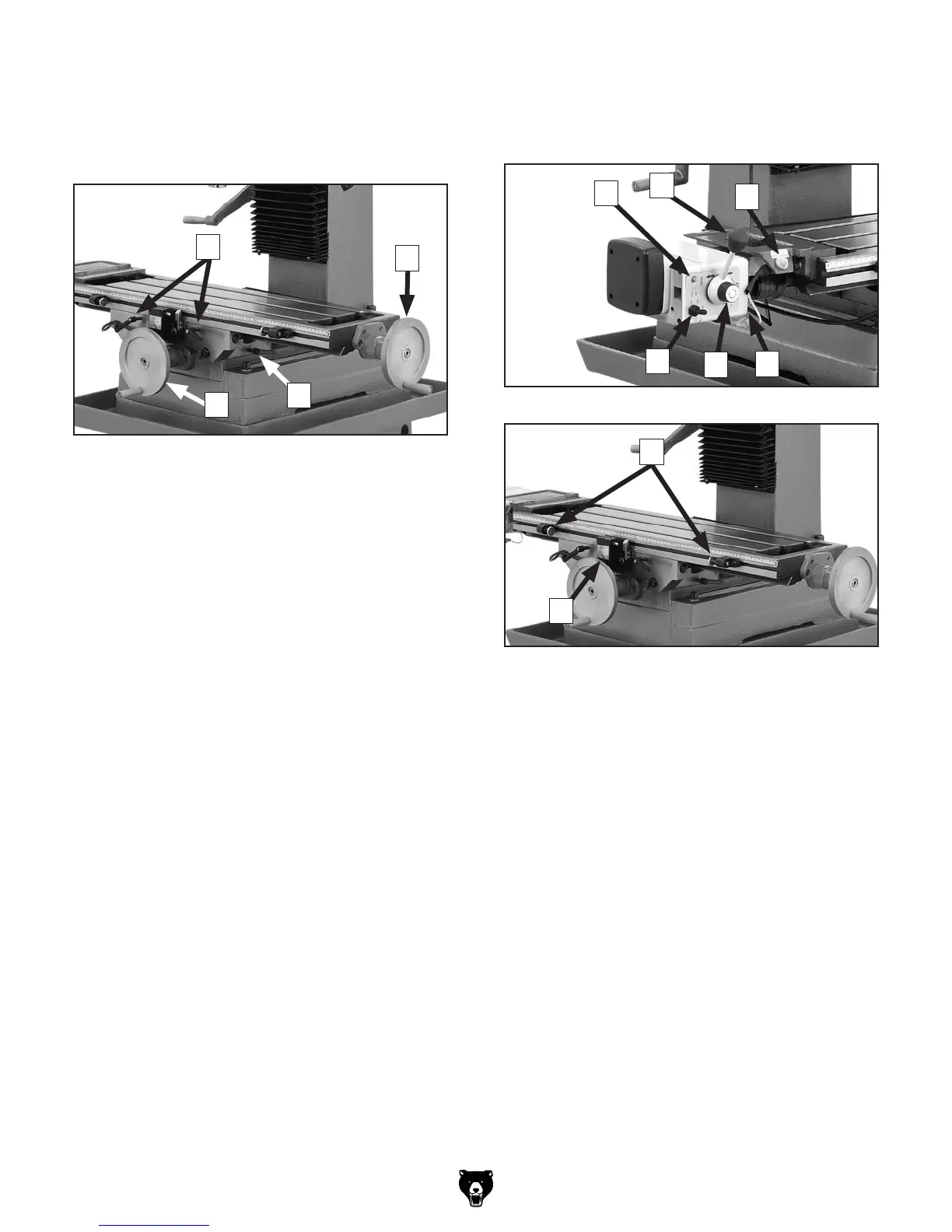

Figure 22. X-axis power feed controls.
A
B
C
D
E
F
X- & Y-Axis Handwheels
Use Figure 21 and the following descriptions to
become familiar with the X- and Y-axis manual
table movement.
A. Y-Axis Handwheel: Moves table back and
forth.
B. X-Axis Table Locks: Increase rigidity of
table when X-axis movement is not required
for operation.
C. Y-Axis Table Lock: Increase rigidity of table
when Y -axis movement is not required for
operation.
D. X-Axis Handwheel: Moves table side to
side.
X-Axis Power Feed
Use Figures 22–23 and the following descriptions
to become familiar with the power feed controls.
Figure 21. Table locks and limit stops.
A
B
C
D
Figure 23. Limit switch and limit stops.
G
H
