Grizzly G0755 User Manual
5
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
-
5
2-
Model
G
07
55
(Mfg. Sinc
e
1
/1
3)

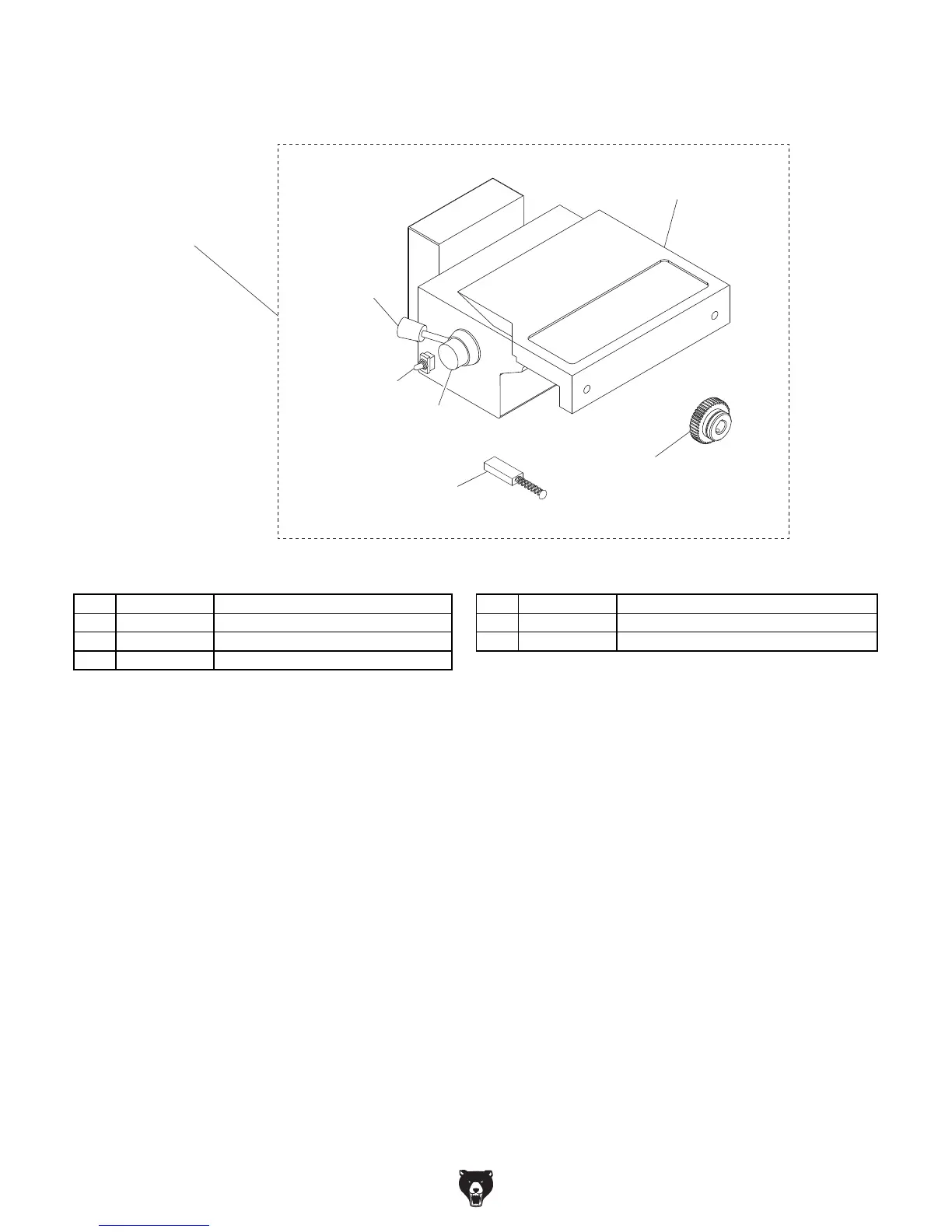

Pow
e
r
F
e
e
d
501
501-1
501-2
501-3
501-6
501-4
501-5
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
501
T24824
POWER FEED ASSY ALIGN AS-235
501-4
PT24824004
ON/OFF SWITCH
501-1
PT24824001A
MOUNTING BRACKET 2-PC
501-5
PT24824008
ZYTEL GEAR ASSEMBLY
501-2
PT24824002
CONTROL HANDLE
501-6
P0755501-6
POWER FEED MOTOR CARBON BRUSH
501-3
PT24824003
SPEED CONTROL KNOB
53
55
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
4
Machine Description
4
Contact Info
4
Manual Accuracy
4
Identification
5
Machine Data Sheet
6
Section 1: SAFETY
8
Safety Instructions for Machinery
8
Additional Safety for Mill/Drills
10
Section 2: POWER SUPPLY
11
Availability
11
Full-Load Current Rating
11
Circuit Requirements for 220V
11
Grounding Instructions
12
Extension Cords
12
Section 3: SETUP
13
Unpacking
13
Needed for Setup
13
Inventory
13
Cleanup
14
Site Considerations
15
Lifting & Placing
16
Anchoring to Floor
17
Anchoring to Concrete Floors
17
Assembly
17
Joining Drill Chuck & Arbor
18
Lubricating Mill/Drill
18
Test Run
19
Spindle Break-In
20
Inspections & Adjustments
20
Section 4: OPERATIONS
21
Operation Overview
21
Control Panel
22
Downfeed Controls
22
Identification
22
Using Coarse Downfeed
22
Using Fine Downfeed
22
Depth Stop
23
Headstock Movement
23
Raising/Lowering Headstock
23
Tilting Headstock
24
Table Travel
24
Graduated Dials
24
Y-Axis Handwheels
25
X-Axis Power Feed
25
Installing/Removing Tooling
26
Installing Tool Holder
26
Removing Tool Holder
27
Spindle Speed
27
Determining Spindle Speed
27
Setting Spindle Speed
28
Section 5: Accessories
29
Section 6: Maintenance
32
Schedule
32
Cleaning and Protecting
32
Lubrication
32
Headstock Reservoir
33
Ball Oilers
34
Table/Column Ways & Quill
34
Table Leadscrews
35
Quill Rack & Pinion
35
Z-Axis Leadscrew
36
Section 7: Service
37
Troubleshooting
37
Adjusting Gibs
39
Adjusting Leadscrew Backlash
39
Tramming Spindle
40
Replacing Power Feed Carbon Brushes
41
Tightening Return Spring Tension
42
Section 8: WIRING
43
Wiring Safety Instructions
43
Electrical Box Wiring
44
Motors & Other Electrical Wiring
45
Section 9: PARTS
48
Head
48
Head Parts List
49
Table & Column
51
Electrical Components
53
Power Feed
54
Accessories
55
Machine Labels & Cosmetics
56
Warranty Card
57
Warranty & Returns
59
