-24-
Model G0755 (Mfg. Since 1/13)
Installing/Removing
Tooling
Installing Tool Holder
Tool Needed Qty
Wrench 19mm ................................................... 1
To install tool holder:
1. DISCONNECT MACHINE FROM POWER!
2. Remove drawbar cap as shown in Figure 25.
3. Align tool holder alignment slot (see Figure
24) with pin inside spindle, then insert tool
holder into spindle until it contacts drawbar.
Note: Drawbar height inside spindle can be
changed by rotating the adjustment nut (see
Figure 25).
4. Working from the top, hand-thread drawbar
into tool holder until snug, then use a 19mm
wrench to tighten it.
Note: DO NOT overtighten drawbar.
Overtightening makes tool holder removal
difficult and could damage arbor and drawbar
threads.
5. Re-install drawbar cap.
Cutting tools are sharp and
can easily cause laceration
injuries. Always protect
your hands with leather
gloves or shop rags when
handling cutting tools.
The Model G0755 includes the following spindle
tools (see Figure 24):
A. B16 Drill Chuck w/R-8 Arbor: Use with drill
bits.
B. R-8–MT#3 Spindle Sleeve: Use with MT#3
tooling with or without a tang. Has a drift key
slot for tool removal.
C. MT#3–MT#2 Spindle Sleeve: Use with the
R-8–MT#3 spindle sleeve for MT#2 tooling.
Has a drift key slot for tool removal.

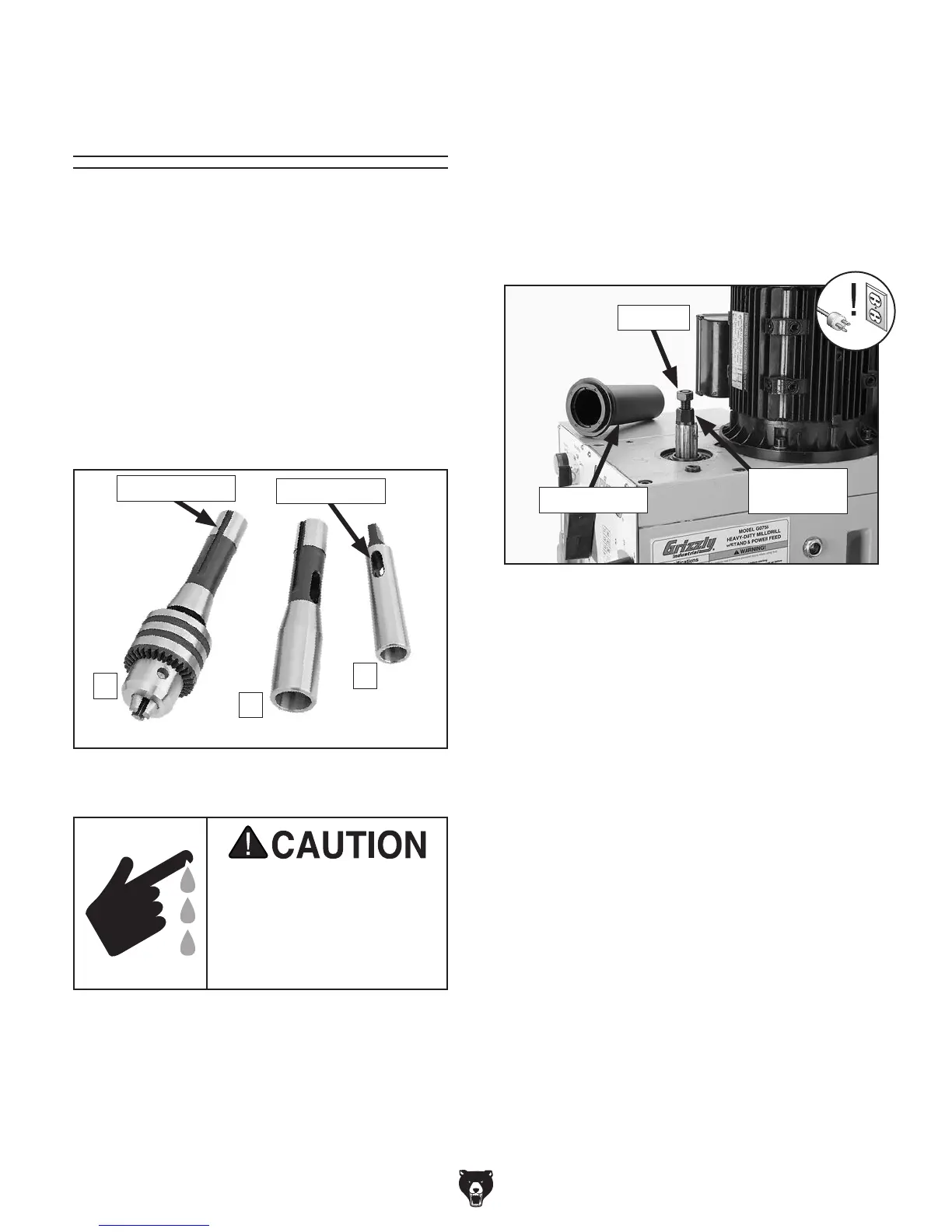

Figure 24. Drill chuck and arbors included with
Model G0755.
A
B
C
Drift Key Slot
Alignment Slot
Figure 25. Drawbar components.
Drawbar Cap
Adjustment
Nut
Drawbar
