-26-
Model G0755 (Mfg. Since 1/13)
Setting Spindle Speed
The chart below explains how to position the
spindle range and speed levers to set the desired
spindle speed.
Spindle Speed Range Lever Speed Lever
90 RPM L 1
210 RPM L 2
345 RPM L 3
670 RPM H 1
1180 RPM H 2
1970 RPM H 3
Change spindle speed ONLY when the
spindle is completely stopped. Otherwise,
machine damage could occur.
With the spindle completely stopped, position the
spindle range and speed levers (see Figure 27)
to set the spindle speed.
Note: If the levers will not move to the desired
position, rotate the spindle by hand while applying
pressure on the lever. When the gear teeth align,
the lever will move into place.

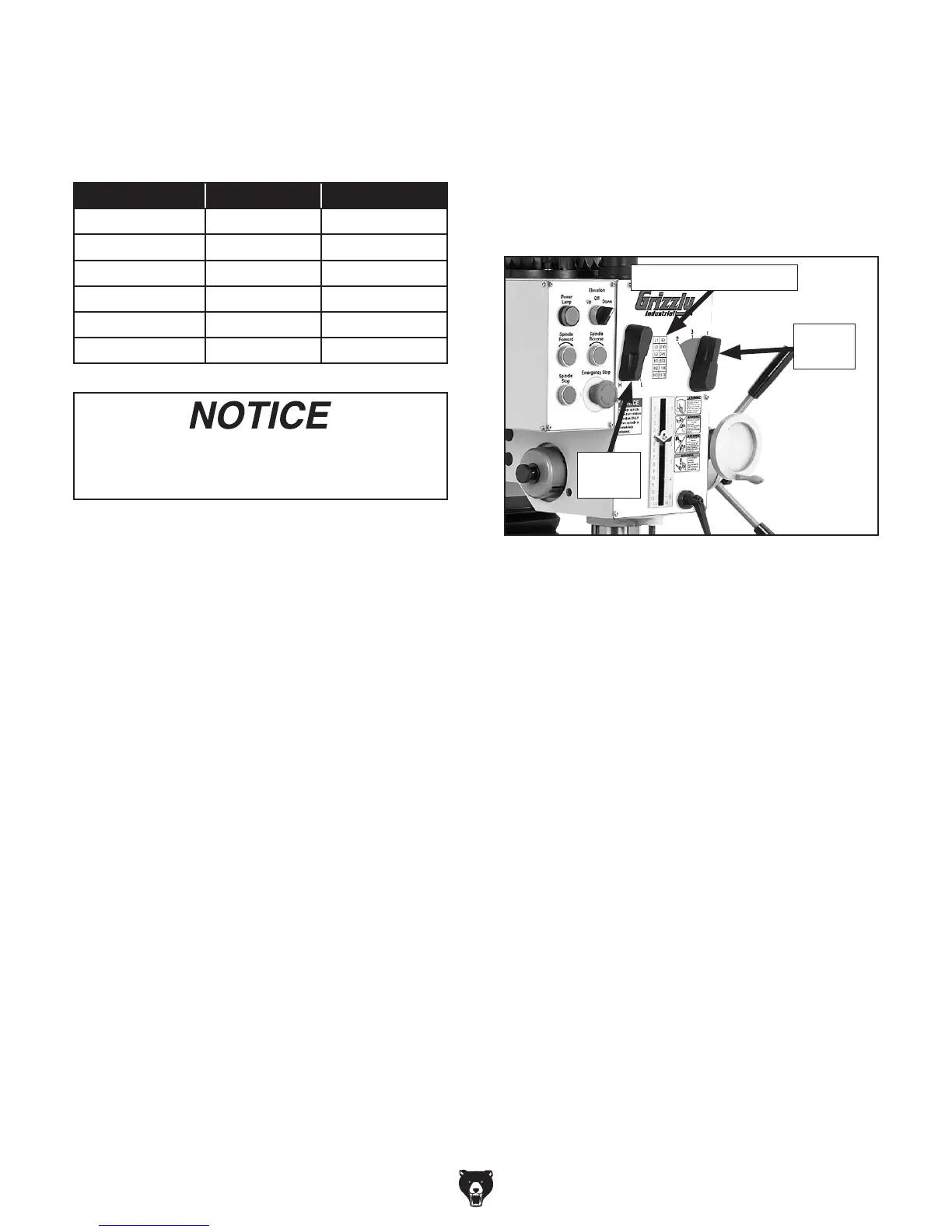

Figure 27. Spindle speed controls.
Speed
Lever
Spindle Speed Chart
Range
Lever
To Next Page
