Model G0704 (Mfd. Since 05/16)
Electronic Controls Identification

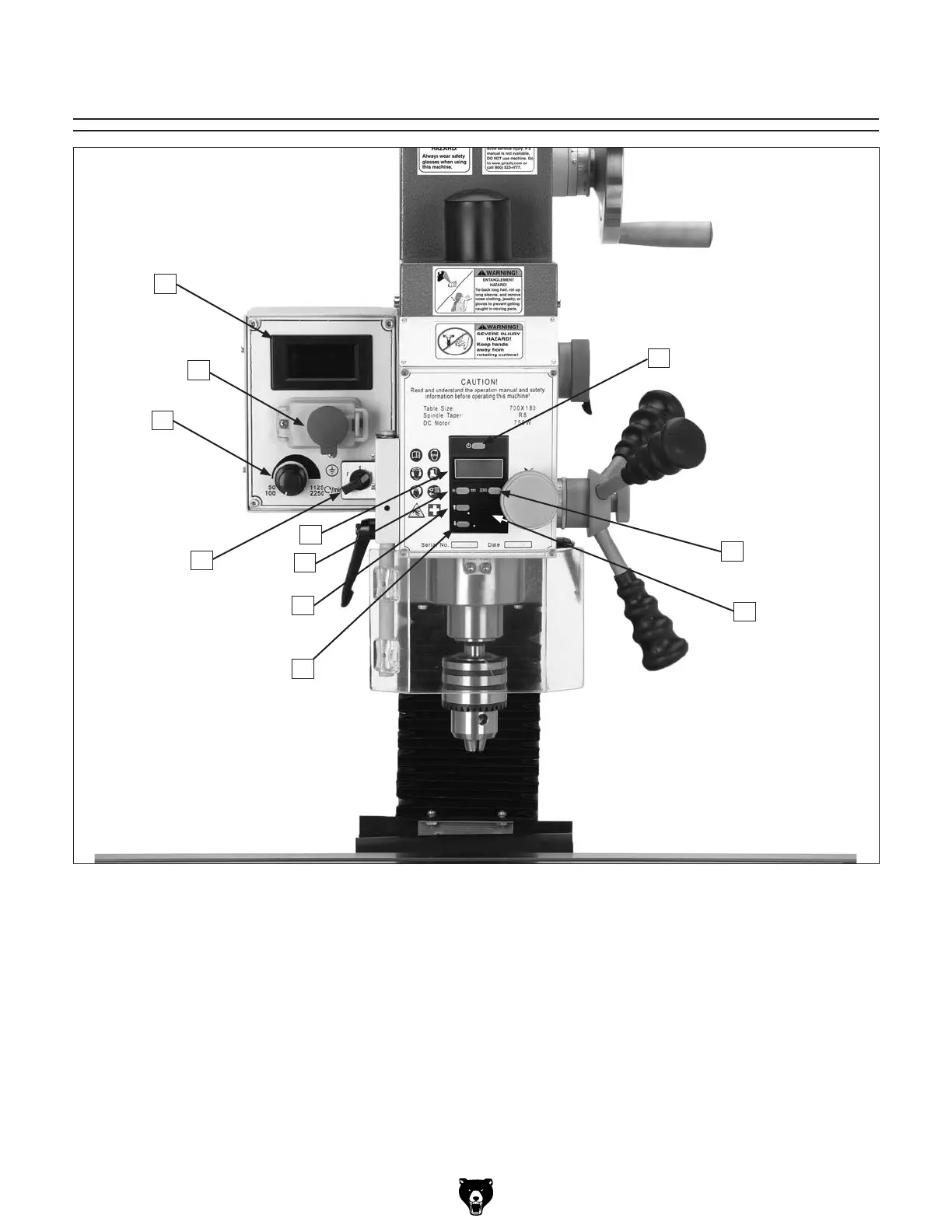

Figure 2. G0704 electronic controls identification.
A. Spindle RPM Readout
B. Spindle Digital Readout Power Button
C. Digital Readout ZERO Button
D. Digital Readout Battery Cover & Battery
E. Spindle Depth Display DECREASE Button
F. Spindle Depth Display INCREASE Button
G. IN/MM Unit Selection Button
H. Spindle Depth Display
I. Spindle Direction Selection Knob
J. Variable Spindle Speed Knob
K.
START/Emergency Stop Buttons
H
A
B
I
K
J
G
F
D
C
E
