Grizzly G0759 User Manual

-24-
Model G0704 (Mfd. Since 05/16)
Power Button: Turns display ON/OFF.
ZERO Button: Resets the display to 0.000". Hold
down until "S" flashes on the readout to enable
or
buttons.
IN/MM Button: Toggles the units displayed.
Button: Increases the current depth reading.
Button: Decreases the current depth reading.
Spindle RPM Readout: Displays the speed of
the spindle rotation.
Emergency Stop Button: Interrupts the flow of
power to the machine.
Variable Spindle Speed Knob: Changes the
speed of the spindle rotation.
Spindle Direction Selection Knob: Changes
the direction of spindle rotation.

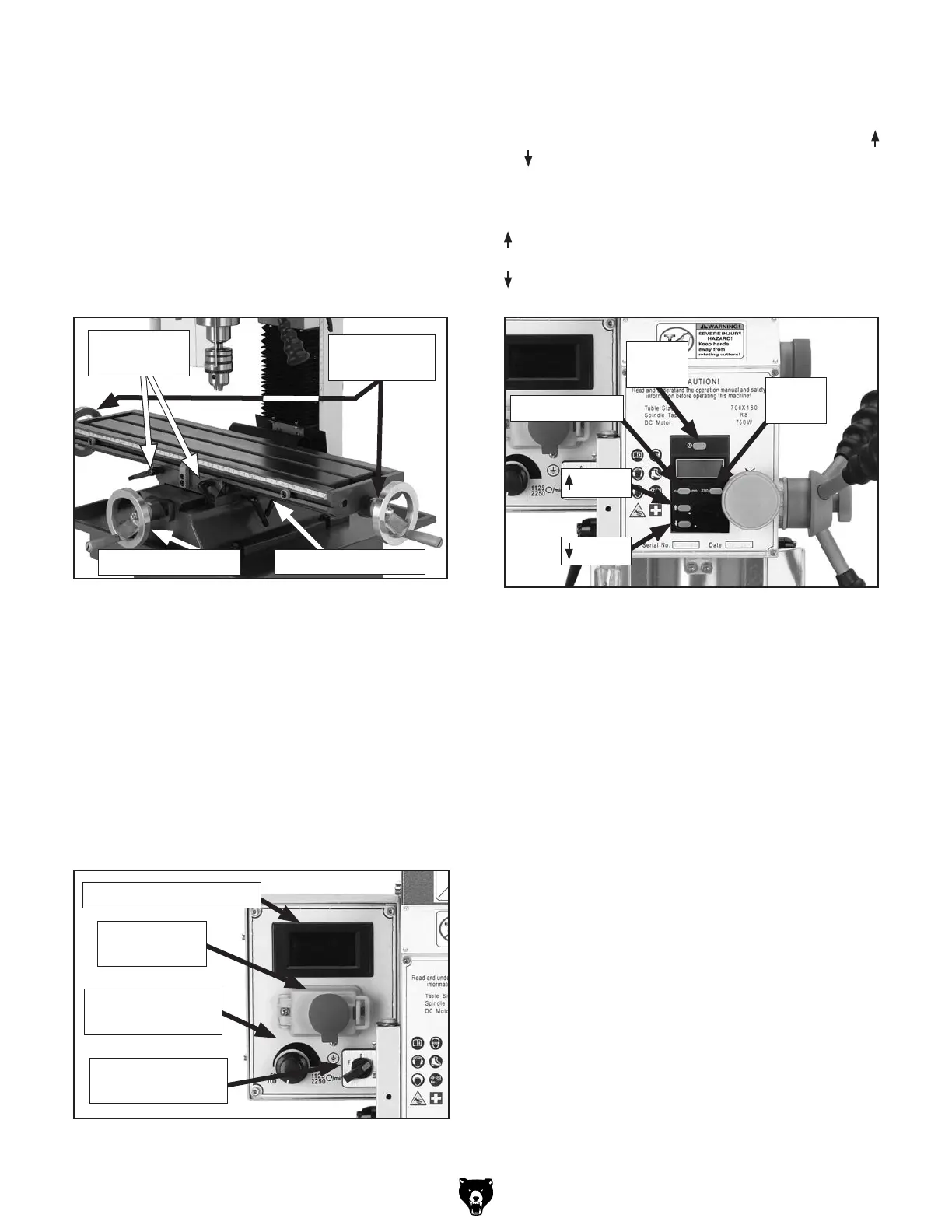

Figure 19. Control panel.
Spindle RPM Readout
Emergency
Stop Button
Variable Spindle
Speed Knob
Spindle Direction
Selection Knob
Figure 18. Table controls.
Cross Handwheel: Moves the table forward and
backward (Y-Axis).
Longitudinal Handwheels: Move the table from
side to side (X-Axis).
Longitudinal Table Locks: Lock the longitudinal
position of the table when tightened.
Cross Table Locks: Lock the cross position of
the table when tightened.
Cross Handwheel
Longitudinal
Handwheels
Cross Table Locks
Longitudinal
Table Locks
Figure 20. Digital readout unit controls.
IN/MM Button
Button
Button
ZERO
Button
Power
Button
