Model G0761 (Mfd. Since 10/13)
SECTION 3: SETUP
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at (570) 546-9663
for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi
-
tion of your shipment, inventory the contents.
Unpacking
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Additional People ....................................... 1
• Safety Glasses ........................ 1 Per Person
• Cleaner/Degreaser (Page 13) .... As Needed
• Disposable Shop Rags ............... As Needed
• Forklift ......................................................... 1
• Lifting Strap (rated for at least 1000 lbs.) ... 1
• Mounting Hardware (Page 15) ... As Needed
• Flat Head Screwdriver #2 ........................... 1
• Brass Hammer (Page 16) .......................... 1
• Mineral Spirits (Page 16) ............ As Needed
Needed for Setup
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

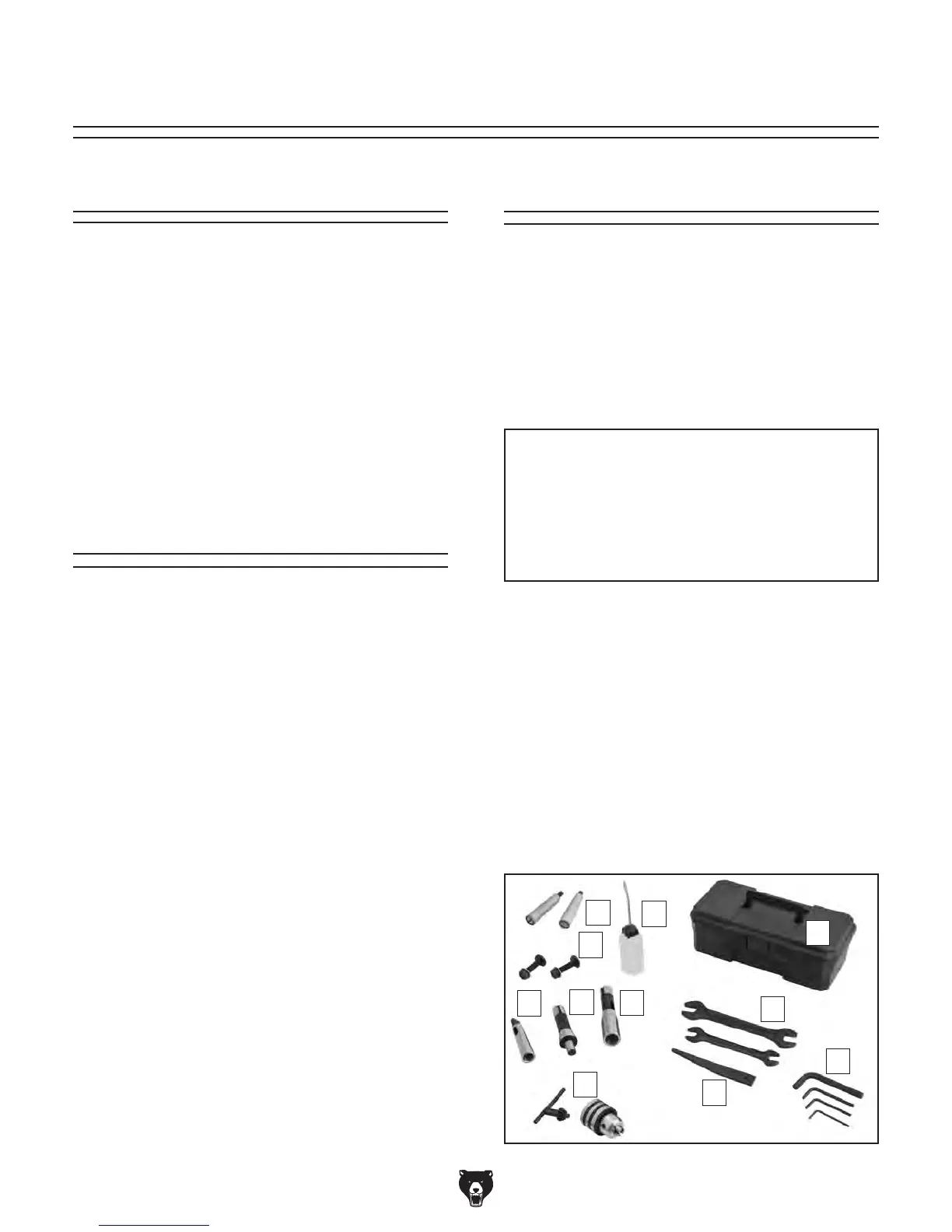

Small Item Inventory (Figure 3) Qty
A. Handwheel Handles w/Screws ................... 2
B. T-Bolts M12-1.75 x 55 w/Washers & Nuts .. 2
C. Bottle for Oil ............................................... 1
D. Toolbox ....................................................... 1
E. Wrenches 17/19, 22/24mm ....................1 Ea
F. Hex Wrenches 3, 4, 5, 10mm ................1 Ea
G. Drift Key ...................................................... 1
H. Drill Chuck w/Chuck Key B16, 1–13mm ..... 1
I. Spindle Sleeve R-8 x MT#3 ....................... 1
J. Drill Chuck Arbor R-8 x B16 ....................... 1
K. Spindle Sleeve MT#3 x MT#2 .................... 1
Figure 3. Small item inventory.
K
A
B
C
D
E
F
G
H
I
J
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
To Next Page
