Grizzly G0761 - Electrical Parts List

-48-
Model G0761 (Mfd. Since 10/13)

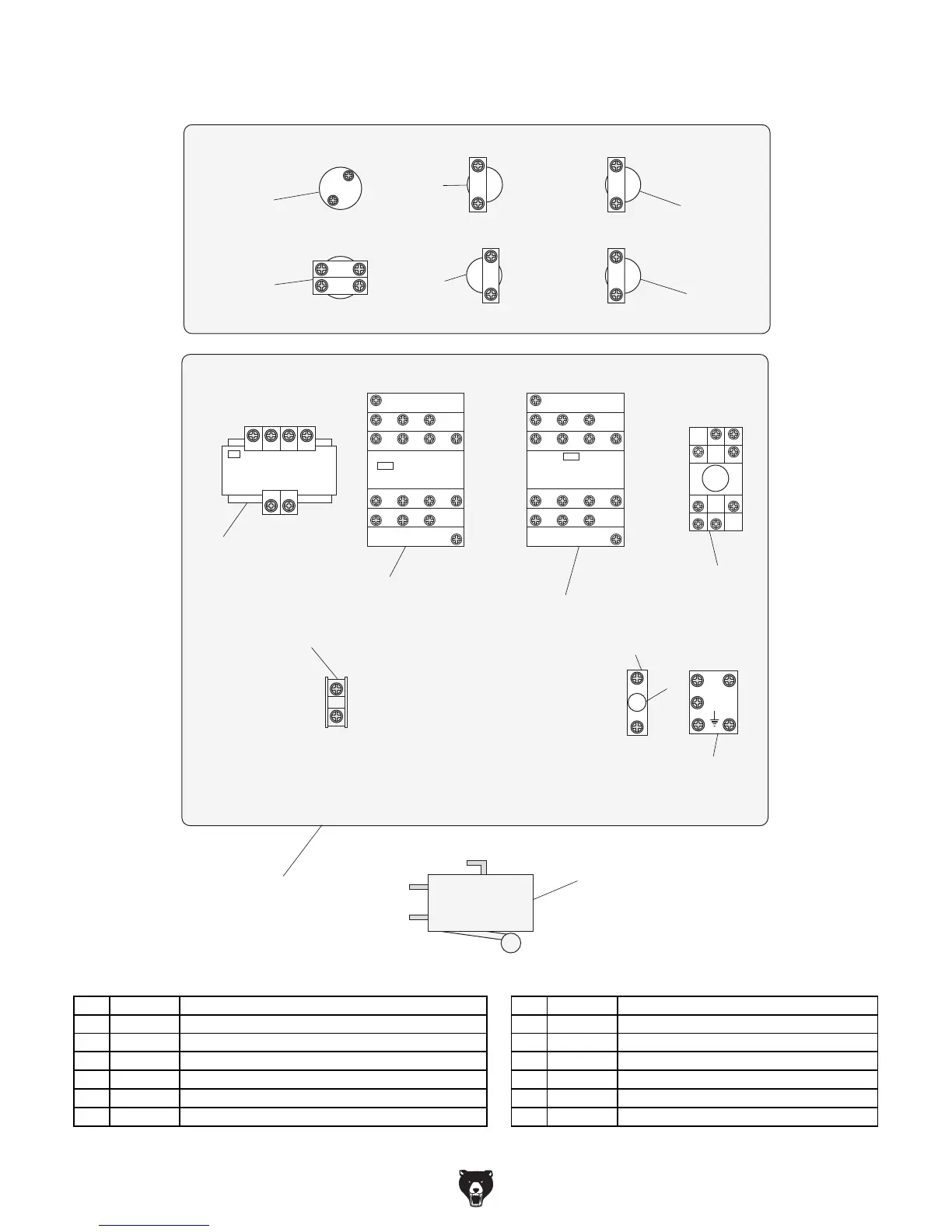

Electrical
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0761301 LAMP BUTTON MINGER AD62-22D/S 22MM 308 P0761308 TIMER OMRON H3Y-2
302 P0761302 START BUTTON MINGER LA125H-BE101C 22MM 309 P0761309 TERMINAL BAR 1P
303 P0761303 STOP BUTTON MINGER LA125H-BE102C 22MM 310 P0761310 FUSE HOLDER
304 P0761304 TAP SWITCH MINGER LA125H-BE101C 22MM 311 P0761311 FUSE 2A 250V CERAMIC
305 P0761305 E-STOP MINGER LA125H-BE 102C 22MM 312 P0761312 GROUND PLATE
306 P0761306 TRANSFORMER MTE JBK5-63VA 0-220V 313 P0761313 TAPPING SWITCH JUCHE LXW16-16/51C
307 P0761307 CONTACTOR SIEMENS 3TB41 24V 314 P0761314 ELECTRICAL BOX MOUNTING BOARD
Electrical Box
Ground
Plate
Spindle
Forward
Power
Lamp
43 NO
Control Panel
Timer
Omron H3Y-2
A1
1L1
13NO 21NC 31NC 43NO
14NO 22NC 32NC 44NO
3L2 5L3
2T1 4T2 6T3
A2
KM2 Contactor
Siemens 3TB41 29V
A1
1L1
13NO 21NC 31NC 43NO
14NO 22NC 32NC 44NO
3L2 5L3
2T1 4T2 6T3
A2
KM1 Contactor
Siemens 3TB41 29V
0 110
220
Transformer
Mach Tool Elec
JBK5-63VA
0 24
TC
X2
X1
Drilling/Milling
-Tapping Switch
3 4NO
43 NO
Emegency
Stop
21
NC
Spindle
Stop
21
NC
PE
12
14 13
9
8 5
14
Spindle
Reverse
43 NO
COM
NC
NO
301
302
302
303
304
305
306
307
307
308
309
310
311
312
313
314
