Model G0781 (Mfd. Since 2/15)
-17-
Assembly
Except for the handwheel handles, the G0781
mill/drill was fully assembled at the factory.
Use a standard screwdriver to attach handwheel
handles, as shown in Figure 10.

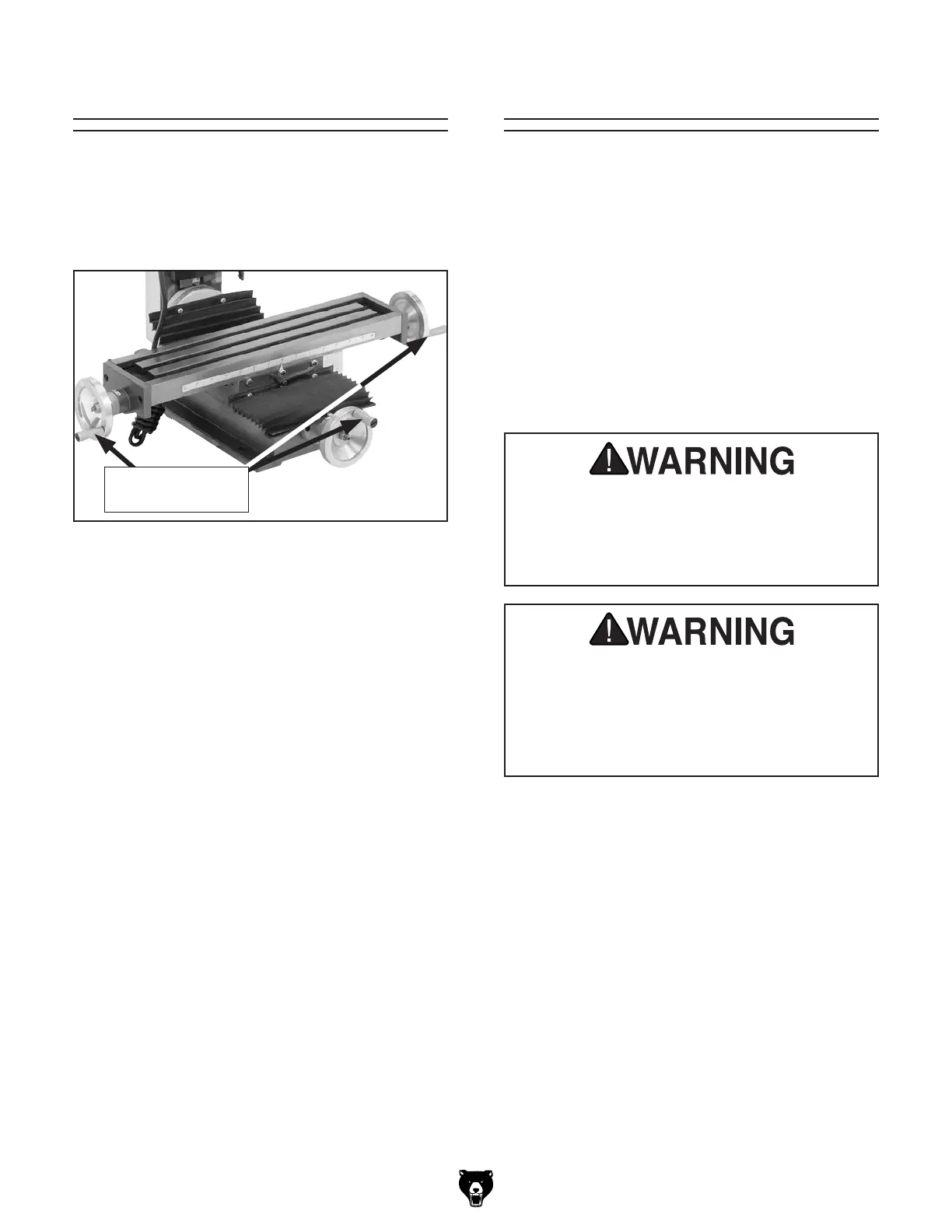

Figure 10. Handles attached to handwheels.
Table Handwheel
Handles
Test Run
Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The
Troubleshooting
table in the
SERVICE section of this manual can help.
The test run consists of the following: 1) The
motor powers up and runs correctly, and 2) the
Emergency Stop button stops spindle rotation.
To test run machine:
1. Clear all setup tools away from machine.
2. Make sure machine is properly lubricated
(see Page 29).
3. Ensure there are no obstructions around or
underneath spindle.
4. Press red Emergency Stop button (see
Figure 11 on Page 18).
5. Connect mill/drill to power source.
DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine
may result in malfunction or unexpect-
ed results that can lead to serious injury,
death, or machine/property damage.
Serious injury or death can result from
using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
