Grizzly G0781 User Manual

-44-
Model G0781 (Mfd. Since 2/15)

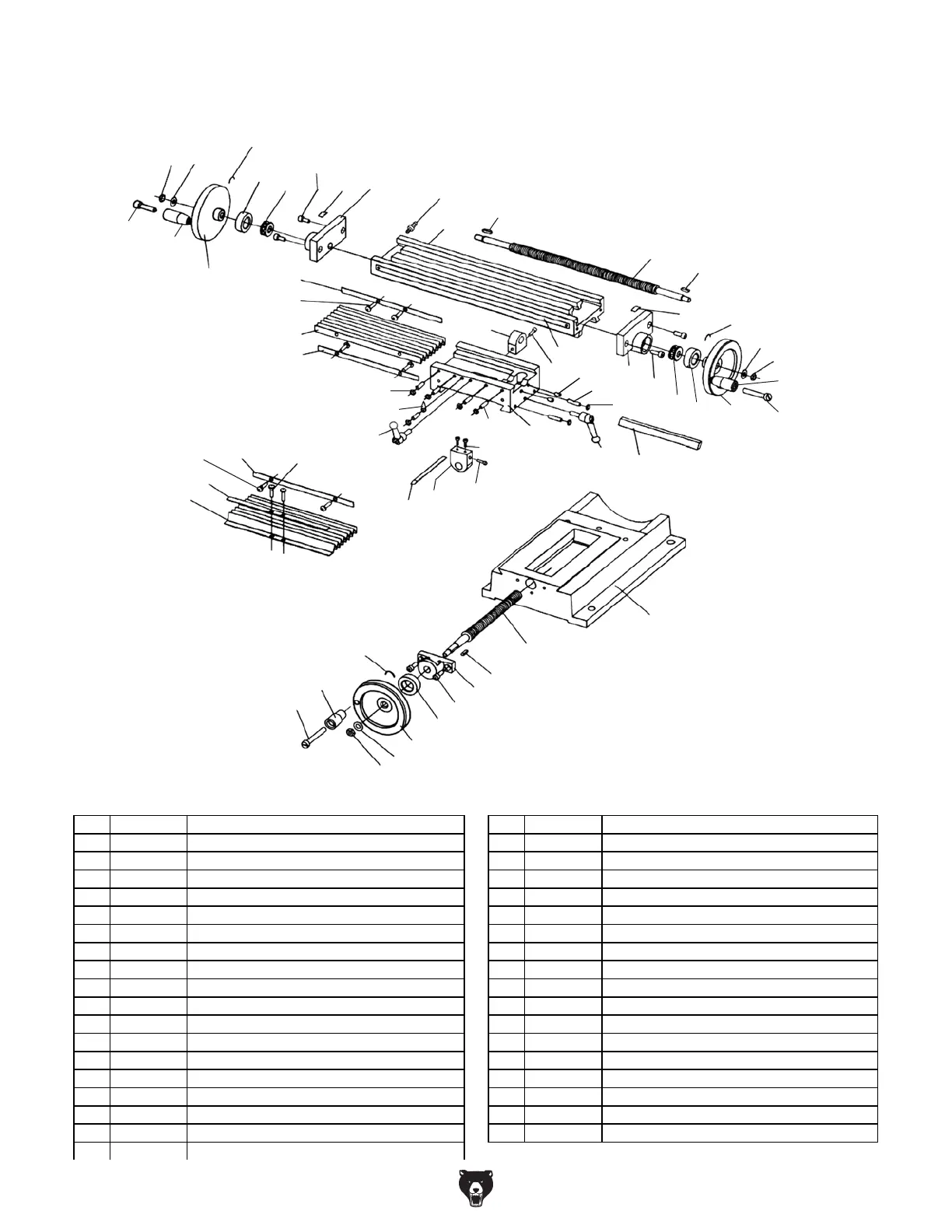

Table
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0781301 TABLE BASE 320 P0781320 TABLE
302 P0781302 X-AXIS LEADSCREW 321 P0781321 Y-AXIS LEADSCREW
303 P0781303 LEADSCREW BRACKET 322 P0781322 Y-AXIS SCALE
304 P0781304 CAP SCREW M6-1 X 12 323 P0781323 CAP SCREW M5-.8 X 20
305 P0781305 GRADUATED DIAL FOR HANDWHEELS 324 P0781324 Y-AXIS LEADSCREW NUT
306 P0781306 HANDWHEEL 90D X 8B X M8-1.25, DISHED 325 P0781325 SET SCREW M6-1 X 10 CONE-PT
307 P0781307 HEX NUT M8-1.25 326 P0781326 Y-AXIS GIB
308 P0781308 HANDWHEEL HANDLE 9 X 40MM 327 P0781327 SADDLE
309 P0781309 HANDLE SCREW M8-1.25 X 10, 9 X 36 329 P0781329 CAP SCREW M6-1 X 8
310 P0781310 FRONT WAY COVER 330 P0781330 X-AXIS GIB
311 P0781311 FRONT WAY BAR 331 P0781331 X-AXIS LEADSCREW NUT
312 P0781312 REAR WAY BAR 332 P0781332 FLAT SPRING FOR HANDWHEEL
313 P0781313 PHLP HD SCR M6-1 X 8 333 P0781333 FLAT WASHER 8MM
314 P0781314 REAR WAY COVER 334 P0781334 KEY 3 X 3 X 16
315 P0781315 REAR WAY COLUMN BAR 335 P0781335 ADJUSTABLE HANDLE 45L, M6-1 X 25
316 P0781316 Y-AXIS BEARING HOUSING 336 P0781336 HEX NUT M6-1
317 P0781317 DIAL INDICATOR 337 P0781337 SET SCREW M6-1 X 25
318 P0781318 THRUST BEARING 51200 338 P0781338 SCALE INDICATOR
319 P0781319 COOLANT HOSE CONNECTOR M10-1.5 X 10
334
332
335
337
336
338
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
325
326
327
329
330
331
316
334
304
318
305
307
335
333
333
317
336
337
312
313
306
305
304
332
332
323
313
333
307
334
324
306
309
308
309
308
