-24-
Model G0781 (Mfd. Since 2/15)
Moving Table
Longitudinal (X-Axis) Travel
Cross (Y-Axis) Travel
To move the table along the Y-axis, loosen the
Y-axis table lock shown in Figure 18, then use the
handwheel in front of the table in the same man-
ner as the X-axis handwheel.

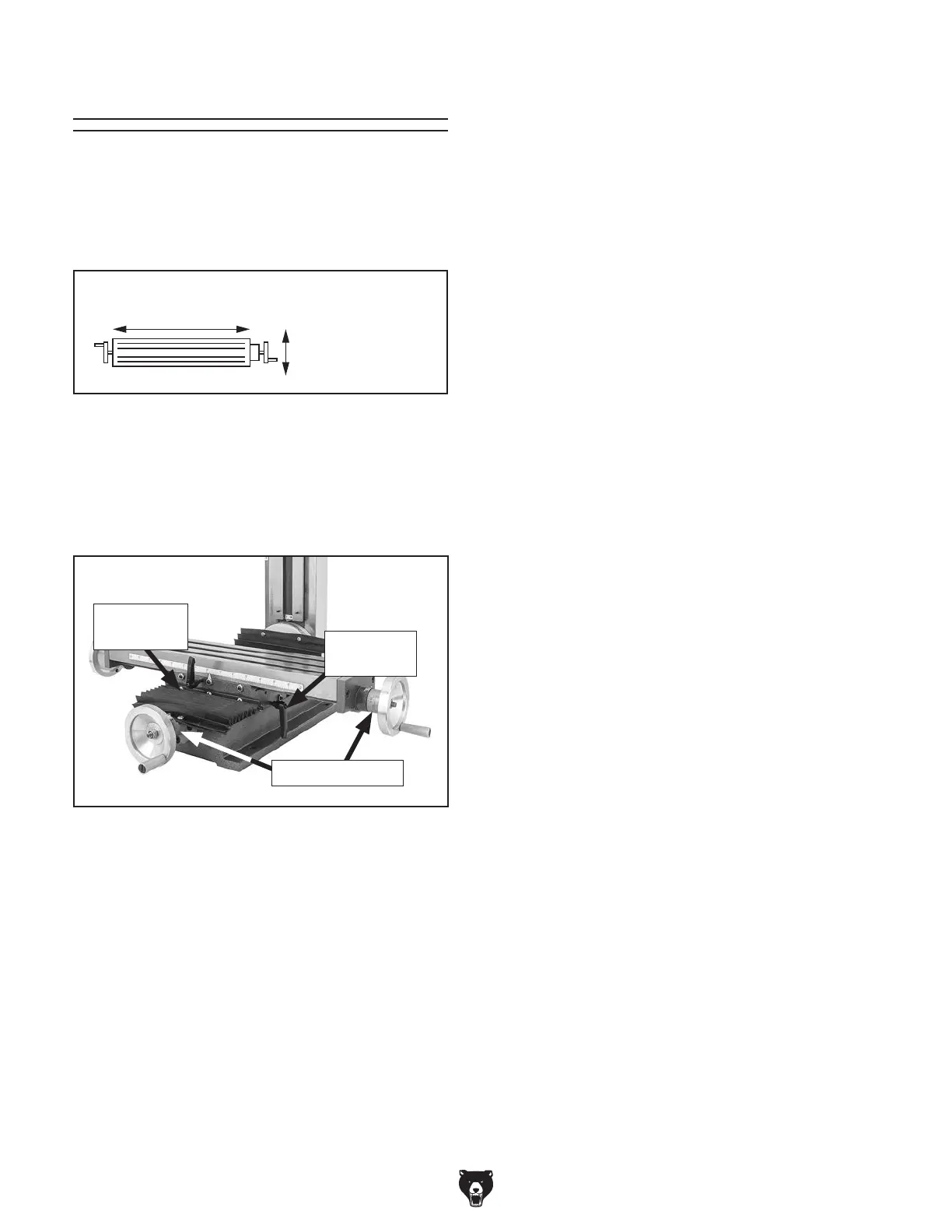

Figure 18. Location of graduated dials.
Y-Axis
Lock Lever
Graduated Dials
X-Axis
Lock Lever
The table travels in two directions and is con-
trolled by handwheels, as illustrated in Figure 17.
• Longitudinal (X-axis)
• Cross (Y-axis)
Longitudinal (X-Axis) Travel
(Left & Right)
Cross (Y-Axis) Travel
(In & Out)
Figure 17. Directions of table movement.
Loosen X-axis lock lever shown in Figure 18. Turn
X-axis handwheels to adjust work table to desired
location. Tighten X-axis lock lever before turning
machine ON.
Both the X- and Y-axis feature table locks. To
ensure unexpected movement of the table does
not occur during precision operations, use these
locks to secure the table along any axis that
should not move for any given operation.
The table handwheels have graduated dials in
0.001" increments, with one full revolution equal-
ling 0.0625". These dials provide an easy way to
gauge precise table movements while milling.
