Grizzly G0781 User Manual

Model G0781 (Mfd. Since 2/15)
-43-

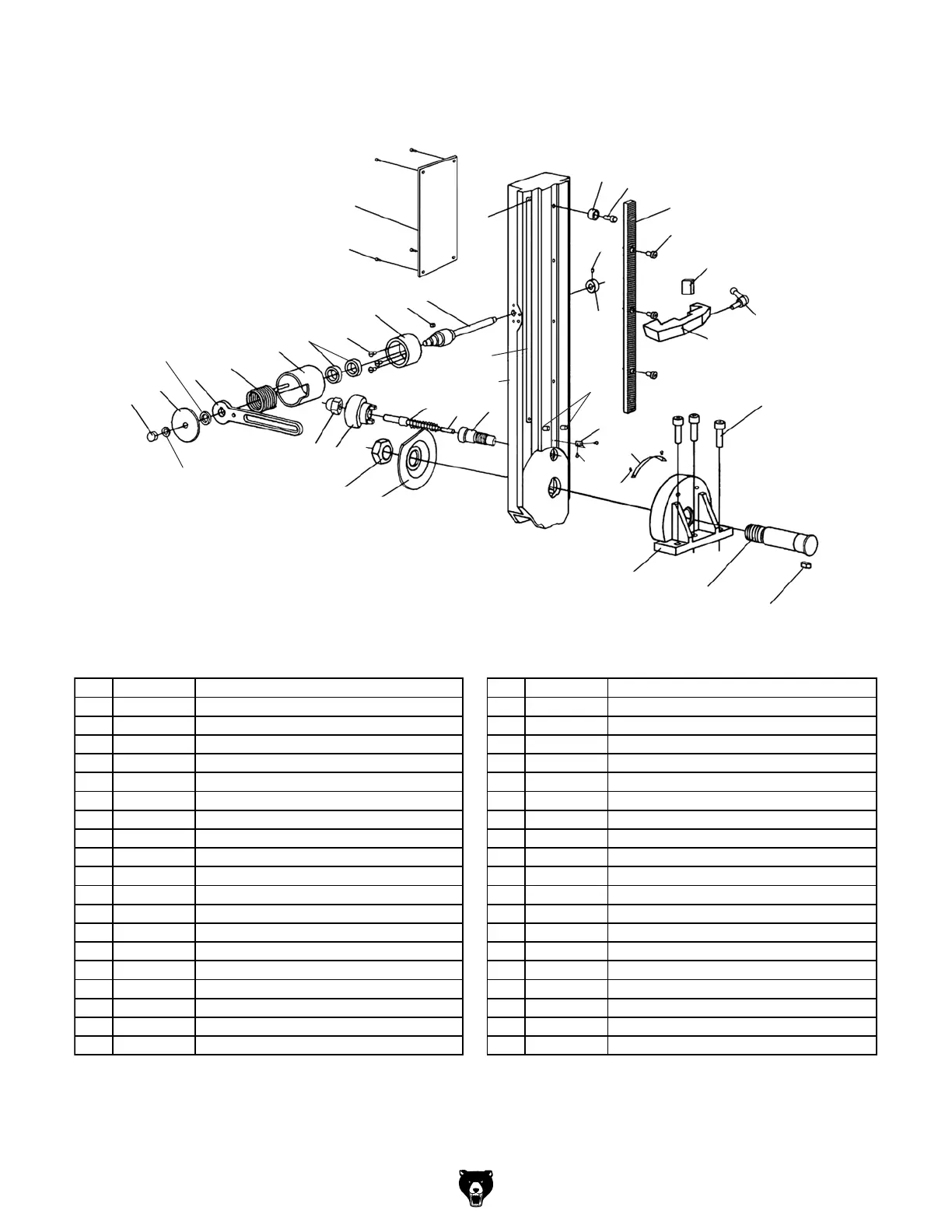

Column
201
202
203
204
205
206
207
208
209
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
207
207
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0781201 FIXED COLUMN STOP 222 P0781222 SPRING SUPPORT
202 P0781202 CAP SCREW M6-1 X 20 223 P0781223 RETURN SPRING SHAFT
203 P0781203 COLUMN RACK 9-1/2" 224 P0781224 LOCK COLLAR
204 P0781204 CAP SCREW M6-1 X 14 225 P0781225 SET SCREW M5-.8 X 6 CONE-PT
205 P0781205 DEPTH STOP GIB 226 P0781226 COLUMN SCALE 9"
206 P0781206 COLUMN DEPTH STOP 227 P0781227 COLUMN
207 P0781207 RIVET 2 X 5MM NAMEPLATE, ALUMINUM 228 P0781228 ACORN NUT M6-1
208 P0781208 Z-AXIS INDICATOR 229 P0781229 COLUMN LOCK
209 P0781209 HEADSTOCK ANGLE SCALE 230 P0781230 COMPRESSION SPRING
211 P0781211 CAP SCREW M10-1.5 X 35 231 P0781231 LOCK PIN
212 P0781212 COLUMN COVER 232 P0781232 LOCK SLEEVE
213 P0781213 ACORN NUT M8-1.25 233 P0781233 HEX NUT M24-3
214 P0781214 FLAT WASHER 8MM 234 P0781234 CUT WASHER 24 X 95MM
215 P0781215 RETURN SPRING COVER CAP 235 P0781235 PIVOT PLATE
216 P0781216 SPACER 236 P0781236 COLUMN PIVOT SHAFT M24-3 X 33, 105L
217 P0781217 RETURN SPRING BAR 237 P0781237 KEY 8 X 8 X 12
218 P0781218 TORSION SPRING 238 P0781238 LIMIT BLOCK STOP PIN
219 P0781219 RETURN SPRING COVER 239 P0781239 PHLP HD SCR M4-.7 X 6
220 P0781220 BUSHING 240 P0781240 KEY 4 X 4 X 8
221 P0781221 FLAT HD SCR M5-.8 X 10 241 P0781241 ADJUSTABLE HANDLE 45L, M6-1 X 25
