Model G0785 (Mfd. Since 3/15)
-11-
Voltage Conversion
to 240V
4. Use wire nuts to connect wires as indicated in
Figure 4. Twist all three wire nuts onto their
respective wires and wrap them with electri-
cal tape so they will not come loose.
5. Close and secure motor junction box.
6. Install a 6-15 plug according to manufac-
turer's instructions.
120 Volt Motor
Ground
Paddle
Switch
Neutral
Hot
Ground
120 VAC
5-15 Plug
240 Volt Motor
Paddle
Switch
Hot
Hot
Ground
6-15 Plug
(As Recommended)
240
VAC
G
Ground
Wt
Wt
Start
Capacitor
200MFD
125VAC
Run
Capacitor
30MFD
250VAC
Start
Capacitor
200MFD
125VAC
1
2
Run
Capacitor
30MFD
250VAC
Wt

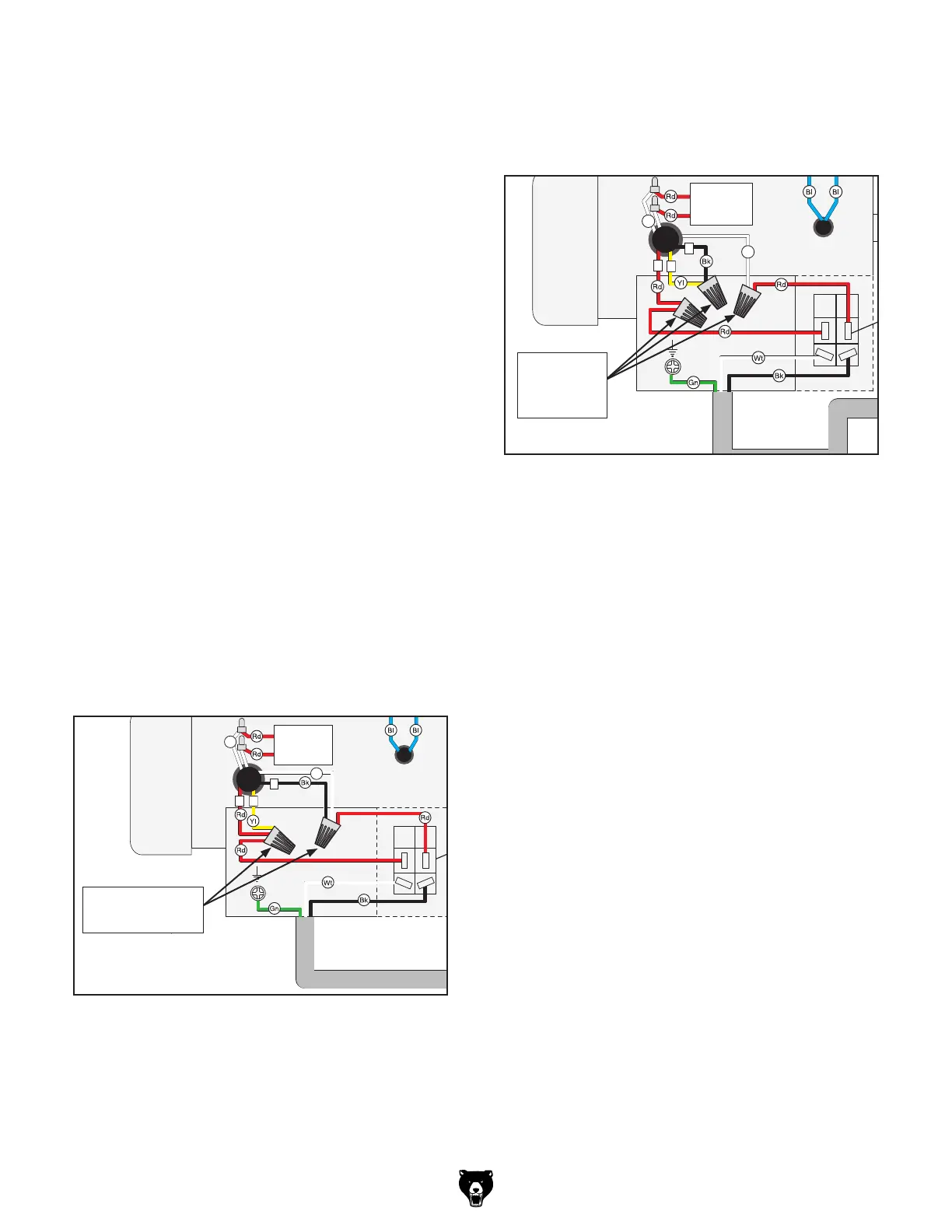

Figure 4. Model G0785 rewired to 240V.
Connect
Wires with
Nuts Here
The voltage conversion MUST be performed by
an electrician or qualified service personnel. To
perform the voltage conversion, rewire the motor
to the new voltage and install the correct plug,
according to the provided wiring diagram.
Note: If the diagram included on the motor con-
flicts with the one on Page 28 in this manual, the
motor may have changed since the manual was
printed. Use the diagram provided inside the mo-
tor wiring junction box.
Items Needed Qty
• Phillips Head Screwdriver #2 ..................... 1
• Electrical Tape ............................ As Needed
• Wire Nut (14 AWG x 3) ............................... 1
• 6-15 Plug .................................................... 1
To convert the Model G0785 to 240V:
1. DISCONNECT MACHINE FROM POWER!
2. Remove 5-15 plug from power cord.
3. Open motor junction box, then loosen wire
nuts indicated in Figure 3.
Figure 3. Location of wire nuts to be loosened
on Model G0785 when converting voltage.
Ground
Paddle
Switch
Neutral
Hot
Ground
120 VAC
5-15 Plug
240 Volt Motor
Paddle
Switch
Hot
Hot
Ground
6-15 Plug
(As Recommended)
240
VAC
G
Ground
Wt
Wt
Start
Capacitor
200MFD
125VAC
Run
Capacitor
30MFD
250VAC
Start
Capacitor
200MFD
125VAC
2
1
2
Run
Capacitor
30MFD
250VAC
Wt
Wt
Loosen These
Wire Nuts
To Next Page
