Tightening Impeller
Periodically check the impeller to make sure it is
tight on the motor shaft. Any unusual vibration or
noise may be an indication that the impeller has
loosened. A set screw and a left-hand cap screw
secure the impeller to the shaft. These can be
accessed through the inlet cover, as shown in
Figure 23. Tighten the fasteners as needed.
Tools Needed Qty
Phillips Screwdriver #2 ...................................... 1
Hex Wrench 5mm .............................................. 1
Hex Wrench 4mm .............................................. 1
To tighten impeller:
1. DISCONNECT MACHINE FROM POWER!
2. Remove (12) M5-.8 x 10 Phillips head screws
(see Figure 23) that secure inlet housing
cover, then set inlet cover aside.

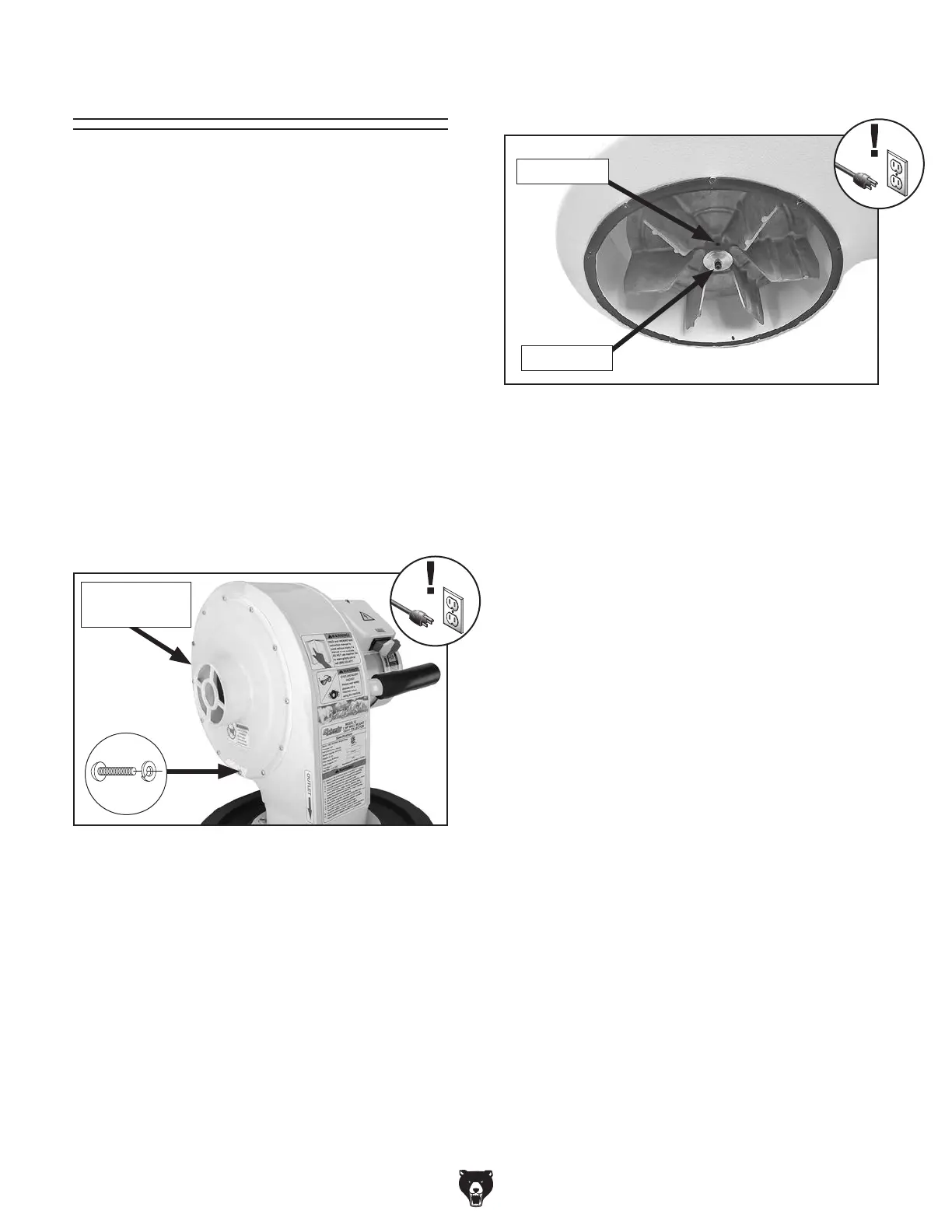

Figure 23. Inlet housing cover completely
installed.
x 12
Inlet Housing
Cover
3. Loosen
5
⁄16-18 x
5
⁄16 set screw on impeller (see
Figure 24).
4. Tighten M6-1 x 30 left-hand cap screw that
secures impeller to shaft.
5. Tighten set screw loosened in Step 3.
6. Re-install inlet housing cover.
Figure 24. Impeller screw locations.
Set Screw
Cap Screw
