Grizzly G0890 User Manual

-16 -
G0890/G0891 (Mfd. Since 06/19)
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.

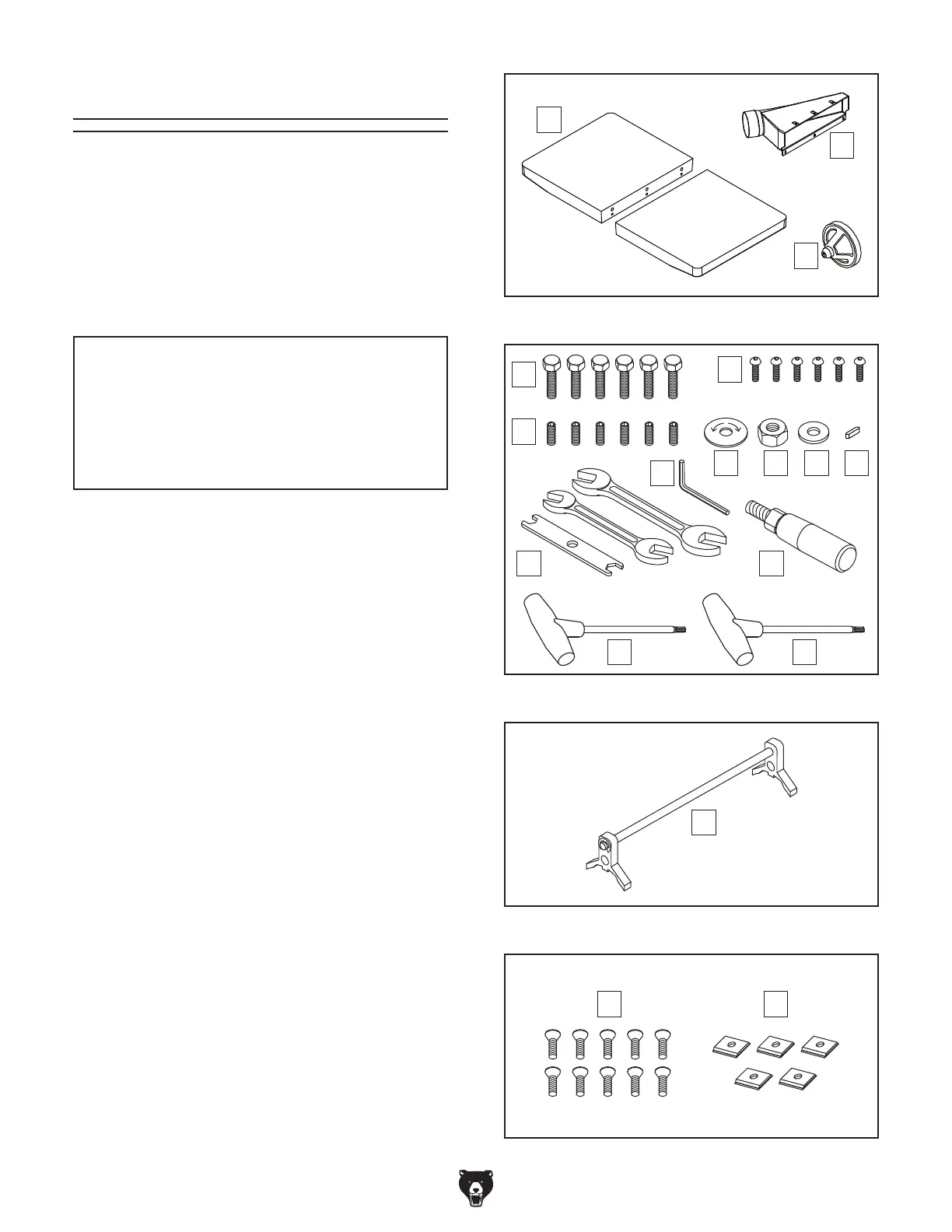

Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box 1 (Figure 4) Qty
A. Planer Unit (Not Shown) ............................. 1
B.
Cast-Iron Extension Tables ........................ 2
C. Dust Port .................................................... 1
D.
Headstock Elevation Handwheel ................ 1
Tools and Hardware (Figure 5)
E.
Hex Bolts M8-1.25 x 25 (Ext. Tables) ........ 6
F.
Button Head Cap Screws M6-1 x 12 .......... 6
G.
Set Screws M8-1.25 x 20 (Ext. Tables) ..... 6
H.
Hex Wrench 4mm ...................................... 1
I.
LOW/HIGH Direction Label (Handwheel) ... 1
J.
Hex Nut M10-1.25 (Handwheel) ................. 1
K.
Flat Washer 10mm (Handwheel) ............... 1
L.
Key 4 x 4 x 10 (Handwheel) ....................... 1
M.
Handwheel Handle (Handwheel) ............... 1
N.
Wrenches 10/13, 12/14, 17/19mm .......1 Ea.
O. T-Handle Torx Driver T-25 ......................... 1
P. T-Handle Torx Driver T-30 ......................... 1
B
D
C
Figure 4. Box inventory.
G0891 Only (Figure 7)
R. Flat Head Torx Screws #10-32 x
1
⁄2" ........ 10
S. Indexable Carbide Inserts 15 x 15 x 2.5 .... 5
G0890 Only (Figure 6)
Q. Knife-Setting Jig ......................................... 1
Figure 6. Tools and hardware (G0890 only).
Q
Figure 7. Tools and hardware (G0891 only).
R S
Figure 5. Tools and hardware.
LOW HIGH
E
F
G
I J K L
N M
H
PO
