G0890/G0891 (Mfd. Since 06/19)
-5-
Internal Components
Like all machinery there is potential danger when operating this machine. Accidents are fre-
quently caused by lack of familiarity or failure to pay attention. Use this machine with respect
and caution to decrease the risk of operator injury. If normal safety precautions are overlooked
or ignored, serious personal injury may occur.
Workpiece
A
C
B
D
G
E
F
Front Rear

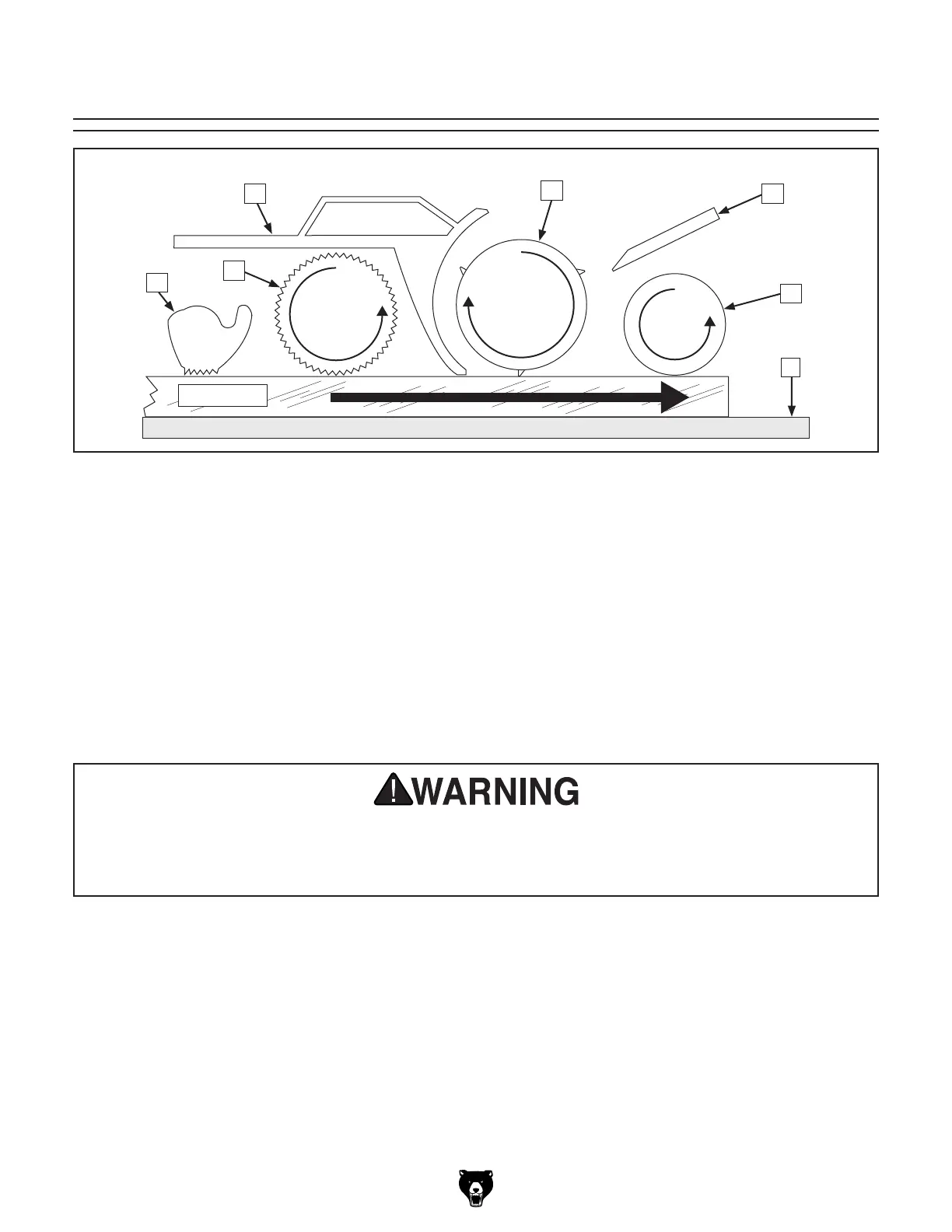

Figure 2. Workpiece path and major planing components (side cutaway view).
A.
Anti-Kickback Fingers: Provide additional
safety for the operator.
B.
Serrated Infeed Roller: Pulls the workpiece
toward the cutterhead.
C. Chip Breaker: Breaks off chips created by
the cutterhead to prevent tear out and diverts
the chips to the dust port.
D. Cutterhead: Holds the knives/inserts that
remove material from the workpiece.
E
. Chip Deflector: Directs chips into the dust
port.
F
. Rubber Outfeed Roller: Pulls the workpiece
through the planer.
G
. Planer Table: Provides a smooth and level
path for the workpiece as it moves through
the planer.
