-4-
G0890/G0891 (Mfd. Since 06/19)
Controls &
Components
Refer to Figure 1 and the following descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and stay safe when operat-
ing this machine.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
A. Headstock Height Handwheel: Raises and
lowers headstock to accommodate different
workpiece thicknesses. One complete revolu-
tion moves the headstock approximately
5
⁄32"
(4mm).
B.
Feed Rate Control Knob: Selects 28 FPM
feed rate when pushed in and 16 FPM feed
rate when pulled out.
C.
Magnetic ON/OFF Switch:
— Green start button turns motor ON when
pressed.
— Red Stop button turns motor OFF when
pressed; for safety purposes, this button
will remain depressed and prevent restart-
ing until reset. Reset by rotating clockwise
until it pops out.
D. Depth Limiter: Limits depth of cut to a maxi-
mum of
1
⁄8" at full width.
E. Dust Port: Connects to a dust collection
system to extract shavings and dust during
operation. Dust port size 4".

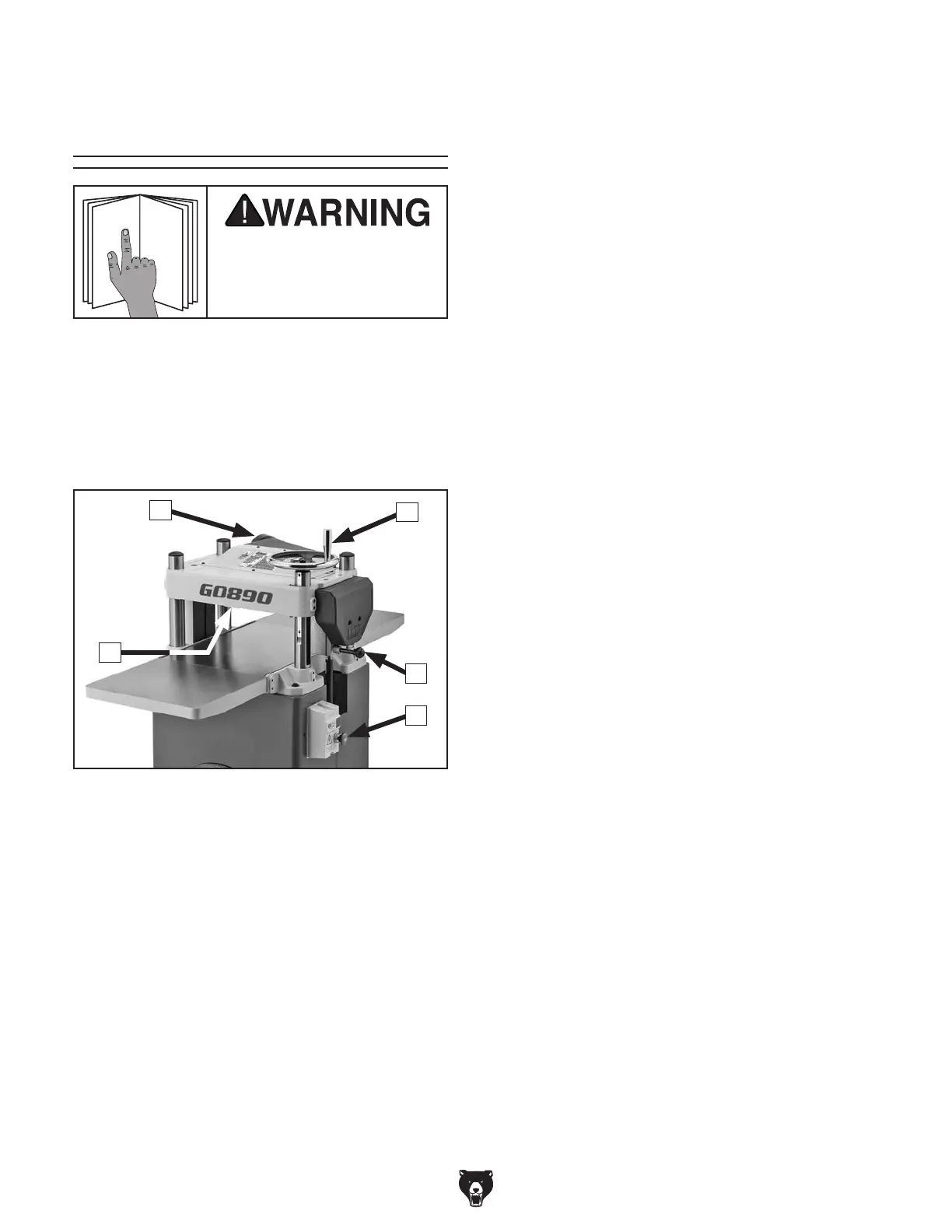

Figure 1. Main controls and components.
A
B
C
E
D
