NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

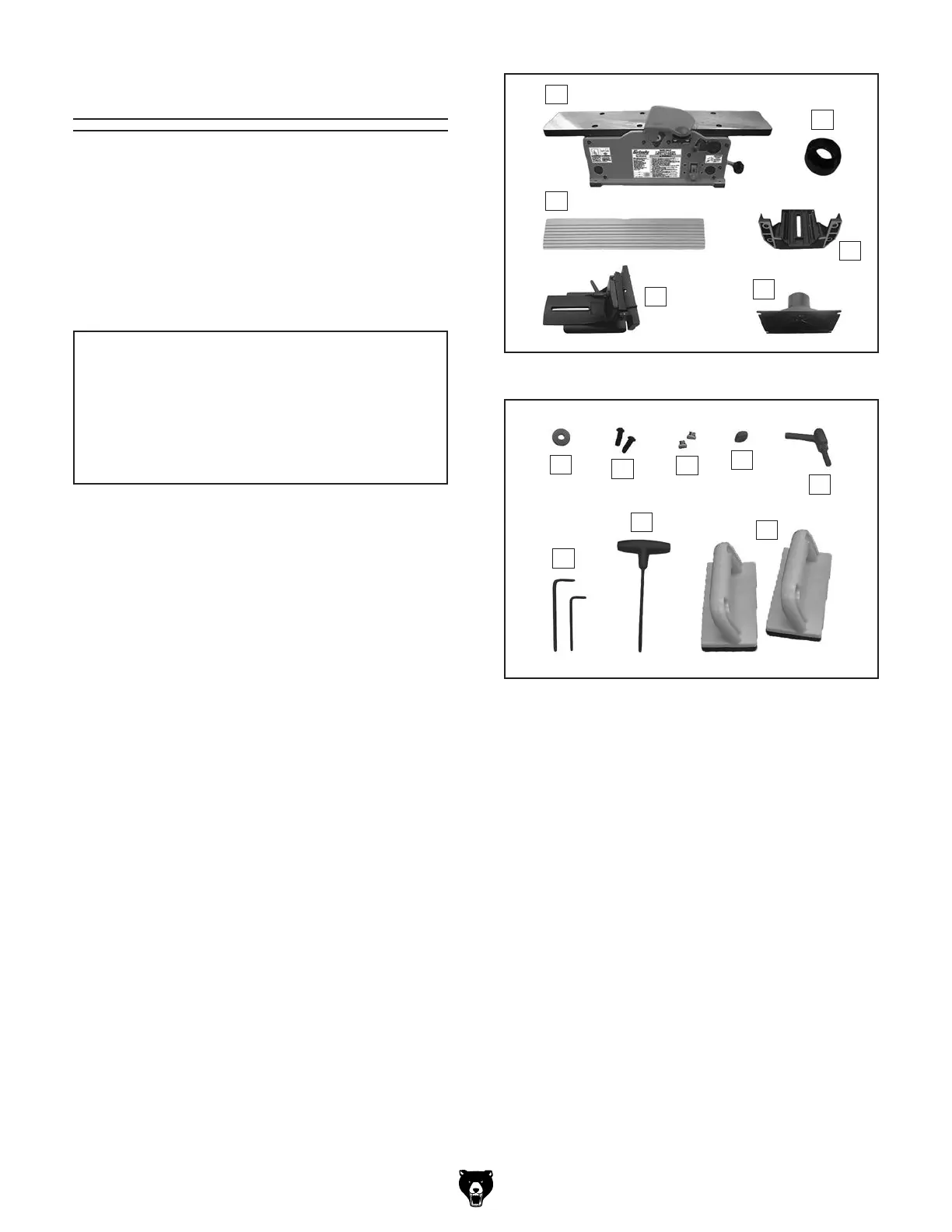

Figure 4. Box inventory.
Figure 5. Hardware and tools inventory.
Model G0945/G0946/G0947 (Mfd. Since 06/21)
-17-
A
*G0946 Shown
B
C
D
E
G
F
H
I
J
K
L
M
N
Inventory
Box Inventory (Figure 4) Qty
A. Jointer w/Cutterhead Guard ........................ 1
B.
Fence........................................................... 1
C.
Fence Slide Bracket .................................... 1
D.
Dust Port ..................................................... 1
E.
Fence Support Bracket ............................... 1
F.
Dust Port Adaptor 2
1
⁄2" (G0947) .................. 1
Hardware and Tools (Figure 5) Qty
G. Fender Washer 8mm ................................... 1
H.
Button Head Cap Screws M6-1 x 16 ........... 2
I.
T-Slot Nuts 7, M6-1 ...................................... 2
J.
Square Nut M8-1.25 .................................... 1
K.
Fence Slide Lock Handle ............................ 1
L.
Hex Wrenches 2.5, 4mm .......................1 Ea.
M.
T-Handle Torx Wrench T-25 (G0946/G0947) . . 1
N.
Push Blocks ................................................. 2
