For Your Own Safety Read Instruction Manual Before Operating Jointer
a) Wear eye protection.
b) Always keep cutterhead and drive guards in place and in proper operating condition.
c) Never cut deeper than
1
⁄8" in one pass.
d) Always use hold-down or push blocks when jointing material narrower than 3" or planing
material thinner than 3".
e) Never perform cuts on pieces shorter than 10" in length.
Model G0945/G0946/G0947 (Mfd. Since 06/21)
-3-

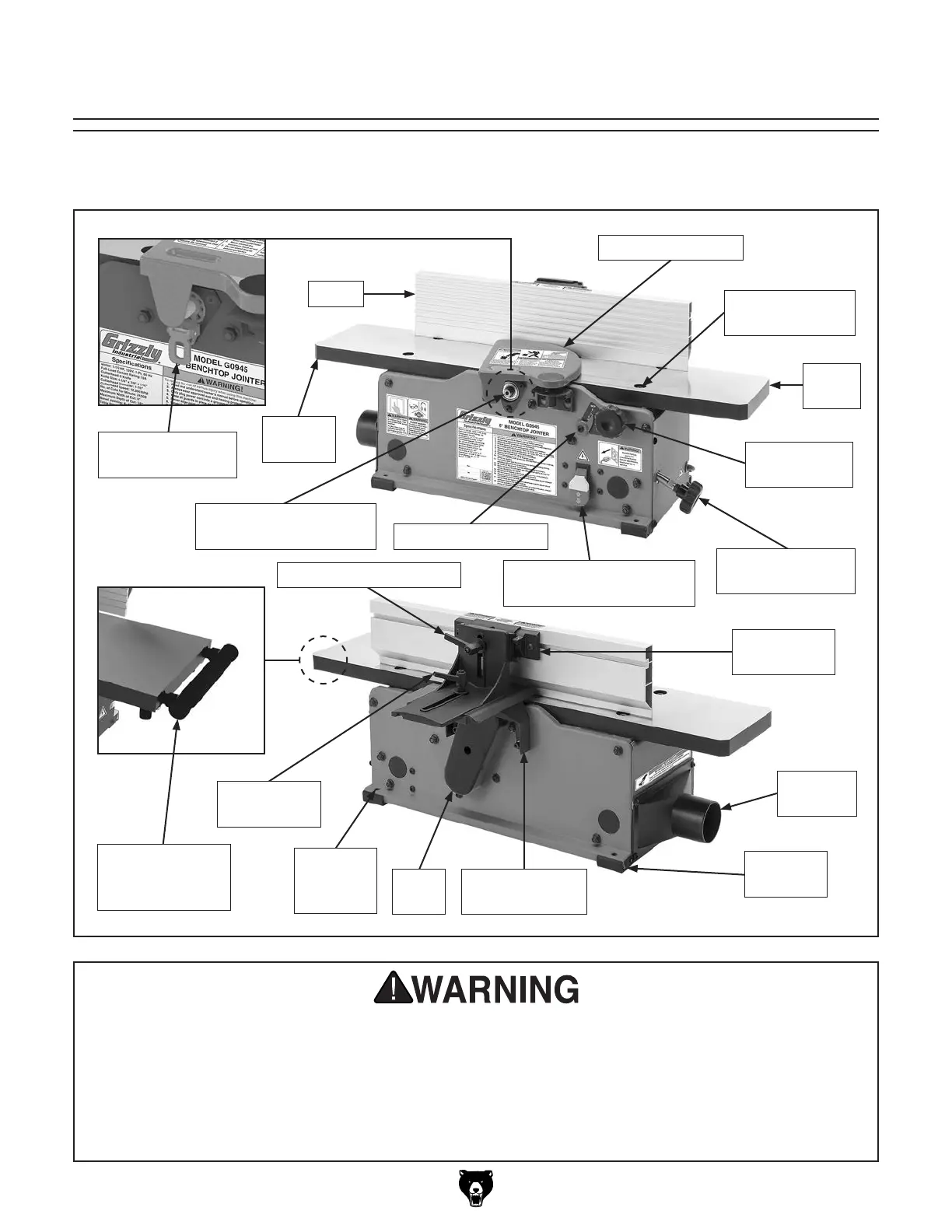

Identification
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Fence
Outfeed
Table
Fence Tilt Lock Handle
ON/OFF Paddle Switch
w/Removable Key
Infeed Table
Adjustment Knob
Table Height
Lock Knob
Infeed
Table
Table Leveling
Adjuster (1 of 8)
Cutterhead Guard
Fence Slide
Lock Handle
Belt
Cover
Fence Support
Bracket
Foot Pad
(1 of 4)
2
1
⁄2" Dust
Port
Fence Slide
Bracket
Depth-of-Cut Scale
Cutterhead Rotation
Guide (G0946/G0947)
Cutterhead Lock
(G0945)
Mounting
Hole
(1 of 4)
Infeed/Outfeed
Table Extension
(G0947)
