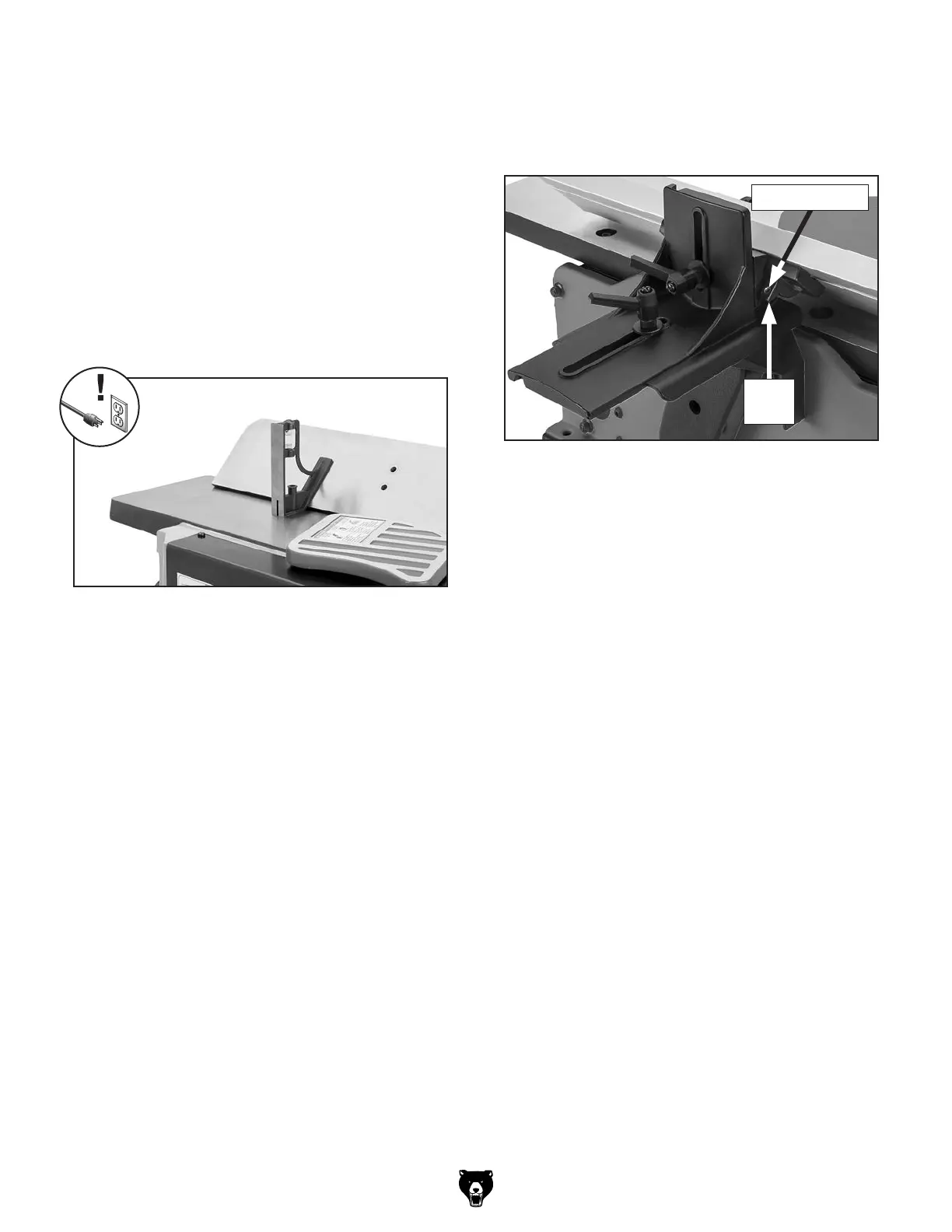

Figure 56. Adjusting 45º outward fence angle.
Figure 55. Example of checking 45º fence angle
with combination square.
Model G0945/G0946/G0947 (Mfd. Since 06/21)
-45-
8. Adjust fence until it is flush against combina-
tion square, then tighten 45º set screw on
fence slide bracket until it contacts stop block
(see Figure 56).
9.
Loosen fence tilt lock handle and adjust fence
to 90º position, then tighten handle.
10.
Place combination square on jointer table
with 90º side against fence, and verify fence
is flush against combination square.
— If fence is flush against combination square,
fence positive stops are set correctly.
— If fence is not flush against combination
square, perform Steps 5–10 to properly
set fence positive stops.
Stop
Block
45º Set Screw
6. Loosen fence tilt lock handle and adjust fence
to 45º outward position (see Figure 55), then
tighten handle.
7.
Place combination square on jointer table
with 45º outward side against fence (see
Figure 55).
— If fence is flush against combination
square, 45º outward fence positive stop is
set correctly. Proceed to Step 9.
— If fence is not flush against combination
square, proceed to Step 8.
