Model G0948 (Mfd. Since 08/21)
Aligning Fence
To ensure cutting accuracy, the fence should be
aligned parallel with the blade. This is achieved by
aligning the fence with the miter slot.
Note:
Occasionally, even after aligning the fence,
a symptom known as "blade lead" will develop,
requiring the fence to be skewed slightly to
compensate for the blade lead problem. Refer
to Blade Lead, beginning on
Page 56 for more
information on blade lead and skewing the fence.
Item(s) Needed Qty
Hex Wrench 4mm .............................................. 1
To align fence:
1.
DISCONNECT MACHINE FROM POWER!
2. Make sure table is aligned with blade (see
Adjusting Miter Slot Parallelism on Page 27
for instructions).
Aligning Fence
3. Determine which trunnion is on low side
of table, then remove two hex bolts (see
Figure
33 on Page 26) from low trunnion.
4.
Insert a shim, such as a thin washer, between
table and low trunnion at each mounting
location.
5.
Re-install and tighten trunnion hex bolts, then
repeat Step 2 to verify adjustment.
4
. Loosen (2) fence adjustment cap screws
(see
Figure 35), adjust fence parallel with
miter slot, then tighten cap screws to secure
setting.
3.
Install fence on right side of blade, aligned
with edge of miter slot, then lock it in place.
— If fence is parallel with miter slot, no
adjustment is necessary.
— If fence is not parallel with miter slot, pro-
ceed to Step 4.

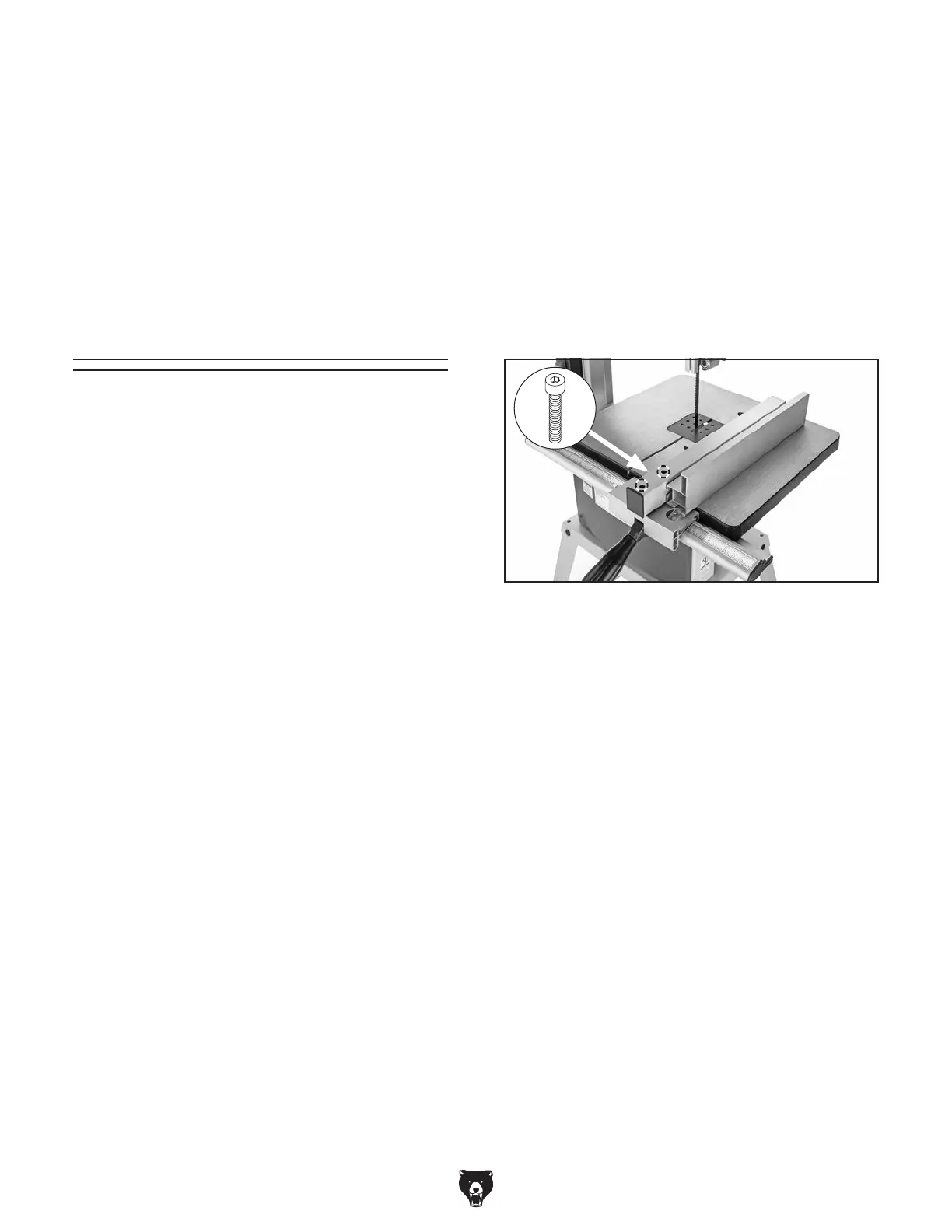

Figure 35. Location of fence adjustment cap
screws.
x 2
To Next Page
