Grizzly G0948 User Manual

Model G0948 (Mfd. Since 08/21)
-59-
READ ELECTRICAL SAFETY
ON PAGE 58!
Bandsaw Body
LED Driver
LED-5V700
Hopestar
120V ~ 5.5W
E337681
Ground Ground
120V Motor
5-15 Plug
120VAC
Ground
Hot
Neutral
Ground
Start Capacitor
CBB60 35uF
350VAC
LED Light
Nanjing
12V 1W
DKLD AN-18
250V 6A
Light Switch
ON/OFF Switch
DKLD AN17
125V 20A
+
–
L
N

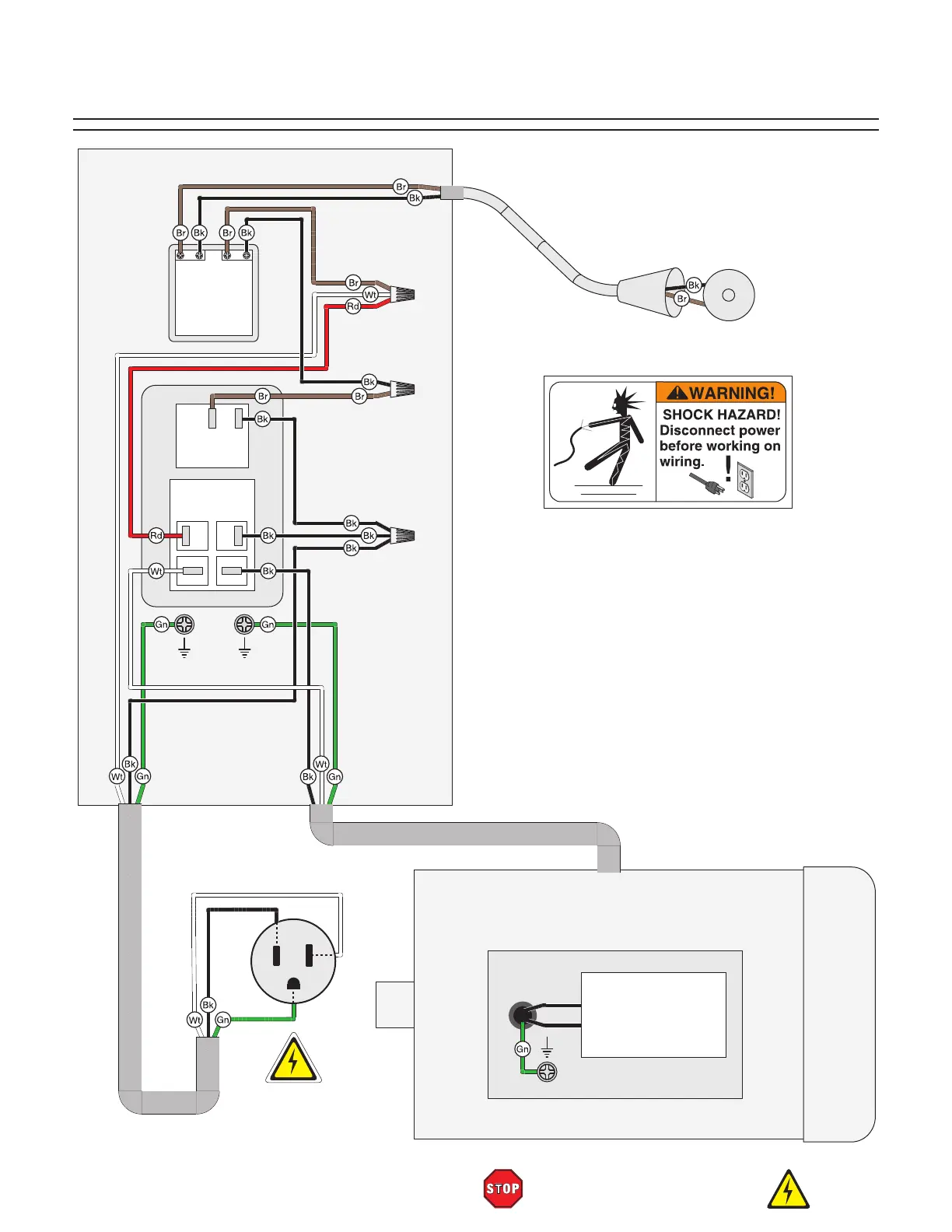

Wiring Diagram
wiring diagram
