Model G0948 (Mfd. Since 08/21)
Site Considerations
Workbench Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein-
forcement to support the weight of the machine
and workpiece materials.
28"
21
1
/
2
"

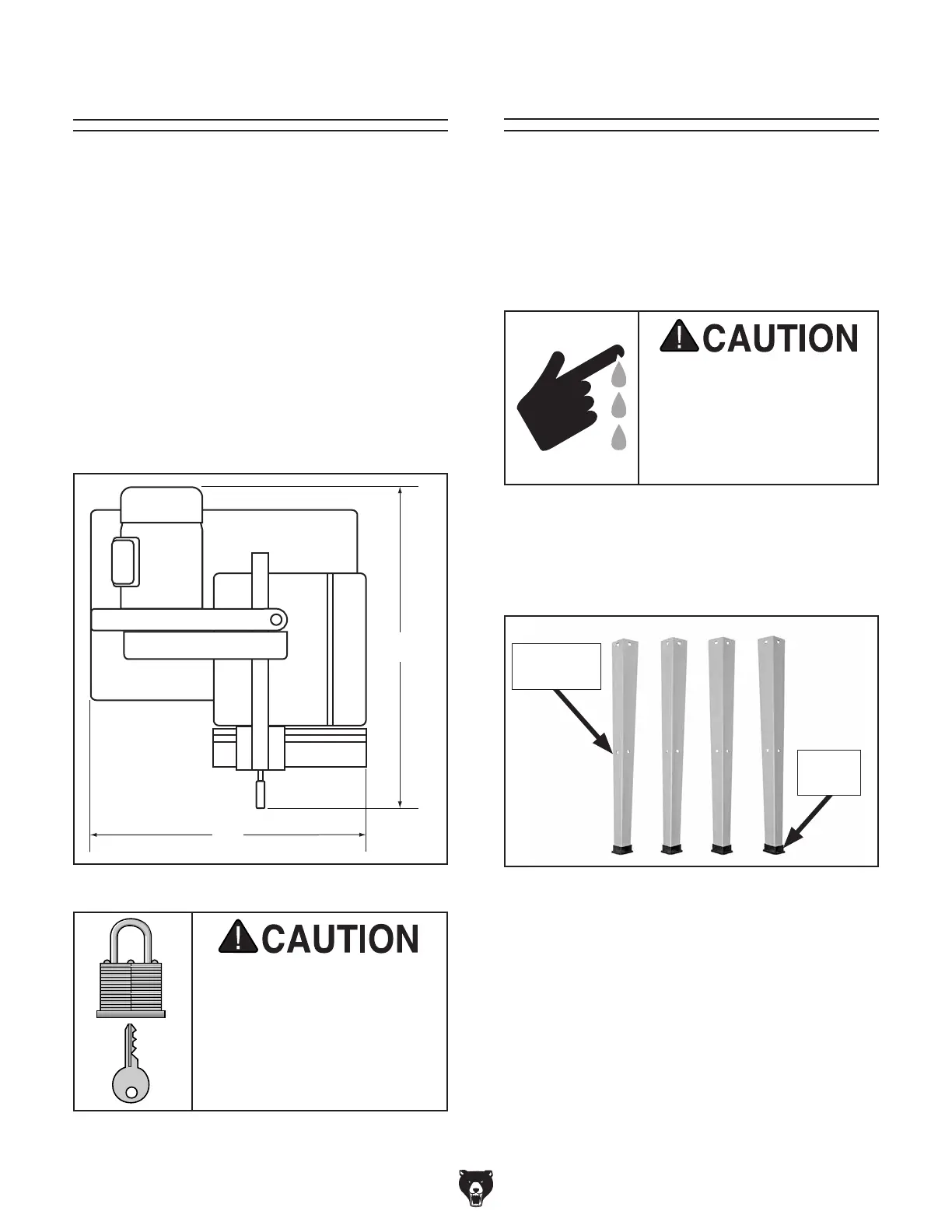

Figure 10. Minimum working clearances.
Children and visitors may be
seriously injured if unsuper-
vised around this machine.
Lock entrances to the shop
or disable start switch or
power connection to prevent
unsupervised use.
Consider anticipated workpiece sizes and addi-
tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Placement Location
Assembly
LACERATION HAZARD!
Bandsaw blades and some
sheet metal parts are
sharp. Wear heavy leather
gloves while handling to
reduce risk of being cut.
To assemble machine:
1.
Locate (4) stand legs (see Figure 11) and
attach (1) rubber foot to bottom of each leg.
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are
cov-
ered or coated in heavy-duty rust preventative (if
applicable).
Figure 11. Rubber feet attached to stand legs.
Stand Leg
(1 of 4)
Foot
(1 of 4)
