Table Tilt
Figure 5. Table tilt controls.
Blade Tension & Tracking
M. Blade Tension Adjustment Knob: Rotate
to adjust blade tension (refer to
Page 22 for
more information).
N.
Blade Tracking Knob: Rotate to adjust
blade tracking (refer to Page 20 for more
information).
O. Blade Tracking Knob Lock Lever: Secures
position of tracking knob.
J. Trunnion w/Table Tilt Scale: Functions as
a tilting base for table. Graduated in degrees
from 0°–45° for setting bevel angle.
K.
Table Tilt Lock Lever: Secures table tilt
angle setting.
L. Table Tilt Indicator: Shows angle of table
tilt.
Guide Post
G. Guide Post Lock Knob: Secures height of
blade guides.
H. Guide Post Adjustment Knob: Rotate
to adjust height of blade guides above
workpiece.
I. Upper Blade Guide: Supports blade above
workpiece during operations.
J
K
L

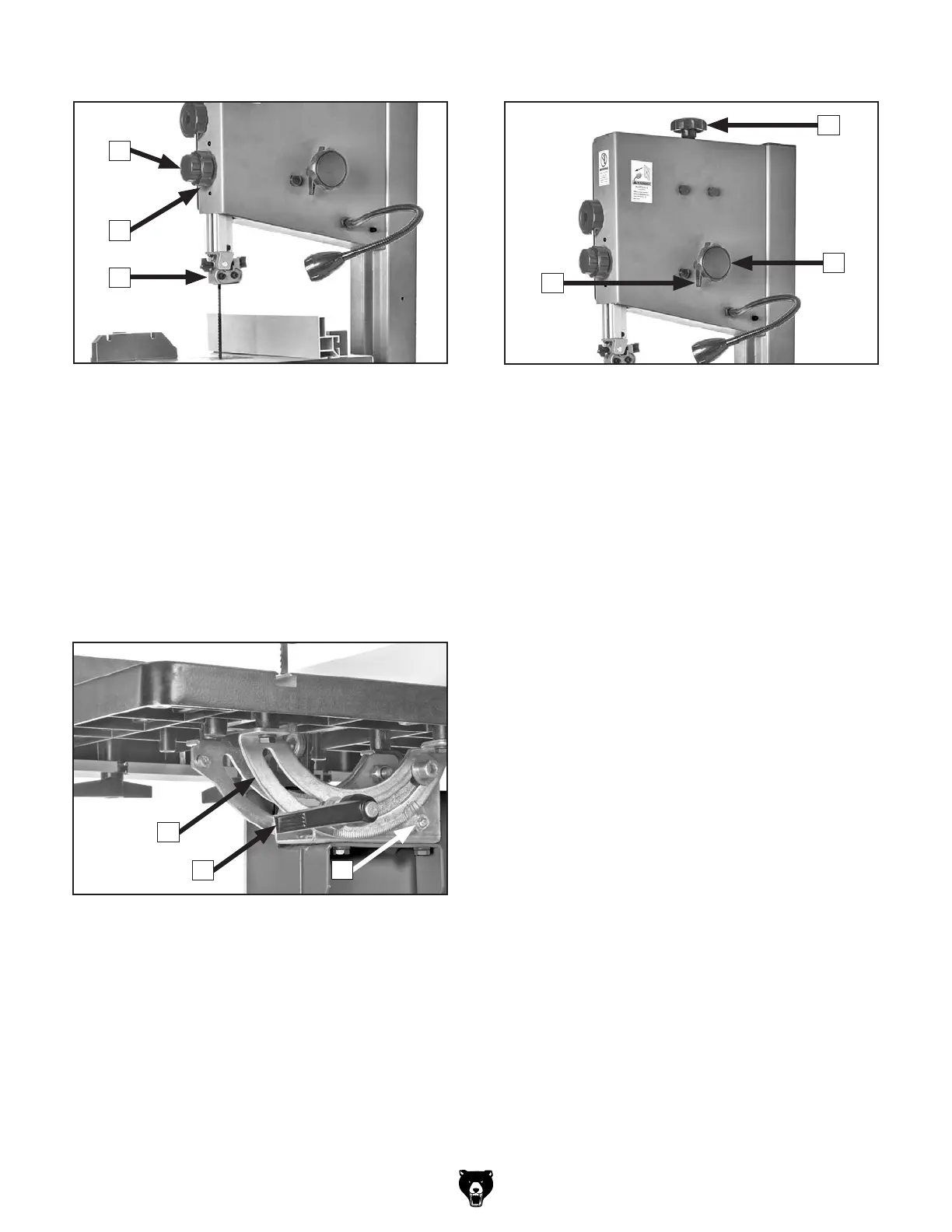

Figure 4. Guide post controls.
G
H
I
Figure 6. Blade tension and tracking controls.
M
N
O
