Figure48
Figure 48.
Figure 47.
Figure46.
)=dhZ
N";^ii^c\
)=dhZ
)8aVbe
'8aVbe
'8aVbe
)m'6YVeiZg
)m'
6YVeiZg
'=dhZ
'=dhZ
'Edgi
'
8aVbeh
<&%&)O$
<&%&)OM
'Edgi
)=dhZ
Id9jhi8daaZXidg
)8aVbe
Figure 46.

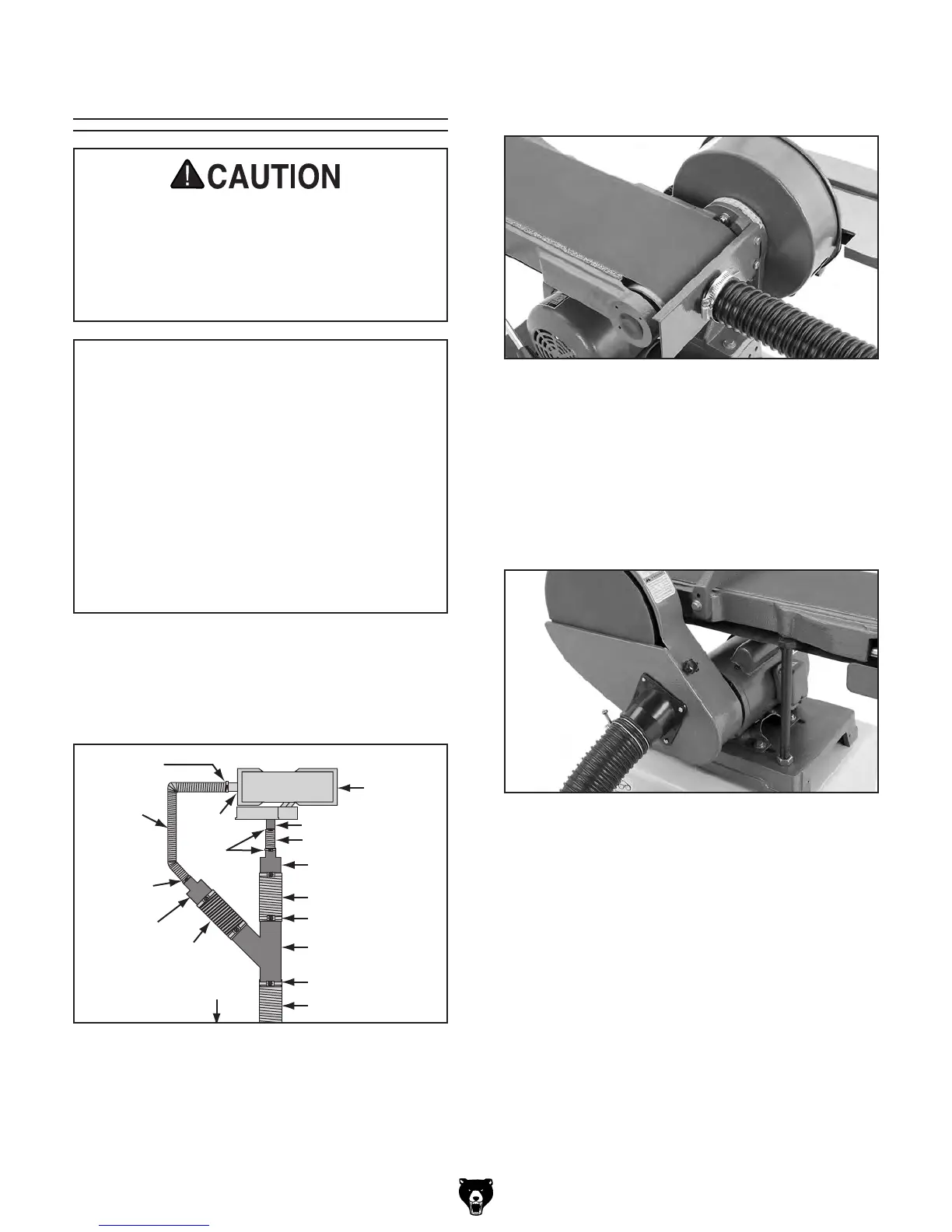

Dust Collection
DO NOT operate the Model G1014Z/G1014ZX
without an adequate dust collection system.
This sander creates substantial amounts of
wood dust while operating. Failure to use a
dust collection system can result in short
and long-term respiratory illness.
Recommended CFM at 2" Dust Port: 100
Recommended CFM at 2
1
⁄2" Dust Port: 150
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col-
lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal-
culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
Note: A tight fit is necessary for proper perfor-
mance.
Figure47
